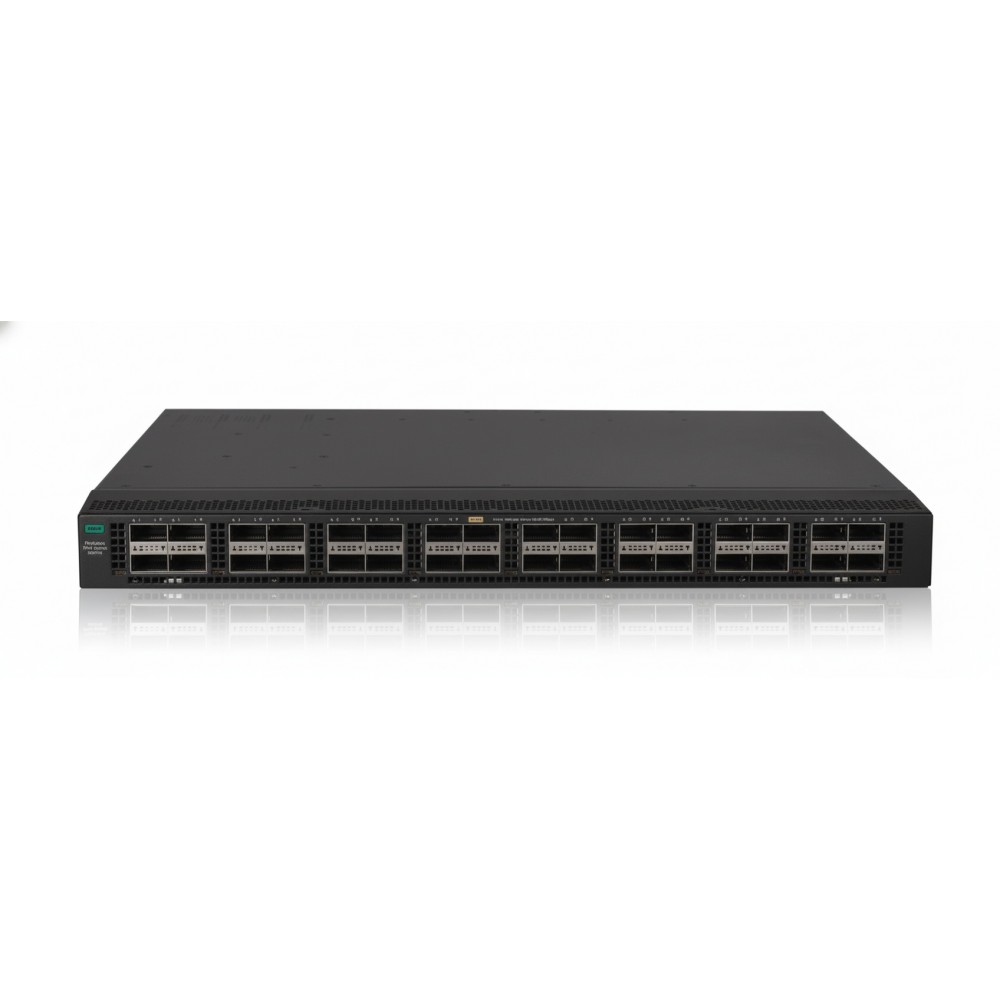

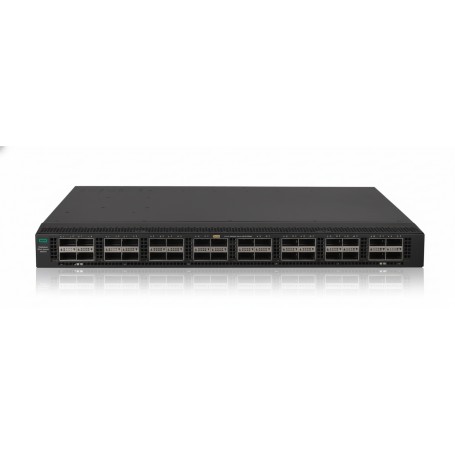

HPE JQ077A 5945 Flex Fabric managed Ethernet switch 32 ports View larger

HPE JQ077A 5945 Flex Fabric managed Ethernet switch 32 ports

JQ077A

New

32‑port 100 GbE QSFP28 Layer‑3 ToR switch
×




Detailed Specifications

HPE JQ077A FlexFabric 5945 32×100Gb QSFP28 Switch

Overview

The HPE JQ077A is a high‑density, ultra-low-latency Top‑of‑Rack (ToR) switch designed for modern data-center environments. It provides 32 QSFP28 ports capable of 100 Gb/s each, and supports multiple speed modes (100G/40G/25G/10G), enabling flexibility across server and uplink links. The switch supports advanced Layer‑3 protocols including VXLAN, EVPN, and MPLS, making it a strong fit for spine-leaf architectures, virtualization, and software-defined networking. It runs on Comware OS and supports Intelligent Resilient Fabric (IRF) for high availability and simplified network operations.

Key Features

  • 32 × 100 GbE QSFP28 ports for high throughput

  • Supports 40/25/10 Gb/s speeds for mixed-network use

  • Ultra-low latency (< 1 µs for small packets)

  • Layer 2/3 features: EVPN, VXLAN, OSPF, BGP, MPLS

  • Stackable (up to 10 switches via IRF) for scalable architectures

Technical Specifications

SpecificationDetails
Brand HPE / Aruba
Part Number JQ077A
Product Type Fixed-port data-center ToR switch
Port Count 32 × QSFP28 + 2 × 1 Gb SFP management
Supported Speeds 100G, 40G, 25G, 10G via QSFP28
Switching Capacity 6.4 Tb/s system
Forwarding Rate 2024 Mpps
Packet Buffer 32 MB
Memory 8 GB SDRAM, 1 GB flash
Stacking Support IRF stacking, up to 10 switches
Operating Temp 0 °C to 45 °C
Power Consumption 650 W typical
Latency < 1 µs (64-byte packets)
MAC Address Table 288,000 entries
