Detailed Specifications

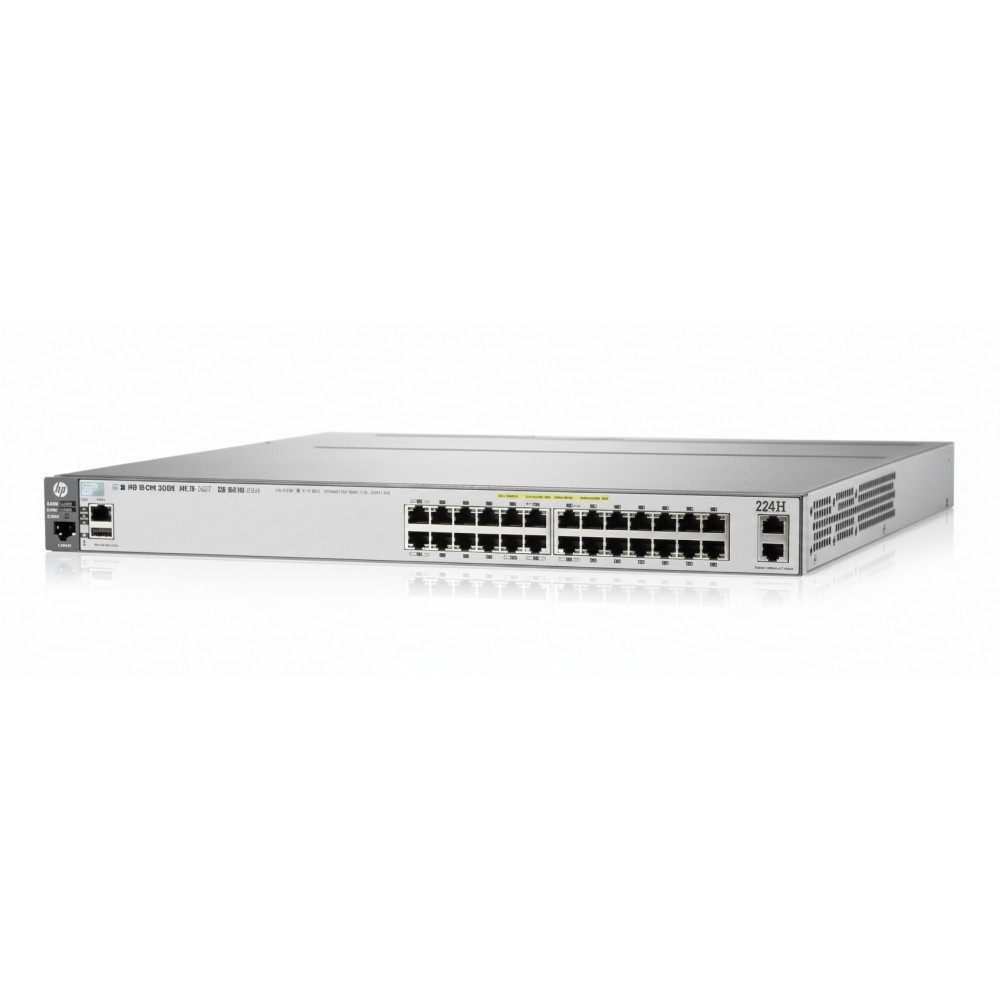

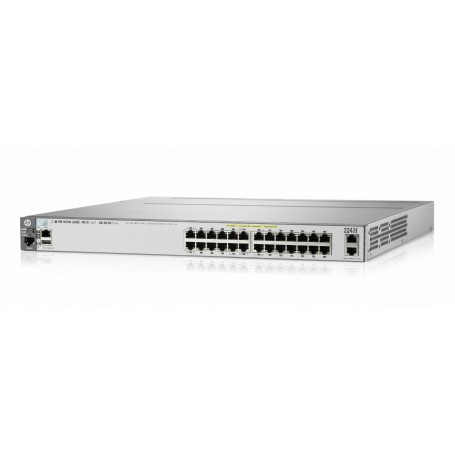

HP J9573A - 24-port Gigabit PoE+ L3 Switch
Overview :
The HP J9573A is a fully managed Layer 3 Gigabit Ethernet switch designed for network engineers and IT infrastructure teams deploying edge or campus access layers. It provides 24 autosensing 10/100/1000 Mbps RJ-45 PoE+ ports to power IP endpoints along with two fixed 10 Gbps SFP+ uplinks to aggregate traffic into the core. Its switching capacity of 88 Gbps and 720 W of PoE budget allow for multiple high-density PoE deployments in a 1U rack footprint. The unit supports resilient stacking and can operate in data centre access or large campus wiring-closet environments. Integration with HP/Aruba network management platforms enables configuration, monitoring and firmware management in larger enterprise networks.
Key Features :
24 × 10/100/1000 PoE+ RJ-45 ports with IEEE 802.3at support
Dual fixed 1000/10000 SFP+ uplink ports
720 W total PoE power budget for endpoint devices
88 Gbps switching fabric delivers full duplex performance
1.7 in (1U) rack-mount chassis with stacking module support
Specifications :
| Specification | Value |
|---|
| Brand | HP |
| Part Number | J9573A |
| Product Type | 24-port Gigabit PoE+ Layer 3 Switch |
| Number of Ports | 24 × 10/100/1000 Mbps RJ-45 PoE+ |
| Uplink Ports | 2 × 1000/10000 SFP+ |
| PoE Power Budget | 720 W |
| Switching Capacity | 88 Gbps |
| Throughput (64-byte packets) | 65.4 Mpps |
| Dimensions (W×D×H) | 18.4 × 17.43 × 1.7 in |
| Weight | 15.9 lbs |
| Operating Temperature | 0° to 55 °C (max 45 °C with SFP+) |
| Storage Temperature | -40° to 70 °C |
| Operating Humidity | 15% to 95% @ 40 °C, non-condensing |
| Altitude | Up to 3 km (10,000 ft) |
