HPER8Q68A

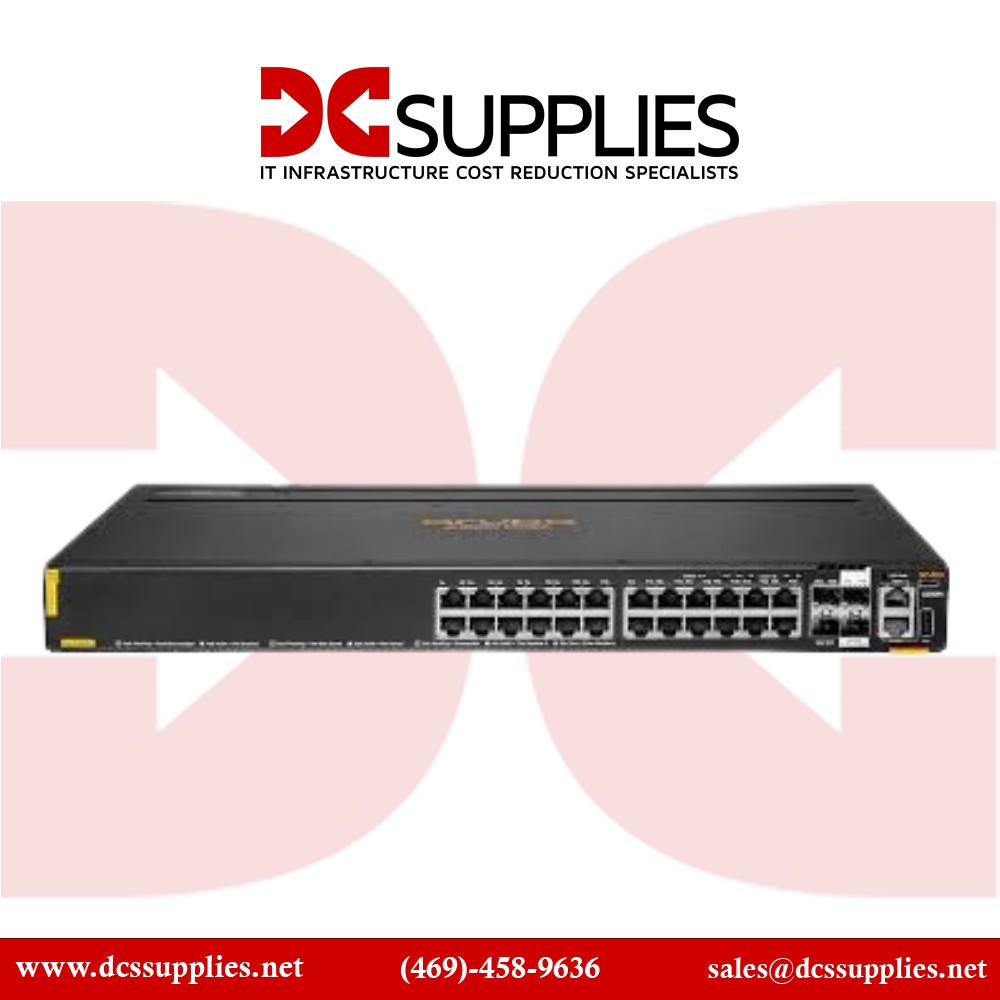

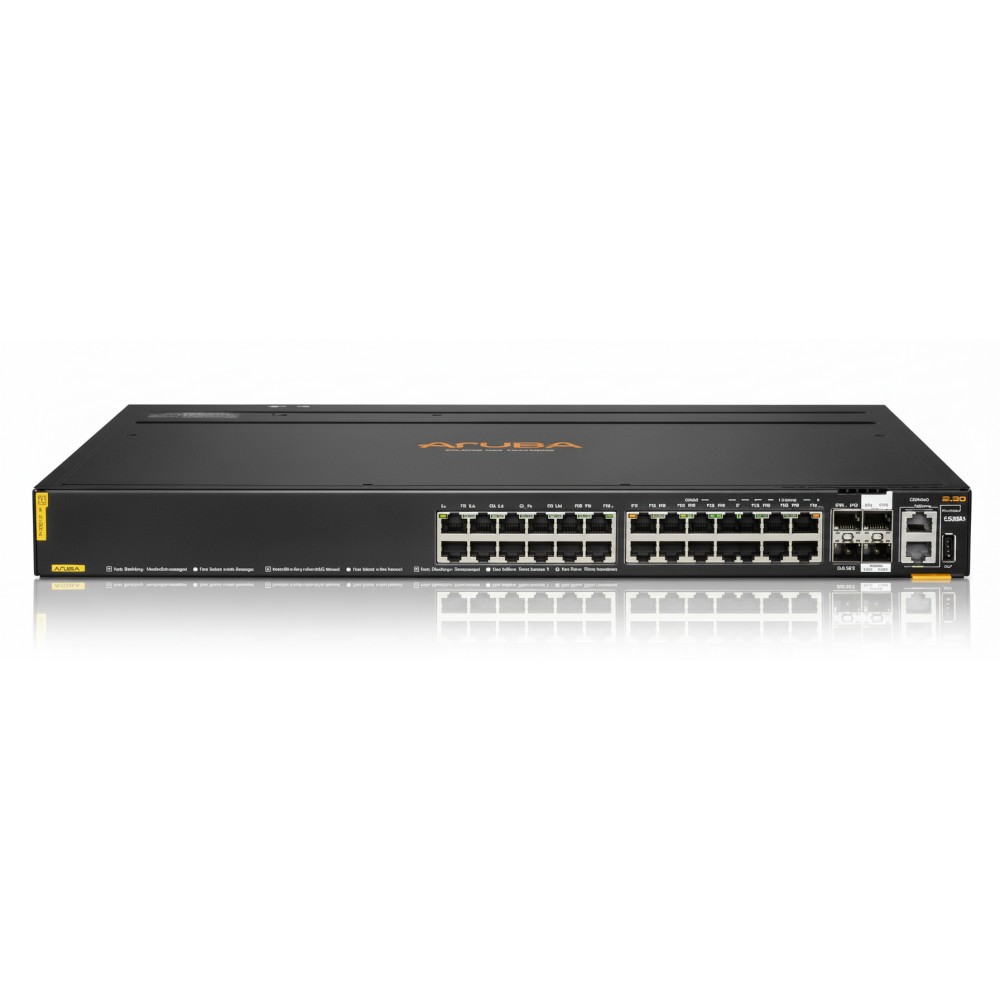

ArubaCX 6200M 24G Class 4 PoE 4×SFP+ Managed Ethernet Switch

The HPEArubaR8Q68A CX 6200M is a stackable Layer 2/3 access switch offering 24 auto-sensing Gigabit Ethernet ports with full ClassClass 4 PoE (up to 740 W total) and four fixed 1G/10G SFP+ uplink/stacking ports. Built on ArubaGen7 ASIC architecture, the switch is designed for enterprise branch, campus, and SMB environments seeking scalable, high-performance edge solutions with integrated PoE for devices like wireless APs and IP cameras. With advanced stacking, routing, security, QoS, and automation features, it enables streamlined deployment and centralized network segmentation and management

Features

This modular CX 6200M switch delivers non-blocking wire-rate forwarding across all ports. With switching capacity around 128 Gbps and throughput of ~95.2 Mpps, latency remains low×approximately 2.28 µs at 1 Gbps and 1.46 µs at 10 Gbps.It fully supports ArubaVirtual Stacking Framework (VSF) enabling up to eight units to behave as one logical switch, simplifying management and increasing resilience. With Aruba-CX, it supports robust Layer 3 features such as static routing, OSPF, and ECMP, and integrates deeply with ArubaNetwork Analytics Engine (NAE) for automated telemetry and troubleshooting.

Advanced Options

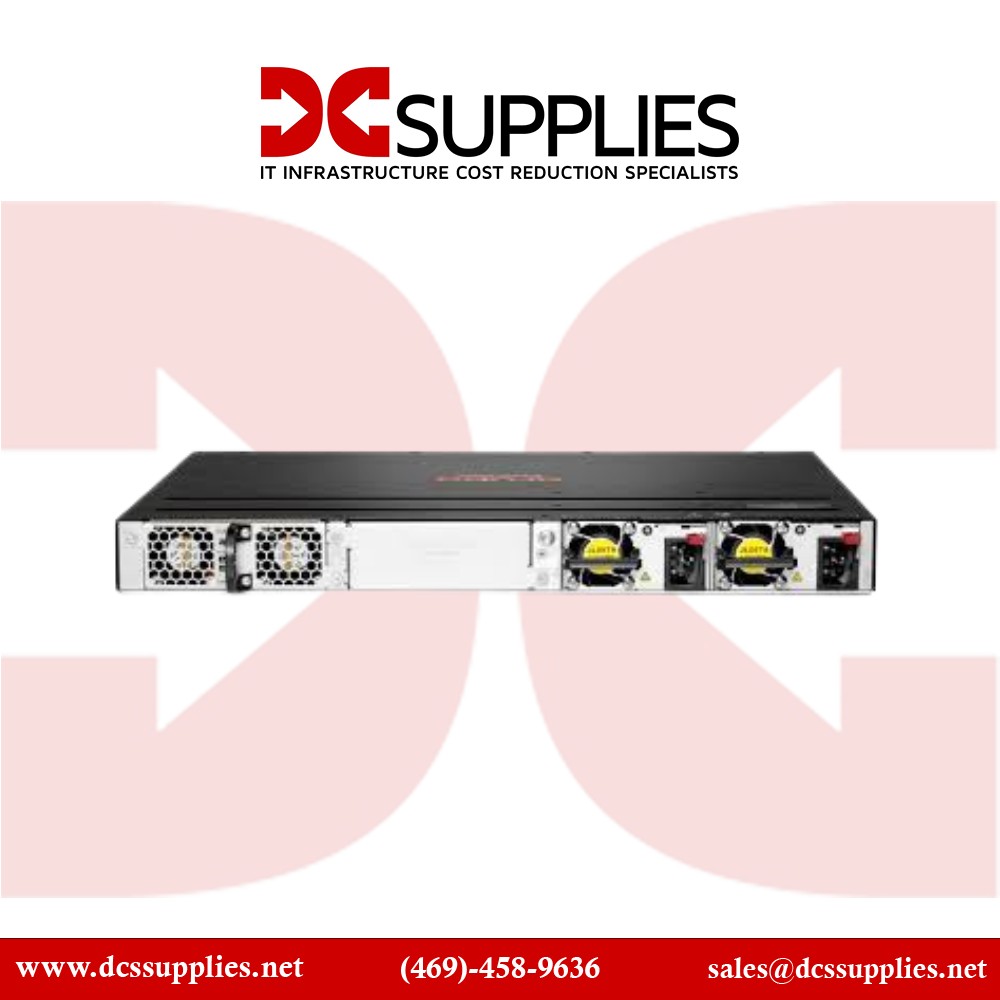

Engineered for continuous uptime and scalable network deployment, this switch includes fan-cooled modular design and supports hot-swappable redundant power supplies (1+1 optional) and fan trays. It weighs approximately 5.83 kg and conforms to operating environments between 0 °C and 45 °C with non-condensing humidity.

Product Key Features

• 24 × 10/100/1000 PoE+ RJ-45 ports (Class 4)


• 4 × 1G/10G SFP+ uplink or stacking ports


• Maximum PoE budget of 740 W

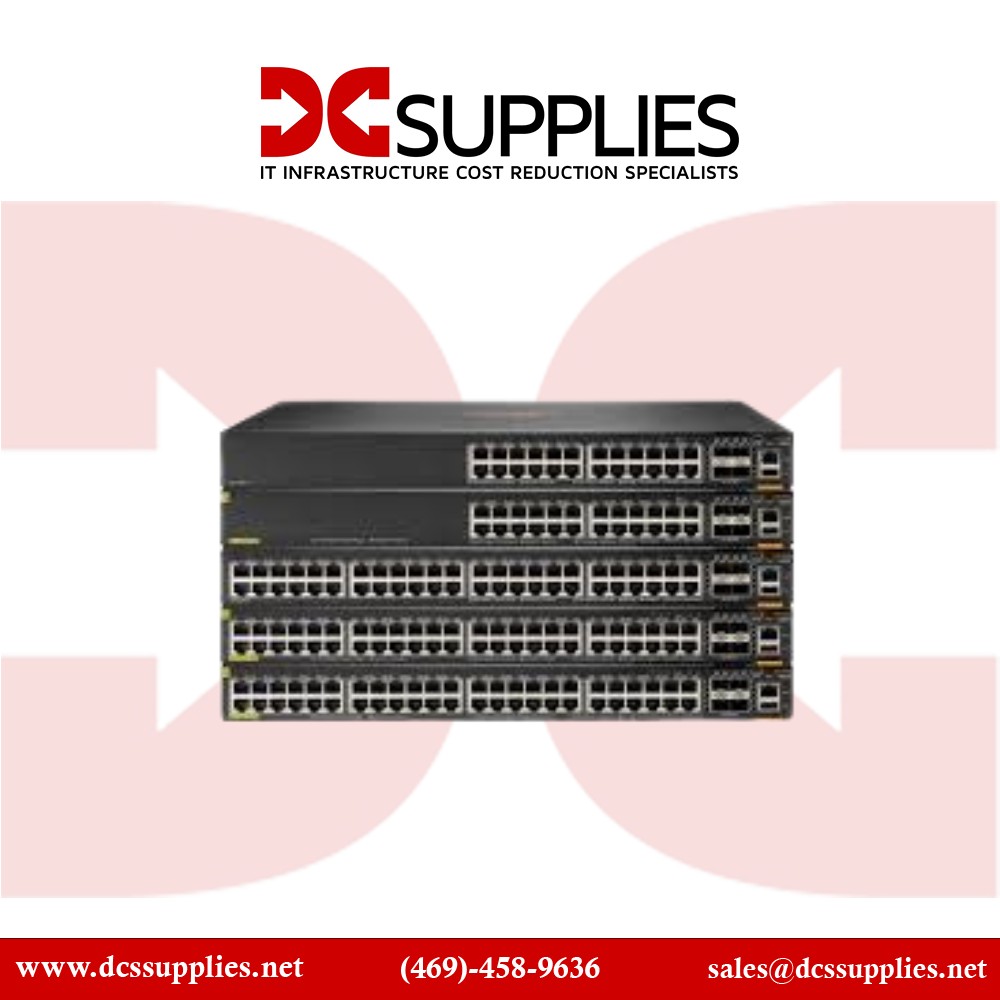

• ArubaVSF stackable to 8 units with up to 40 Gbps stacking bandwidth


• Layer 2/3 features including VLAN, ACL, QoS, routing, VXLAN


• Aruba-CX programmable OS with automation and analytics support

---

Reliability & Performance

With a MAC table up to 32K entries, 8 MB packet buffer, and robust ACL/firewall enforcement, it maintains flow control even under bursty traffic conditions.Kampala

Key Features :

• • 24 × 1 GbE PoE+ RJ-45 ports, Class 4

  • 4 × SFP+ ports (1 Gb / 10 Gb) for uplink or stacking

  • Up to 740 W PoE power budget

  • Stacking via VSF up to 8 switches

  • Layer 2/3 features: VLAN, QoS, ACL, IPv4/IPv6 routing, VXLAN

  • Aruba-CX with automation, NAE telemetry, REST API

  • Hot-swappable redundant power and fan modules (optional redundancy)

  • ARM-based architecture with ~1.8 GHz CPU, 8 GB RAM

  • Jumbo frames up to 9,220 bytes

  • Advanced security: SSH, RADIUS, TACACS+, SNMPv3, flow control

Specification	Details
Model Number	R8Q68A
Product Type	CX 6200M 24G Class 4 PoE Managed Ethernet Switch
RJ-45 Ports	24 × 10/100/1000BASE-T (PoE+)
SFP+ Uplink Ports	4 × 1G/10G SFP+ (for uplink or stacking)
PoE Budget	740 W (IEEE 802.3at Class 4)
Switching Capacity	~128 Gbps
Forwarding Rate	~95.2 Mpps
Latency	~2.28 µs (1 Gb), ~1.46 µs (10 Gb)
Packet Buffer	~8 MB
MAC Address Table	~32,000 entries
CPU / Memory	ARM 1.8 GHz; 8 GB DDR4 RAM
Routing/Layer Support	VLANs, ACL, QoS, IPv4/IPv6, static, OSPF, ECMP
Stacking Protocol	ArubaVSF up to 8 units (40 Gbps stack)
Power & Cooling	Modular PSUs & fan trays; optional redundancy
Dimensions	44.2 × 38.5 × 4.39 cm (W×D×H)
Weight	~5.83 kg
Operating Temperature	0 °C to 45 °C (non-condensing humidity)
