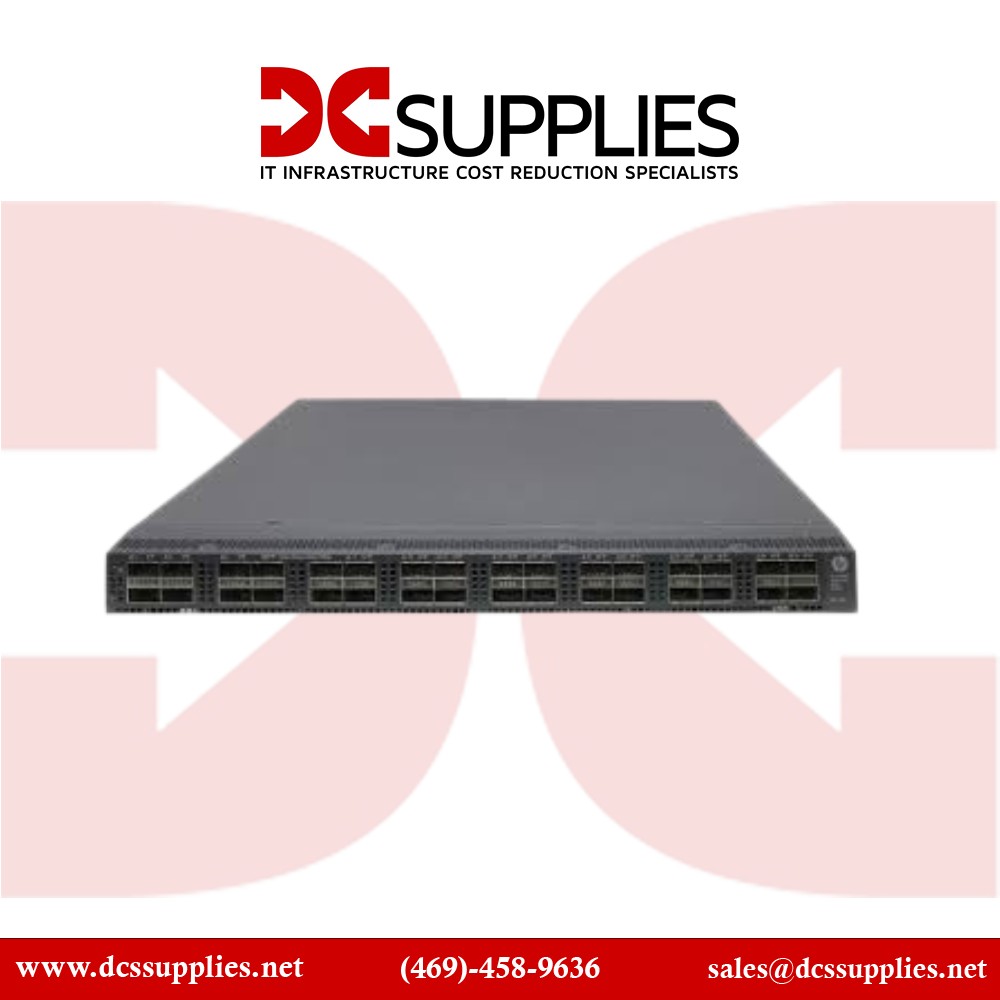

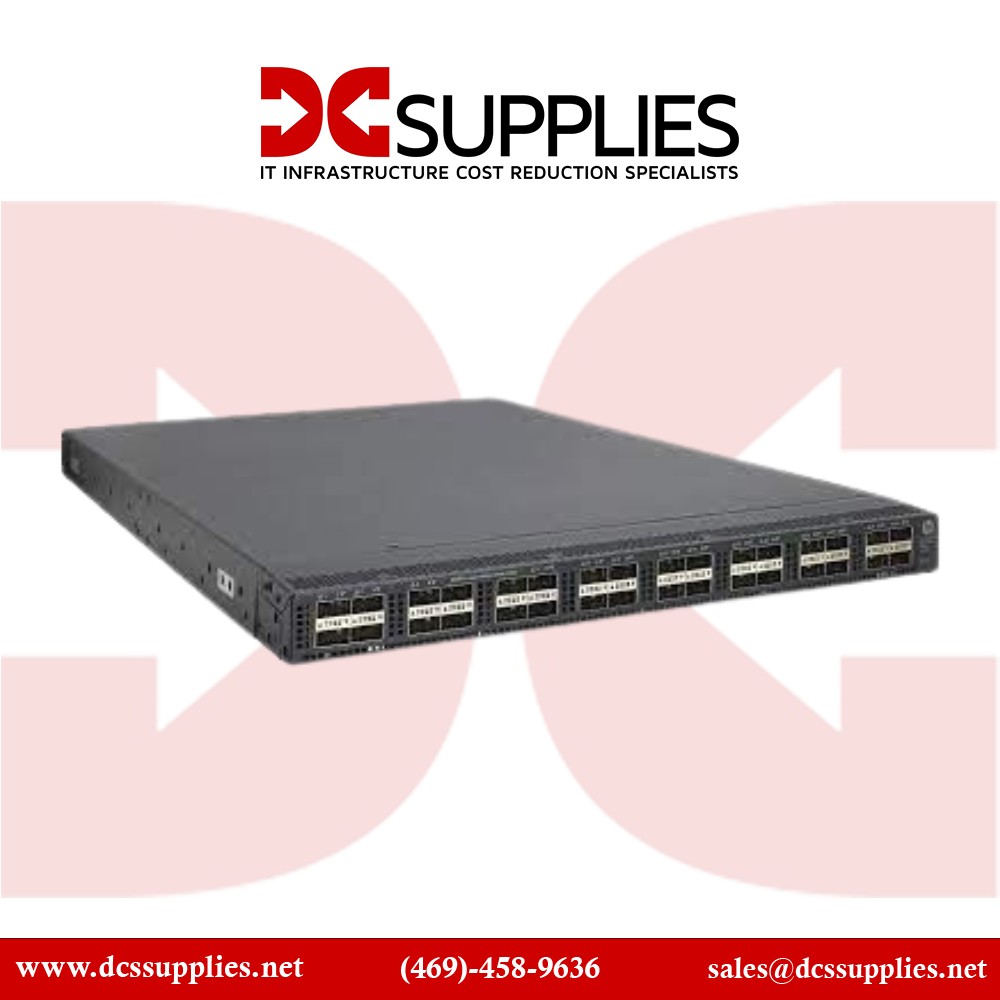

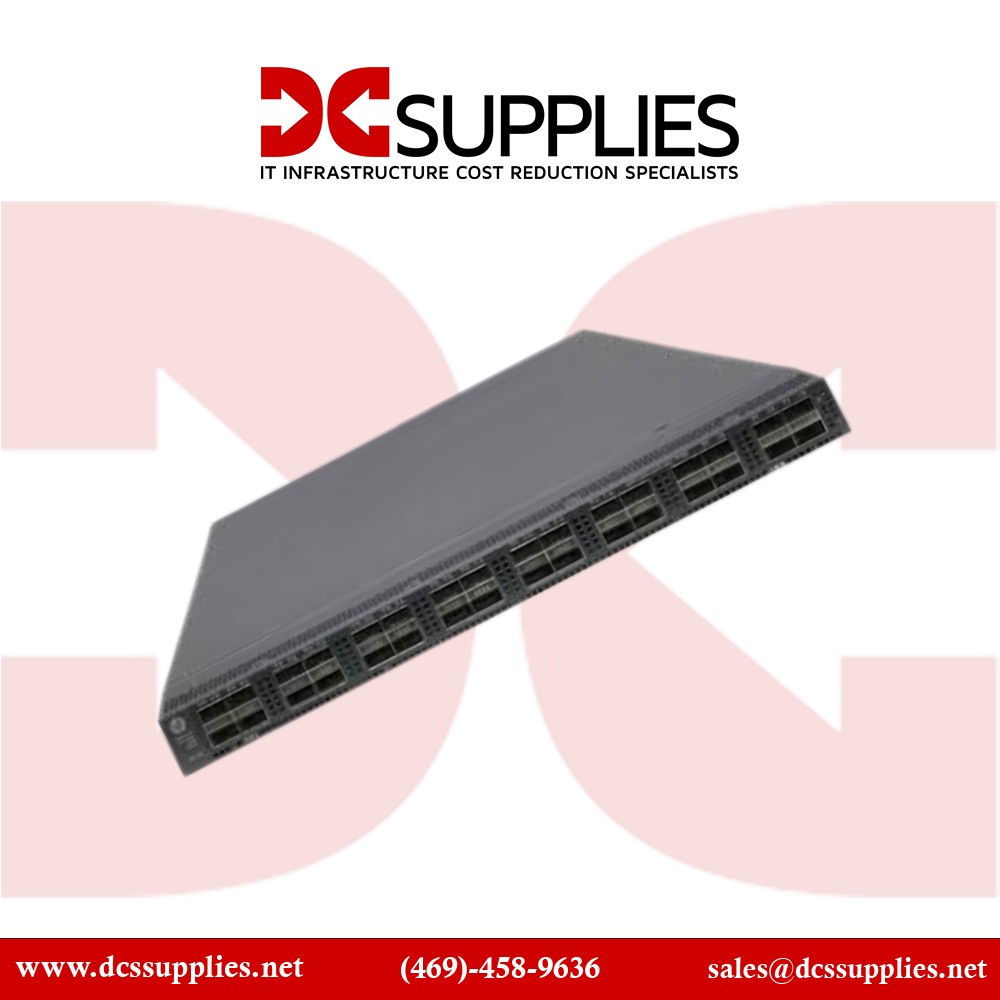

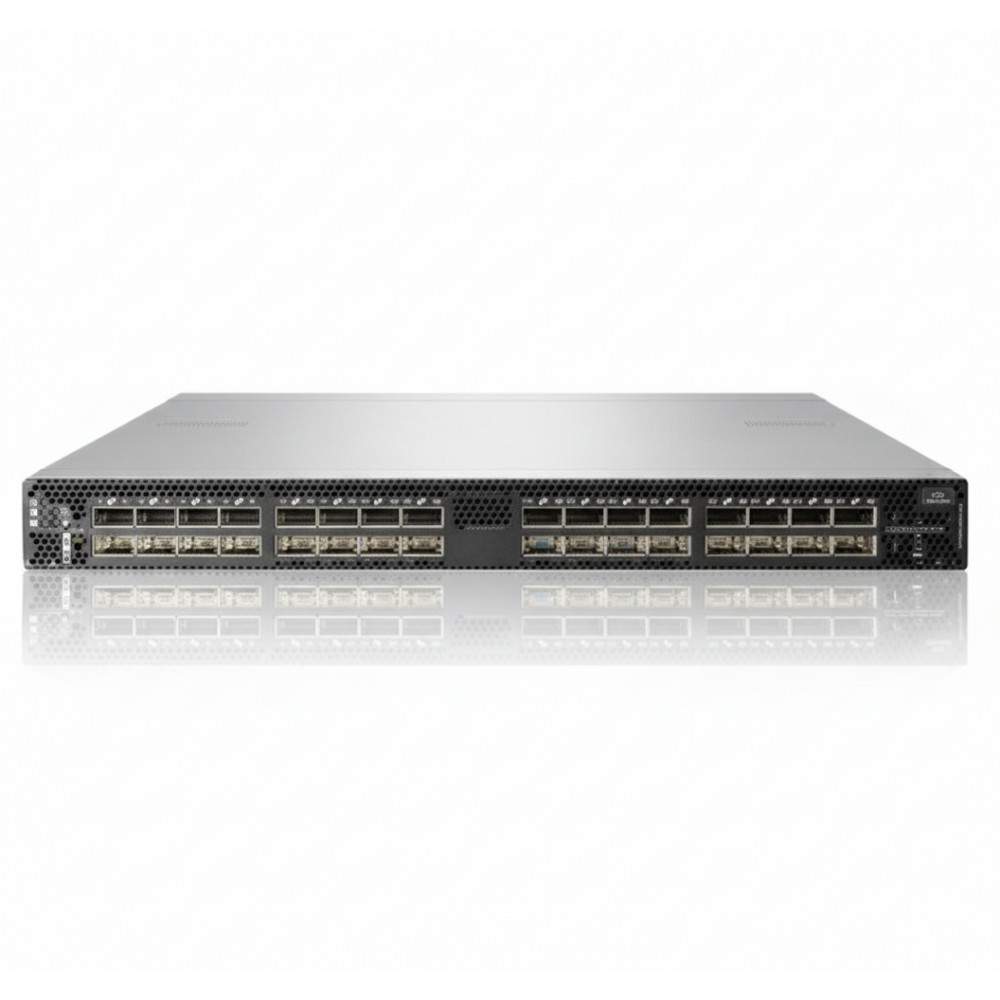

HPE P17518-001 SN3700CM 32G Managed ethernet Switch View larger
Previous Next

HPE P17518-001 SN3700CM 32G Managed Ethernet Switch

New

100 GbE 32‑port QSFP28 managed Layer...

×




  • New

Detailed Specifications

HPE P17518-001

SN3700cM 100 GbE 32QSFP28 ONIE Power‑to‑Connector Airflow Managed Ethernet Switch

The HPE P17518‑001 SN3700cM is a high‑density, low‑latency 32‑port QSFP28 Ethernet switch offering wire‑rate performanceacross all ports. Operating at 100 GbE per port, this 1 RU airflow‑optimized switch is ideal for Top‑of‑Rack and storage‑oriented data center environments. Compatible with NVIDIA Cumulus Linux via ONIE, it delivers flexible multi-speed configurations and supports breakout cabling for 10G/25G deployments. Engineered for flash storage acceleration and virtualized environments, this platform delivers ultra-reliable switching with zero packet loss under mixed-speed, mixed‑size traffic loads.

Features

Architected for modern server and storage networks, the SN3700cM supports configurable port speeds—from 10/25 GbE via breakout cables up to 200 GbE per port using QSFP56 modules . Delivering up to 6.4 Tbps switching capacity across 32 QSFP28 ports, it guarantees wire‑rate forwarding under all traffic conditions with zero packet loss—even at mixed frame sizes and speed mixes . Layer 3-routing support includes ECMP, BGP, OSPF, RIP, VRF, and data center bridging features like PTP, DCBx, FCoE, and RDMA over Converged Ethernet (RoCE)

Advanced Options

Engineered for demanding storage and compute fabrics, the SN3700cM delivers robust enterprise-grade performance even under heavy mixed workloads. With 6.4 Tbps switch capacity and throughput up to ~4.76 Bpps, it handles full-mesh, bursty, and latency-sensitive flows with no packet loss

Product Key Features

  • 32 × fixed QSFP28 ports supporting 100 GbE (configurable down to 10/25/40 GbE via breakout)

  •  Wire-rate, zero-loss traffic forwarding across all ports and packet sizes

  •  Layer 3 features: ECMP, BGP, OSPF, RIP, VRF, IPv6, FCoE, RoCE

  •  Ultra-low latency (<300 ns port-to-port) for flash storage acceleration

  •  ONIE boot loader with NVIDIA Cumulus OS support

  •  Hot-swappable redundant power supplies & fan trays; reversible airflow design

Reliability & Performance

Its counter‑rotation airflow and redundant power/fan modules support continuous operation in dense configurations. The support for data center features—such as RDMA, PTP, deep buffers, jumbo frames and FCoE—ensures low-latency, lossless transport critical for high-performance storage and virtualization environments

Key Features :

  • 32 × QSFP28 ports (100 GbE native), breakout to 10/25/40 GbE

  • 6.4 Tbps non-blocking switching capacity

  • Port‑to‑port latency ≦300 ns

  • Supports Layer 3 routing and ECMP scaling

  • Data center features: FCoE, RoCE, DCBx, PTP, jumbo frames

  • ONIE boot loader, NVIDIA Cumulus Linux compatibility

  • CLI, GUI, SNMP v1/2c/3, SSH, JSON, YAML management

  • Redundant PSUs and fan trays, reversible airflow

  • Deep buffer architecture for burst resilience

  • Compact 1 RU rack-mount chassis

SpecificationDetails
Model Number P17518‑001 (SN3700cM)
Product Type 32‑port 100 GbE QSFP28 L2/L3 Managed Ethernet Switch
Ports 32 × QSFP28 (native 100 GbE; breakout to 10/25/40 GbE)
Switching Capacity 6.4 Tbps
Forwarding Rate ~4.76 Bpps (64‑byte frames)
Latency <300 ns port‑to‑port
Packet Buffer Deep buffering architecture
Supported Speeds 10/25/40/50/100/200 GbE
Routing Support ECMP, BGP, OSPFv2, RIP, VRF, IPv6
Data Center Features FCoE, RoCE v2, DCBx, PTP
Management CLI, GUI, SNMP v1/2c/3, SSH, JSON/REST API
Operating System Support ONIE loading NVIDIA Cumulus, Linux, other NOS
Power/Cooling Dual redundant PSUs; hot-swappable fans; reversible airflow
Form Factor 1 RU rack‑mount (front‑to‑back airflow)
Jumbo Frame Support Up to 9,216 bytes
Operating Temp / Humidity 0 °C to 45 °C; humidity non-condensing
Weight ~11 kg / 24.5 lb
