Detailed Specifications

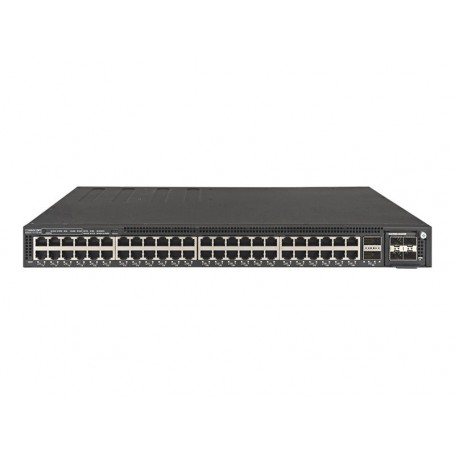

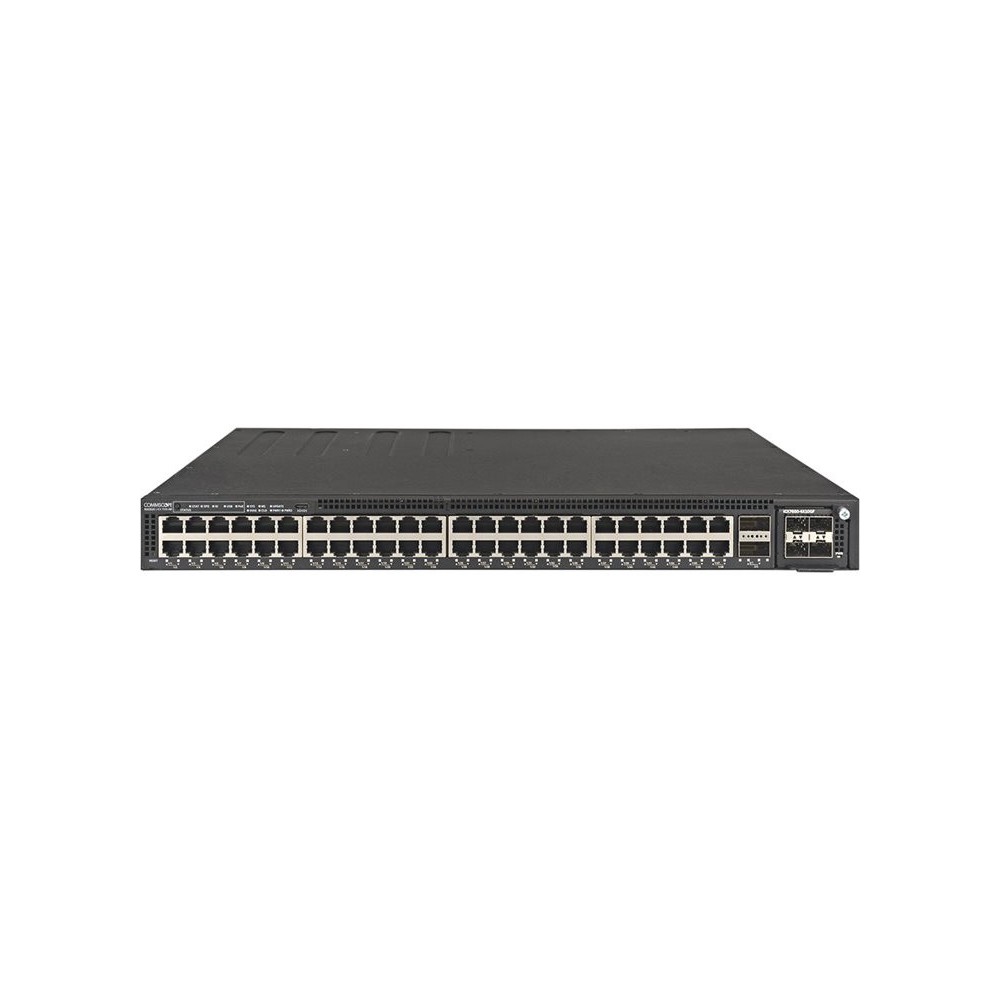

Ruckus ICX7450-48P – 48-Port Managed PoE+ Switch
Overview :
The Ruckus ICX7450-48P is a high-performance, stackable Layer 3 managed switch designed for enterprise edge deployments requiring robust Power over Ethernet (PoE+) capabilities. Equipped with 48 10/100/1000 Mbps RJ-45 ports, it delivers up to 30W per port, ideal for powering devices such as IP phones, wireless access points, and security cameras. The switch supports both 10 GbE SFP+ and 40 GbE QSFP+ uplinks, providing flexible connectivity options for high-speed backbone or aggregation links. Its modular design allows for future scalability, accommodating up to 12 switches in a stack with a combined switching capacity of up to 336 Gbps. With features like front-to-back airflow, redundant hot-swappable power supplies, and fan trays, the ICX7450-48P ensures reliable operation in demanding environments.
Key Features :
48 PoE+ Ports: Delivers up to 30W per port for powering devices.
High-Speed Uplinks: Includes 4×10 GbE SFP+ and 2×40 GbE QSFP+ ports.
Stackable Design: Supports stacking of up to 12 units for scalability.
Redundant Power: Equipped with dual hot-swappable power supplies.
Front-to-Back Airflow: Ensures efficient cooling in rack-mounted installations.
Specifications :
| Specification | Details |
|---|
| Brand | Ruckus |
| Part Number | ICX7450-48P |
| Product Type | Managed Layer 3 Switch |
| Ports | 48×10/100/1000 Mbps RJ-45 PoE+ |
| Uplink Ports | 4×10 GbE SFP+, 2×40 GbE QSFP+ |
| PoE Budget | Up to 1,440W (30W per port) |
| Stacking Capacity | Up to 12 units |
| Switching Capacity | Up to 336 Gbps |
| Forwarding Rate | 250 Mpps |
| MAC Address Table Size | 32,768 entries |
| Jumbo Frame Support | Up to 9,216 bytes |
| Latency | Average 1.3 µs |
| Power Supply | Dual hot-swappable AC/DC |
| Fan Trays | Dual hot-swappable |
| Airflow Direction | Front-to-back |
| Dimensions (H x W x D) | 1.75" x 17.3" x 15.5" |
| Weight | 13.2 lbs |
