Detailed Specifications

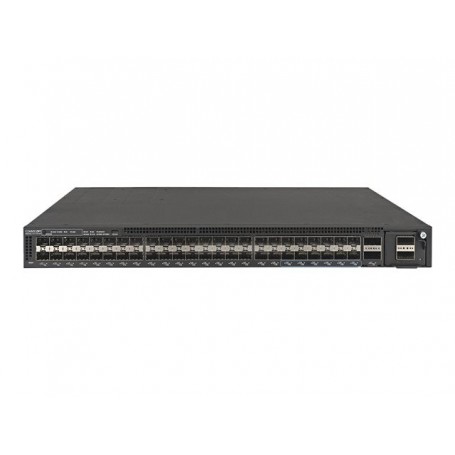

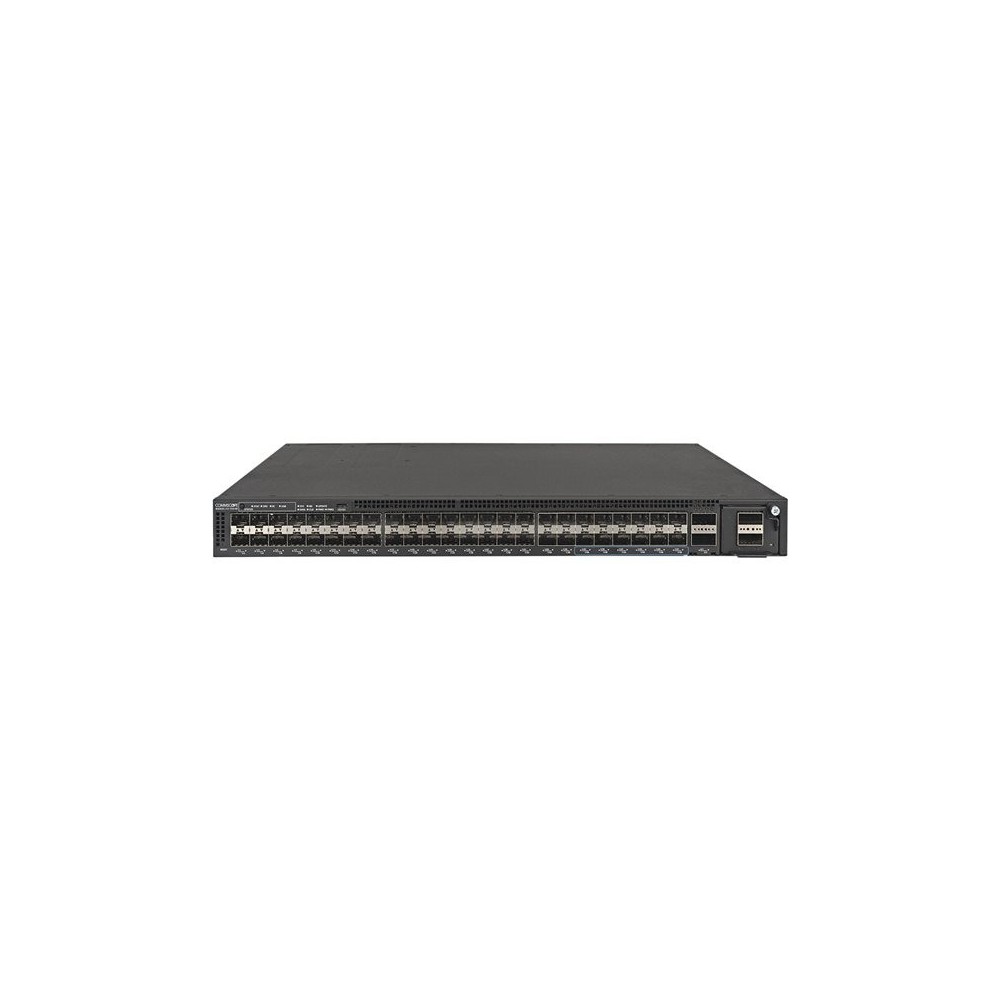

Ruckus ICX7550-48F – Entry-Level Aggregation Switch 48-Port SFP/SFP+
Overview :
The Ruckus ICX7550-48F is a fixed 1RU Ethernet switch designed for aggregation and edge deployments where full-fiber connectivity is desired. It offers 48 SFP (1 Gb) ports plus 12 SFP+ (10 Gb) ports built into the 48-port variant, providing high-density fiber access for campus or data centre networks. With a switching capacity of 912 Gb/s and support for stacking up to 12 units in a single fabric, it enables scalable expansion without chassis complexity. Designed for environments that demand robust Layer 3 functionality, the ICX7550-48F supports static routing, RIP, OSPF and BGP, as well as MACsec encryption. The unit does not include PoE power budget, making it suited for fiber aggregation rather than power-driven access deployment. Dual redundant hot-swappable power supplies and reversible airflow options provide service-grade resilience.
Key Features :
48 SFP 1 Gb down-links and 12 SFP+ 10 Gb uplinks
912 Gb/s switching capacity and 2.4 Tb/s stack bandwidth
Hot-swap dual power supplies with redundant capability
MACsec support with full chain encryption capability
Reversible front-to-back or back-to-front airflow design
Specification :
| Specification | Detail |
|---|
| Brand | Ruckus |
| Part Number | ICX7550-48F |
| Product Type | Fiber aggregation Ethernet switch |
| Switching Capacity | 912 Gb/s |
| 1 GbE SFP Ports | 48 maximum |
| 10 GbE SFP+ Ports | 12 maximum |
| 40 GbE QSFP Ports | 4 maximum |
| 100 GbE QSFP28 Ports | 2 maximum |
| Maximum Stack Size | 12 units |
| Aggregate Stack Bandwidth | 2400 Gb/s |
| PoE/PoE+ Support | None |
| Reversible Airflow Option | Yes |
| Operating Temperature | 32 °F to 104 °F (0 °C to 40 °C) |
| Dimensions (H×W×D) | 1.73 in × 17.32 in × 16.00 in |
| Weight | 14.15 lbs |
| Redundant Power Option | Yes (dual AC supplies) |
