Detailed Specifications

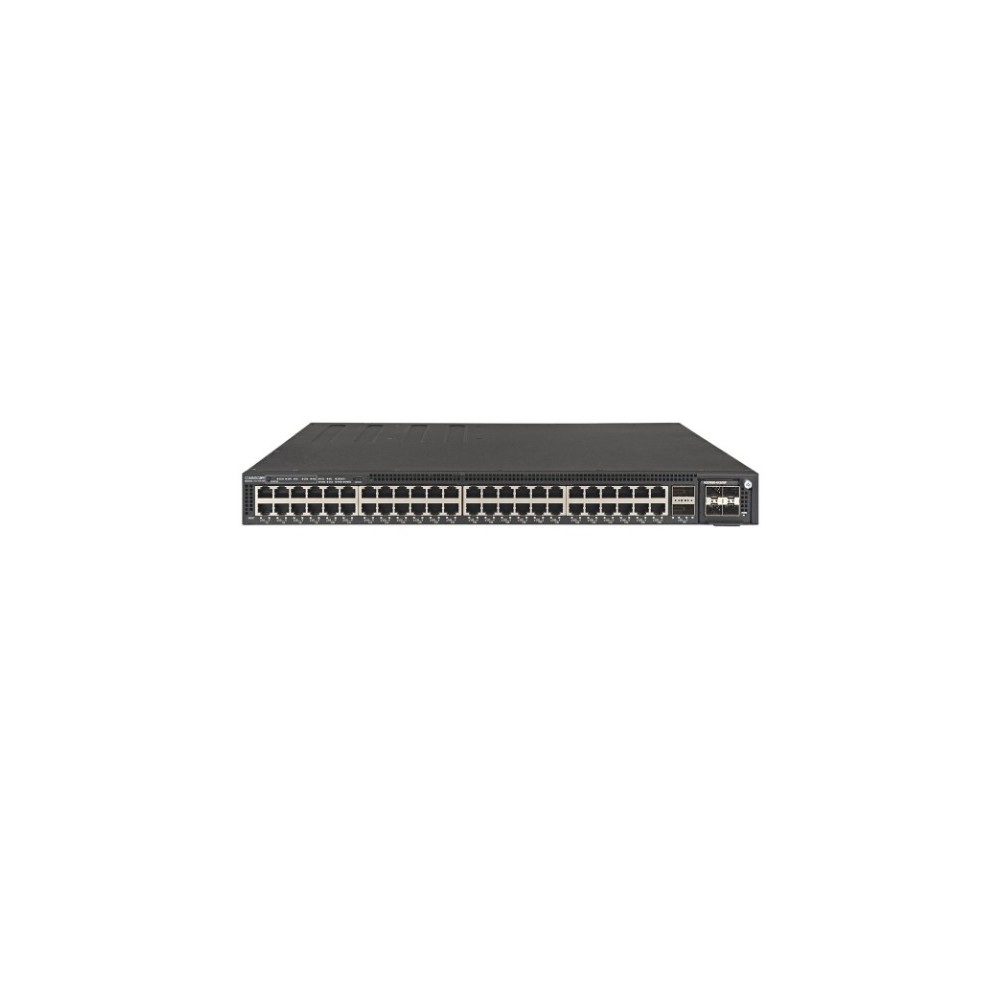

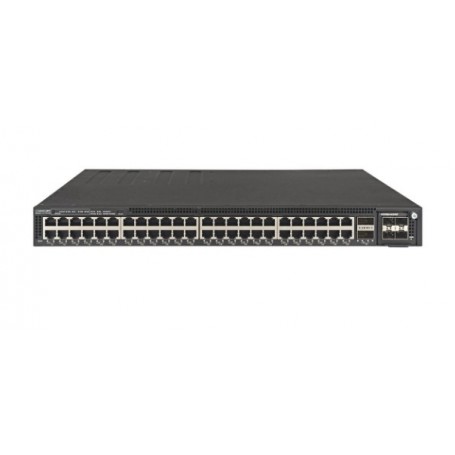

RUCKUS ICX7550-48 – 48-port Gigabit Access Switch
Overview :
The RUCKUS ICX7550-48 is a managed Ethernet switch offering 48 RJ-45 1 Gb/s ports paired with advanced stacking and Layer 3 capabilities for enterprise and campus networks. It addresses the need to consolidate access-layer connectivity while enabling uplinks of 10 Gb/s and higher through additional SFP/SFP+ ports. Its design supports stacking up to 12 units with an aggregate bandwidth of 960 Gb/s, making it suitable for mid-size aggregation or access deployments in campus wiring closets or edge data centres. With full Layer 3 routing (OSPF, BGP, VRF) plus hardware-assisted features such as MACsec and Energy Efficient Ethernet, the unit fits organisations migrating to Wi-Fi 6/6E infrastructure or converged access environments. Redundant power supplies and reversible airflow options enhance deployment flexibility in varied rack or cabinet configurations.
Key Features :
48 × 1 Gb RJ-45 ports with 4 × 10 Gb SFP+ uplinks
High-performance stacking up to 12 units (960 Gb/s)
Full Layer 3 routing: OSPF, BGP, VRF support
MACsec encryption hardware support on ports
Reversible front-to-back airflow with redundant PSU option
Specifications :
| Specification | Detail |
|---|
| Brand | RUCKUS |
| Part Number | ICX7550-48 |
| Product Type | Managed 48-port 1G Ethernet Switch |
| Maximum Switching Capacity | 416 Gb/s |
| Ports – 1 Gb RJ-45 | 48 |
| Ports – 1 Gb SFP | Up to 4 |
| Ports – 10 Gb SFP+ | Up to 4 |
| Stackable Units Maximum | 12 |
| Aggregate Stack Bandwidth | 960 Gb/s |
| PoE/PoE+ Support | No |
| Layer 3 Routing Support | Yes (STATIC, RIP, OSPF, BGP, VRF) |
| MACsec Hardware Support | Yes |
| Operating Temperature | 32 °F to 104 °F (0 °C to 40 °C) |
| Dimensions (H × W × D) | 1.73 in × 17.3 in × 20.9 in |
| Weight | 20.9 lbs |
