Detailed Specifications

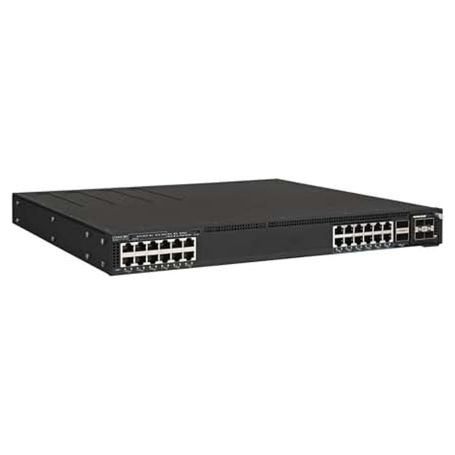

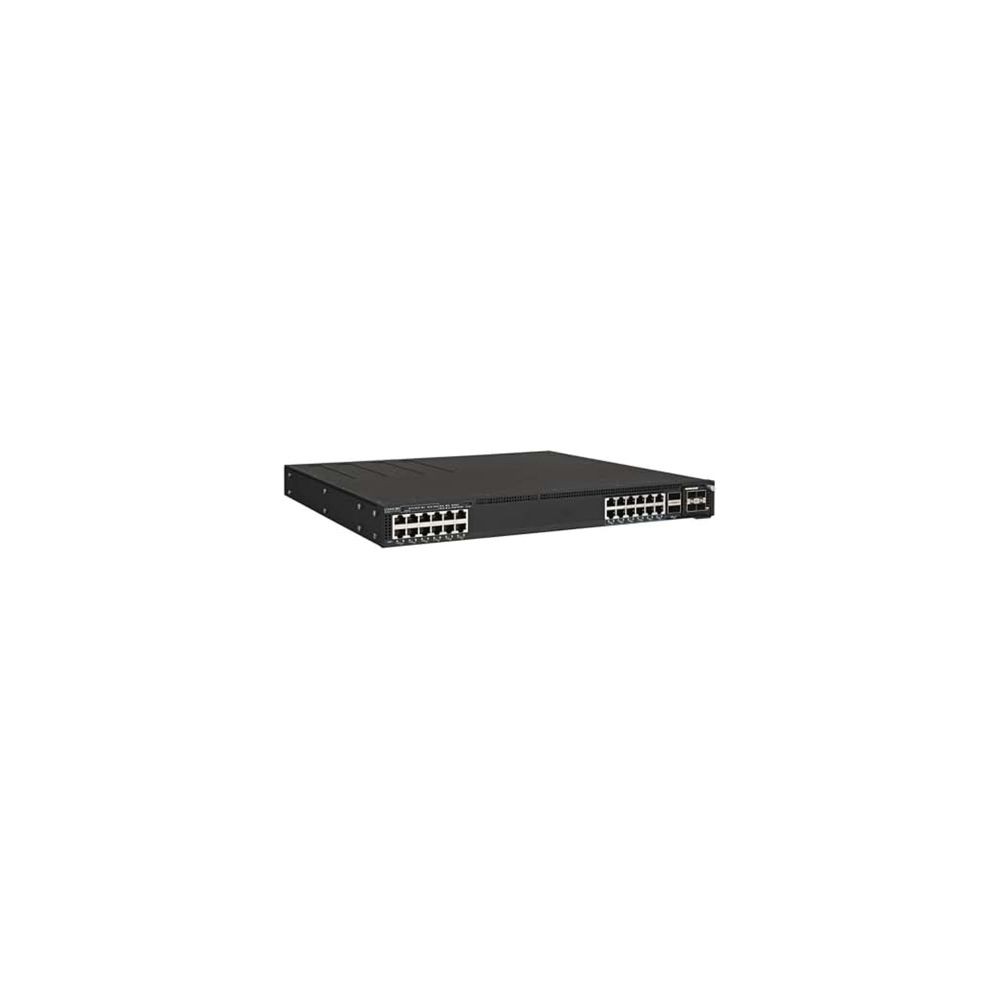

RUCKUS ICX7550-24ZP-E2-R3 – Multigigabit PoE++ Access Switch
Overview :
The RUCKUS ICX7550-24ZP-E2-R3 is a 24-port managed access switch designed for enterprise campus edge deployments where multigigabit access and high PoE power delivery are required. It supports a mix of standard Gigabit and 2.5/5/10 GbE RJ-45 ports, along with two dual-mode 40/100 Gb QSFP+ uplink/stacking ports, enabling high throughput aggregation and future-proof wiring. With a PoE budget of up to 2,000 W and full IEEE 802.3bt support (90 W per port), it addresses demands from Wi-Fi 6/6E access points, high-definition surveillance, digital signage and IoT devices. The unit can be stacked up to 12 switches, providing up to 2.4 Tb/s stack bandwidth and flexible scaling in campus or branch aggregation layers. It fits into standard 19-inch racks (1U height) and is compatible with RUCKUS wired and wireless network management platforms for unified operations.
Key Features :
24 RJ-45 access ports with multigigabit speeds up to 10 Gb/s
Supports IEEE 802.3bt with up to 90 W per port, 2,000 W PoE budget
Two 40/100 Gb QSFP+ uplink/stacking ports, stackable to 12 units
Includes full Layer 3 routing (RIP, OSPF, BGP, VRF) and MACsec encryption
Specifications
| Specification | Value |
|---|
| Brand | RUCKUS |
| Part Number | ICX7550-24ZP-E2-R3 |
| Product Type | Managed stackable access switch |
| Switching Capacity (max) | 700 Gb/s |
| Access Ports | 24 × RJ-45 (1/2.5/5/10 Gb/s) |
| Uplink/Stack Ports | 2 × 40/100 Gb QSFP+ |
| Maximum PoE Budget | 2,000 W |
| PoE Standard | IEEE 802.3bt (90 W per port) |
| Stack Size (max) | 12 units |
| Aggregate Stack Bandwidth | 2,400 Gb/s |
| Weight | 15.39 lbs (≈ 6.98 kg) |
| Dimensions (W×D×H) | 17.3 in × 16 in × 1.7 in |
| Layer 3 Protocols | Static routing, RIP, OSPF, BGP, VRF |
| MACsec Encryption | Yes |
