Detailed Specifications

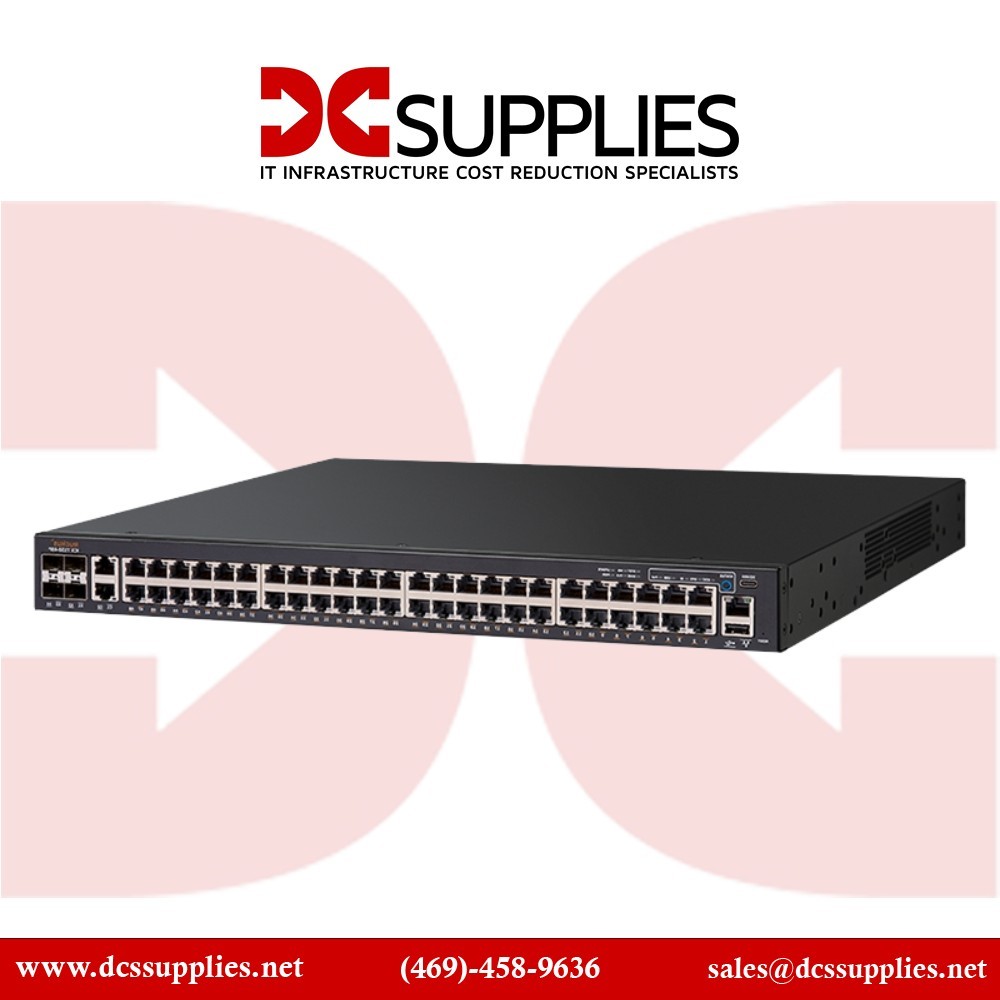

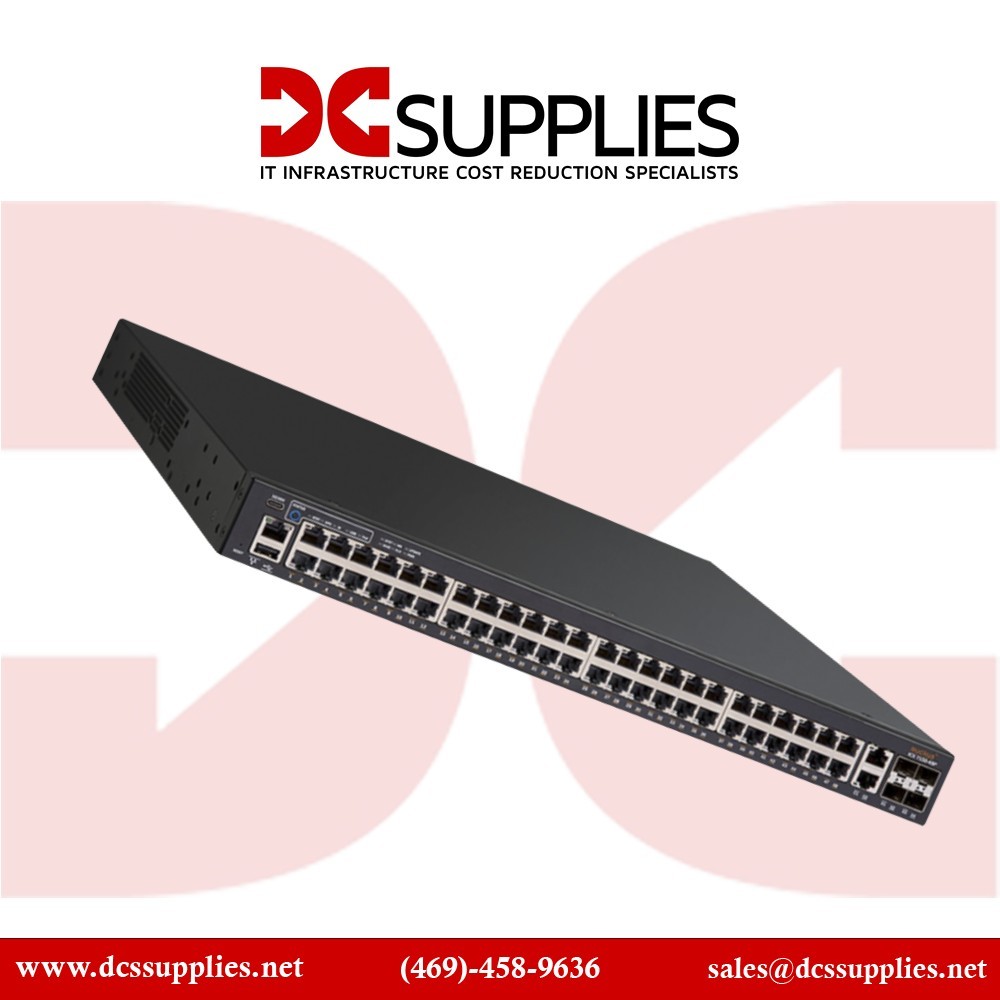

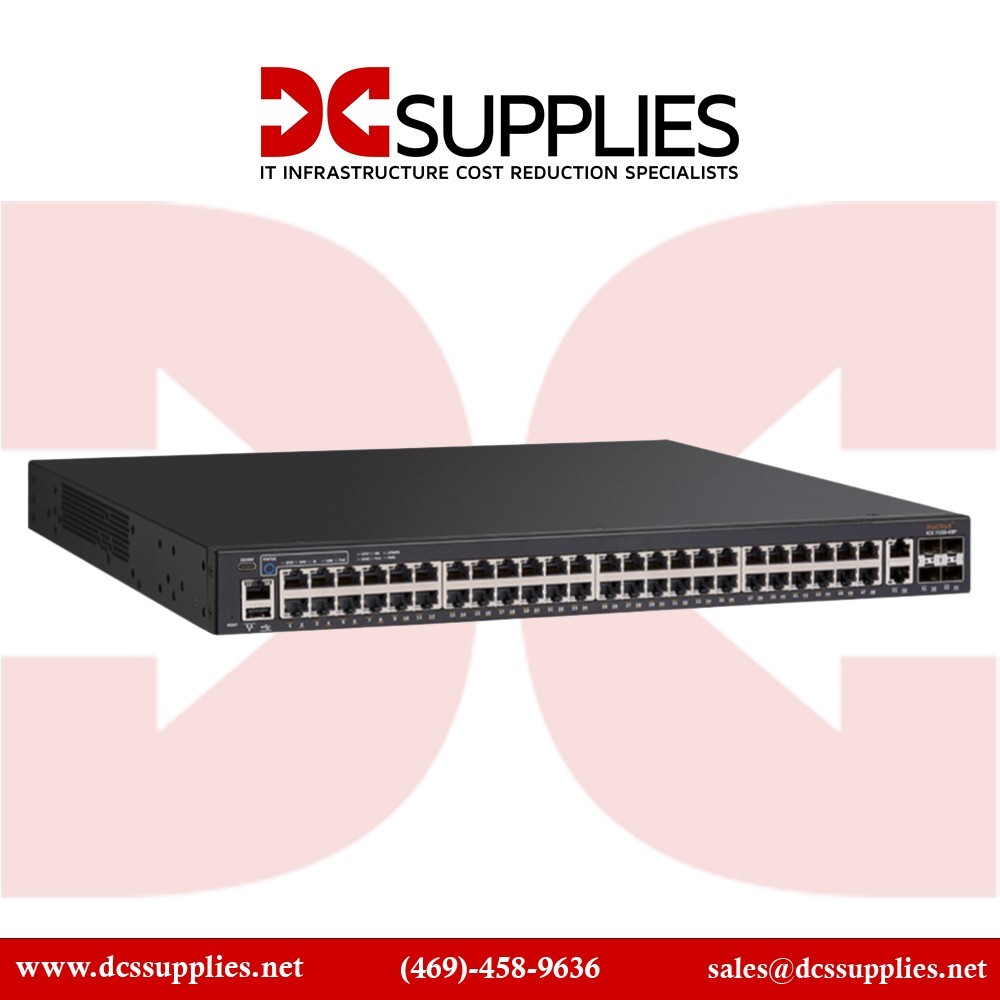

RUCKUS ICX7150-48P-2X10G – 48-Port 1 Gb PoE+ Access Switch / 2×10 Gb SFP+ Uplinks
Overview :
The RUCKUS ICX7150-48P-2X10G is a 48-port Gigabit Ethernet access switch offering full Power over Ethernet Plus (PoE+) on all RJ-45 ports and two dedicated 10 Gb SFP+ uplink/stacking ports. It is designed for enterprise branch, campus and edge deployments where both high port-density and uplink bandwidth are required. With stacking support of up to 12 units and a non-blocking architecture, it enables seamless expansion and simplifies management in multi-switch environments. The device supports advanced features including static routing, RIP and OSPF, and integrates into campus-fabric wired-wireless architectures. Its form-factor and fan-mode options permit deployment in wiring closets or noise-sensitive spaces such as retail or hospitality environments.
Key Features :
48×10/100/1000 Mb RJ-45 ports with PoE+ support
2×10 Gb SFP+ uplink/stacking ports for high-speed aggregation
Stack up to 12 switches under a single management domain
Static routing, RIP, OSPF for layer 3 access-switch functionality
Fanless mode option for quiet operation in office/retail locations
Specifications
| Specification | Detail |
|---|
| Brand | RUCKUS |
| Part Number | ICX7150-48P-2X10G |
| Product Type | 48-Port 1 Gb PoE+ Access Switch |
| RJ-45 Ports | 48 × 10/100/1000 Mb |
| Uplink/Stacking Ports | 2 × 10 Gb SFP+ |
| PoE Budget | Up to approx. 370 W (typical model) |
| Switching Capacity | Approx. 180 Gb/s |
| Stack Members Max | 12 switches |
| Dimensions (H×W×D) | 1.72 in × 17.32 in × 14.6 in |
| Weight | 13.60 lbs |
| Layer**3 Features | Static routing, RIP, OSPF |
| Fan/Noise Mode | Fanless or silent-mode option |
| Energy Efficient Ethernet | Yes |
| Region Availability | Global (Asia/EMEA/LatAm/NA) |
| Memory (Internal) | 1 GB DRAM (typical) |
