Detailed Specifications

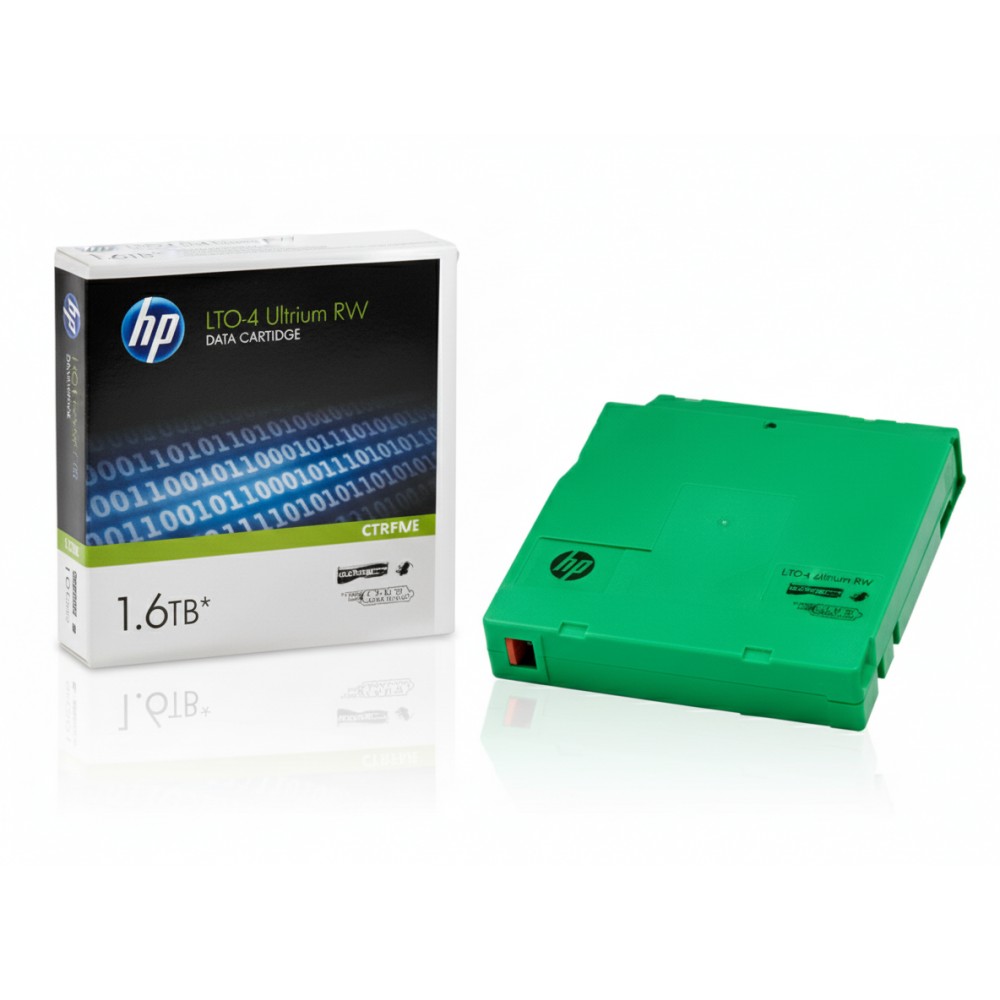

HP C7974A - LTO-4 Ultrium 1.6 TB RW Data Cartridge
Overview :
The HP C7974A cartridge is a rewritable LTO-4 Ultrium tape designed for enterprise backup, archiving and disaster-recovery workflows where high capacity and durability matter. It supports a native capacity of 800 GB and up to 1.6 TB with 2:1 compression, enabling fewer media to manage for large datasets. It fits into data-centre or tape-library environments (for example in server rooms, media vaults or remote edge-sites) and integrates with any LTO-4 drive×and is readable by LTO-5 drives×to offer medium-term archive flexibility. The cartridge is engineered with metal-particle media, supports up to one million passes on any area of tape, and conforms to the LTO standard ecosystem so it can work with HPE and third-party LTO-4 compatible drives.
It is an engineer-oriented storage medium chosen when deterministic long-term retention, low-operational overhead and open-format interoperability are required.
Key Features :
Native capacity of 800 GB and compressed 1.6 TB
Metal-particle recording media with 343 kbits/inch density
Support for 896 data tracks for full LTO-4 format
Durable media over 1,000,000 passes on any tape area
30-year archival shelf life under recommended conditions
Specifications :
| Specification | Value |
|---|
| Brand | HP |
| Part Number | C7974A |
| Product Type | LTO-4 Ultrium RW Data Cartridge |
| Native Capacity | 800 GB |
| Compressed Capacity | 1.6 TB (assuming 2:1) |
| Recording Density | 343 kbits/inch |
| Number of Data Tracks | 896 |
| Tape Length | 820 m |
| Tape Width | 12.65 mm |
| Tape Thickness | 6.6 µm |
| External Dimensions | 1.8 × 4.45 × 4.37 in (W×H×D) |
| Cartridge Weight | 0.63 lb (≈ 0.285 kg) |
| Archival Life | Up to 30 years under optimal conditions |
| Magnetic Material | Metal Particle (MP) |
| Coercivity | 2500-2700 Oe |
| Media Durability | 1,000,000 passes on any tape area |
