Detailed Specifications
APC AR8132A - Combination Lock Handles for NetShelter
Overview
The APC AR8132A is a combination lock handle kit providing mechanical physical security for APC NetShelter SX, SV, and VX rack enclosures. It is used by data center technicians and facilities teams to enforce controlled access policies at the cabinet level without relying solely on keyed locks.

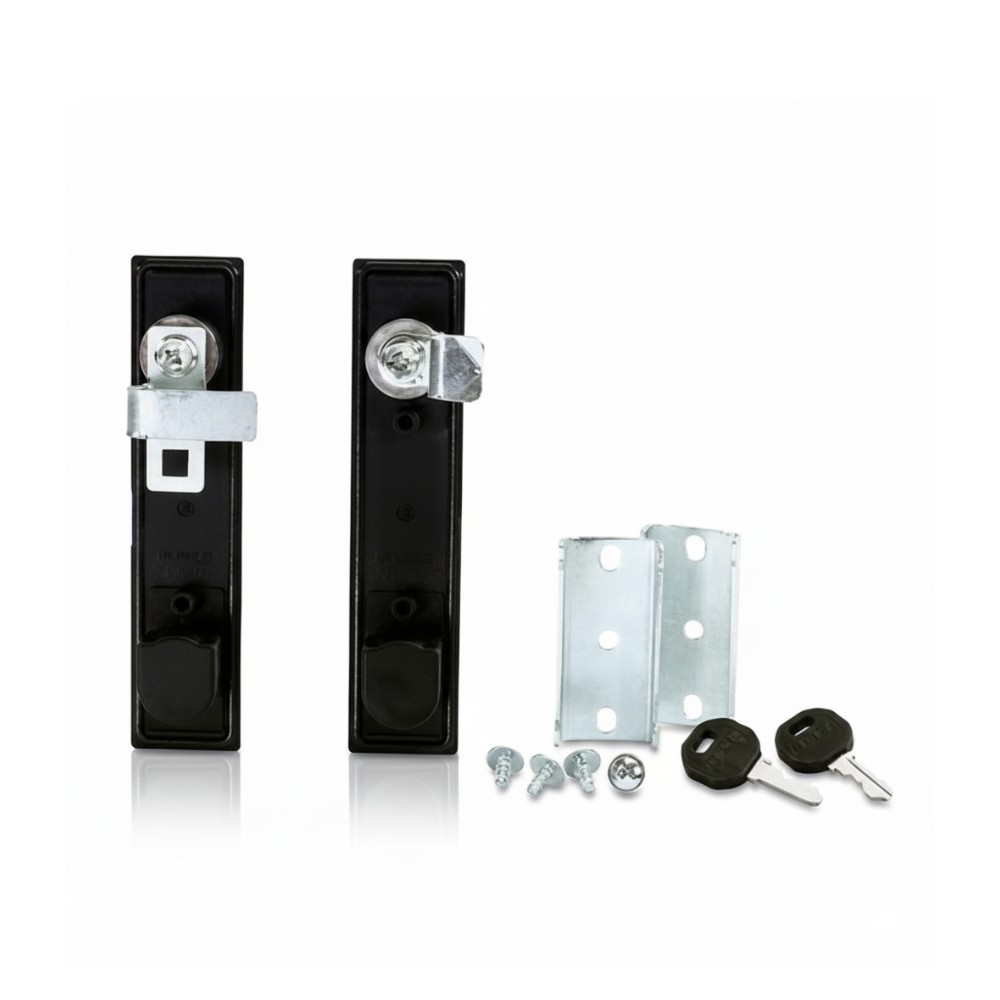

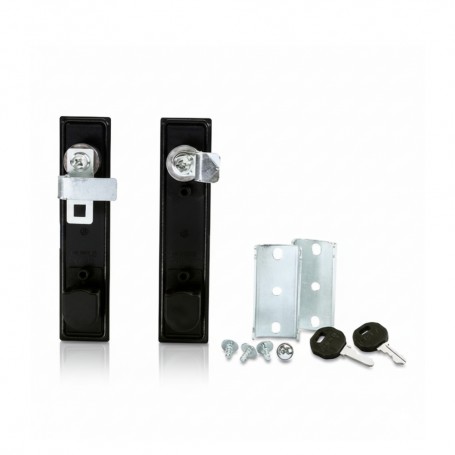

The kit includes two 3-tumbler combination lock handles with a master key override, enabling authorized access even if the combination is forgotten. It mounts directly using the standard swing-handle interface on compatible NetShelter cabinets, simplifying installation.
Deployed in secure IT, network closets, and collocated racks, it is ideal where unauthorized access mitigation is required. Not suitable for enclosures without compatible swing-handle mounting or non-NetShelter rack brands.
Key Features
- 3-tumbler mechanical combination lock handles
- Master key override for emergency access
- Fits standard swing-handle mounting points
- Kit includes two handles for front/rear doors
- No power or batteries required
Technical Specifications
| Specification | Details |
|---|
| Brand | APC |
| Part Number | AR8132A |
| Product Type | Combination Lock Handles Kit |
| Lock Mechanism | 3-tumbler mechanical combination |
| Override Method | Master key override |
| Quantity | 2 handles per kit |
| Compatible Enclosures | NetShelter SX, SV, VX |
| Mount Type | Standard swing-handle mounting |
| Color | Black |
| Compliance | RoHS compliant |
| Warranty | 2 years repair or replace |
| Height | 6.26 in (159 mm) |
| Width | 2.76 in (70 mm) |
| Depth | 3.50 in (89 mm) |
| Net Weight | 0.51 lb (0.23 kg) |
