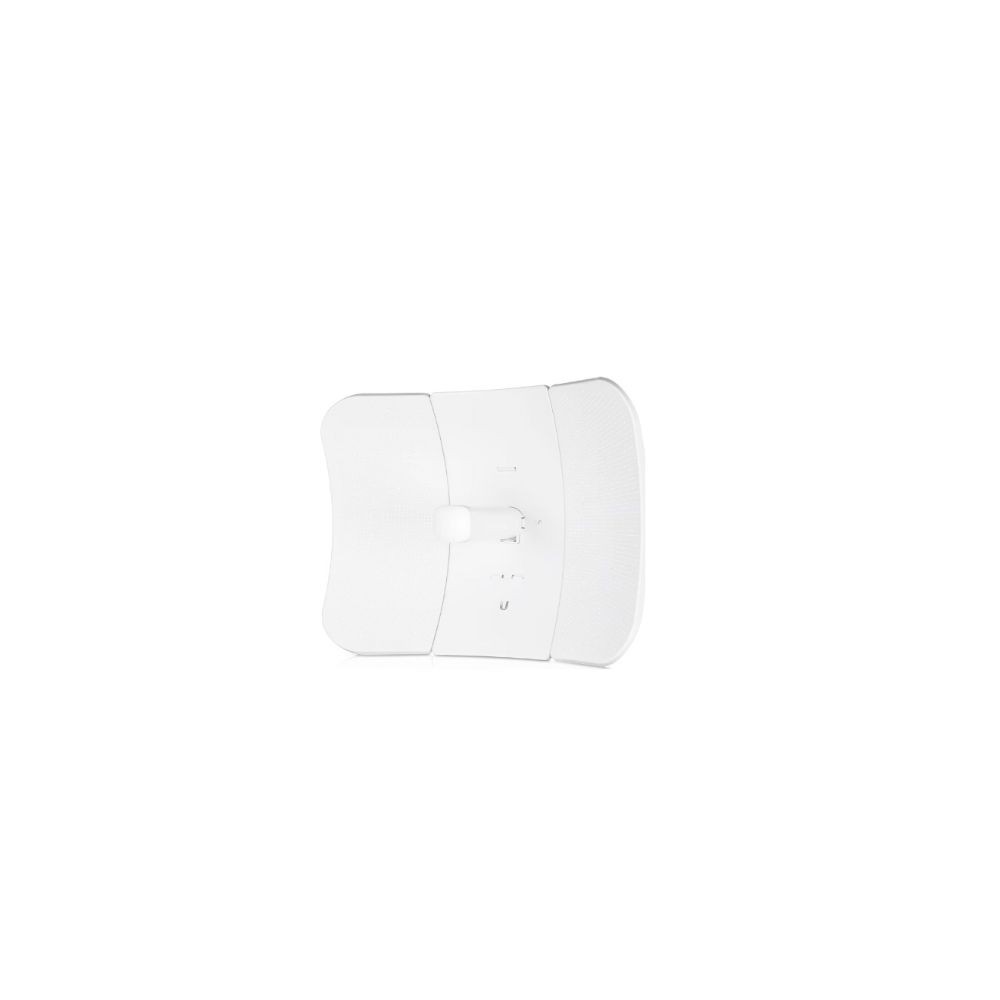

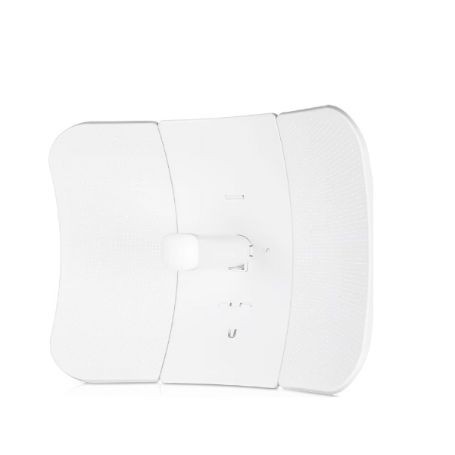

Ubiquiti LBE-5AC-LR-5-US airMAX LiteBeam 5AC Long-Range 5-Pack US
Overview
The Ubiquiti LBE-5AC-LR-5-US is a five-unit US version of the airMAX LiteBeam 5AC Long-Range CPE. It is designed for long-distance 5 GHz wireless links and uses a high-gain 26 dBi reflector to support extended outdoor connectivity.
The radio provides a Gigabit Ethernet interface and supports airMAX AC wireless operation. The US version supports the applicable 5 GHz U-NII frequency ranges for the United States and Canada.
Wireless Performance
The LiteBeam 5AC Long-Range operates in the 5 GHz band and supports link distances of more than 25 km under suitable deployment conditions. It provides 450+ Mbps throughput and uses a 26 dBi antenna gain for long-range wireless connectivity.
Channel widths are supported from 10 MHz through 80 MHz in Point-to-Point mode, while Point-to-Multipoint mode supports 10, 20, 30, and 40 MHz channel widths.
Networking and Power
Each LiteBeam unit provides one Gigabit Ethernet RJ45 port. The device uses two-pair passive PoE, with a supported voltage range of 20–27V DC and a maximum power consumption of 7W.
The specified power supply is a 24V, 0.3A Gigabit PoE adapter. Passive PoE is not the same as IEEE 802.3af/at/bt, so the connected equipment and power source should be verified before installation.
Frequency and US Version
The LBE-5AC-LR-5-US is the US version of the LiteBeam 5AC Long-Range. Its supported US/Canada 5 GHz ranges include U-NII-1 at 5150–5250 MHz, U-NII-2A at 5250–5350 MHz, U-NII-2C at 5470–5725 MHz, and U-NII-3 at 5725–5850 MHz.
The dedicated management radio operates in the 2.4 GHz band, with the US/Canada range specified as 2412–2462 MHz.
Installation
The LiteBeam 5AC Long-Range uses a pole-mount installation system. The larger reflector is designed for long-range applications, while the mounting arrangement provides elevation adjustment and azimuth adjustment through rotation around the pole.
The enclosure uses aluminum and polycarbonate construction. The unit has a specified wind loading of 550 N at 200 km/h and wind survivability of 200 km/h.
Key Features
- 5-pack of Ubiquiti airMAX LiteBeam 5AC Long-Range US-version CPE radios
- 26 dBi antenna gain for long-distance 5 GHz links
- 450+ Mbps throughput with 25+ km link capability under suitable conditions
- Gigabit Ethernet connectivity with two-pair passive PoE
- Outdoor-rated operating range from -40°C to 70°C
Applications
- Long-distance Point-to-Point wireless links
- Outdoor customer-premises connectivity
- Wireless network backhaul
- Long-range 5 GHz airMAX deployments
- Multi-unit wireless infrastructure projects requiring five CPE radios
DC Supplies Product Note
The LBE-5AC-LR-5-US uses 24V passive PoE rather than standard 802.3af/at/bt PoE, so confirm the power method and voltage requirements when planning the connected network equipment.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | LBE-5AC-LR-5-US |
| Product Type | 5 GHz Long-Range CPE Radio, 5-Pack |
| Product Family | airMAX LiteBeam 5AC Long-Range |
| Package Quantity | 5 Units |
| Version | US |
| Frequency Band | 5 GHz |
| Link Range | 25+ km |
| Throughput | 450+ Mbps |
| Antenna Gain | 26 dBi |
| Networking Interface | 1 × Gigabit Ethernet RJ45 |
| Power Method | Passive PoE, 2-pair |
| Power Supply | 24V, 0.3A Gigabit PoE Adapter |
| Supported Voltage Range | 20–27V DC |
| Maximum Power Consumption | 7W |
| PtP Channel Widths | 10/20/30/40/50/60/80 MHz |
| PtMP Channel Widths | 10/20/30/40 MHz |
| Dimensions | 512 × 385.8 × 258.3 mm |
| Weight Without Mount | 1.4 kg |
| Weight With Mount | 1.7 kg |
| Mounting | Pole Mount |
| Enclosure Material | Aluminum, Polycarbonate |
| Wind Loading | 550 N at 200 km/h |
| Wind Survivability | 200 km/h |
| Operating Temperature | -40°C to 70°C |
| Operating Humidity | 5–95% noncondensing |
| ESD/EMP Protection | ±24 kV air/contact |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC |
FAQs
What is the Ubiquiti LBE-5AC-LR-5-US?
It is a US-version five-pack of Ubiquiti airMAX LiteBeam 5AC Long-Range 5 GHz CPE radios designed for long-distance wireless links.
How many LiteBeam radios are included?
The LBE-5AC-LR-5-US is a 5-pack containing five LiteBeam 5AC Long-Range units.
What antenna gain does the LiteBeam 5AC Long-Range provide?
Each unit provides 26 dBi antenna gain.
What Ethernet interface does it use?
Each unit has one Gigabit Ethernet RJ45 port.
What type of PoE does it use?
The LiteBeam uses two-pair passive PoE and operates within a 20–27V DC supported voltage range.
Is this the US version?
Yes. The LBE-5AC-LR-5-US is specifically the US version and supports the applicable US/Canada 5 GHz frequency ranges.
