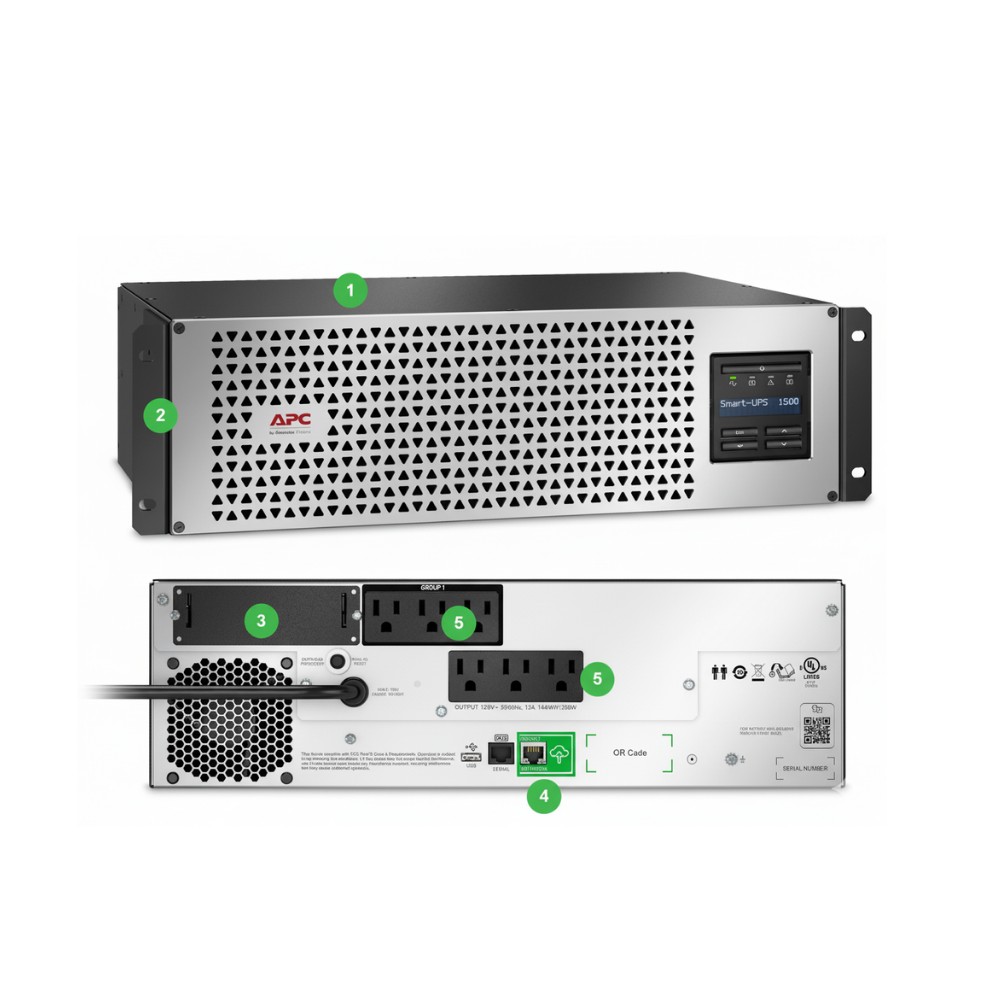

APC SMTL1500RM3UC 1500 VA Line-Interactive UPS 120 V
Overview :
The APC SMTL1500RM3UC is a line-interactive uninterruptible power supply (UPS) that delivers conditioned AC power and short-duration backup for critical equipment in single-phase 120 V environments. It is deployed by IT engineers, infrastructure technicians, and network architects to protect rack-mounted servers, edge networking devices, storage arrays, and communications gear from utility disturbances including brownouts, surges, and outages. The lithium-ion battery technology extends service life while reducing maintenance compared to traditional lead-acid UPS systems.
Rated at 1500 VA / 1350 W, the UPS provides pure sine-wave output under battery operation and incorporates Automatic Voltage Regulation (AVR) to correct incoming voltage fluctuations without engaging the battery, reducing unnecessary discharge cycles. Its short-depth 3U rackmount form factor is engineered for standard 19″ racks and shallow cabinets, optimising space in IDF/MDF closets or edge compute installations.
Front-panel LCD status and control interface provides real-time information on load, input/output voltage, and battery conditions. Integrated SmartConnect enables cloud-based remote monitoring and alerts, while a SmartSlot offers optional APC network management card integration for centralized power management via APC EcoStruxure IT or third-party SNMP platforms.
Internal lithium-ion batteries provide faster recharge (approx 2-3 hours) and an extended expected life of up to 8-10+ years, reducing total cost of ownership and service interventions. Runtime at full load is typically several minutes, sufficient for orderly shutdowns or transitions to standby generators in branch and edge environments.
This UPS is not intended for 208 V/230 V mains without the appropriate regional model, nor for continuous runtime without external battery packs. It's engineered for short outage bridging and voltage conditioning in small to medium rack deployments, not for long-duration standalone operation.
Key Features
• 1500 VA / 1350 W line-interactive UPS capacity
• Pure sine-wave output with AVR for stable utility correction
• Lithium-ion battery with extended service life
• SmartConnect cloud monitoring and SmartSlot management
• 3U short-depth rackmount form factor
Specifications
| Parameter | Specification |
|---|
| Brand | APC by Schneider Electric |
| Part Number | SMTL1500RM3UC |
| Product Type | Line-interactive UPS |
| Power Capacity | 1500 VA / 1350 W |
| Topology | Line-interactive |
| Nominal Input Voltage | 120 V AC |
| Input Voltage Range | 82-144 V AC |
| Nominal Output Voltage | 120 V AC |
| Output Waveform | Sine wave |
| Frequency | 50/60 Hz auto-sensing |
| Input Connector | NEMA 5-15P |
| Output Connectors | 6× NEMA 5-15R |
| Transfer Time | 6 ms typical / 10 ms max |
| Battery Type | Lithium-ion |
| Recharge Time | ~2-3 hours |
| Surge Protection | 680 Joules |
| Communications | SmartConnect, SmartSlot, USB, Serial |
| Dimensions (HxWxD) | ~5.14″ × 17.25″ × 11.89″ (131×438×302 mm) |
| Rack Height | 3 U |
| Weight | ~43 lb (19.5 kg) |
| Operating Temp | 0-40 °C |
| Humidity | 0-95% non-condensing |
