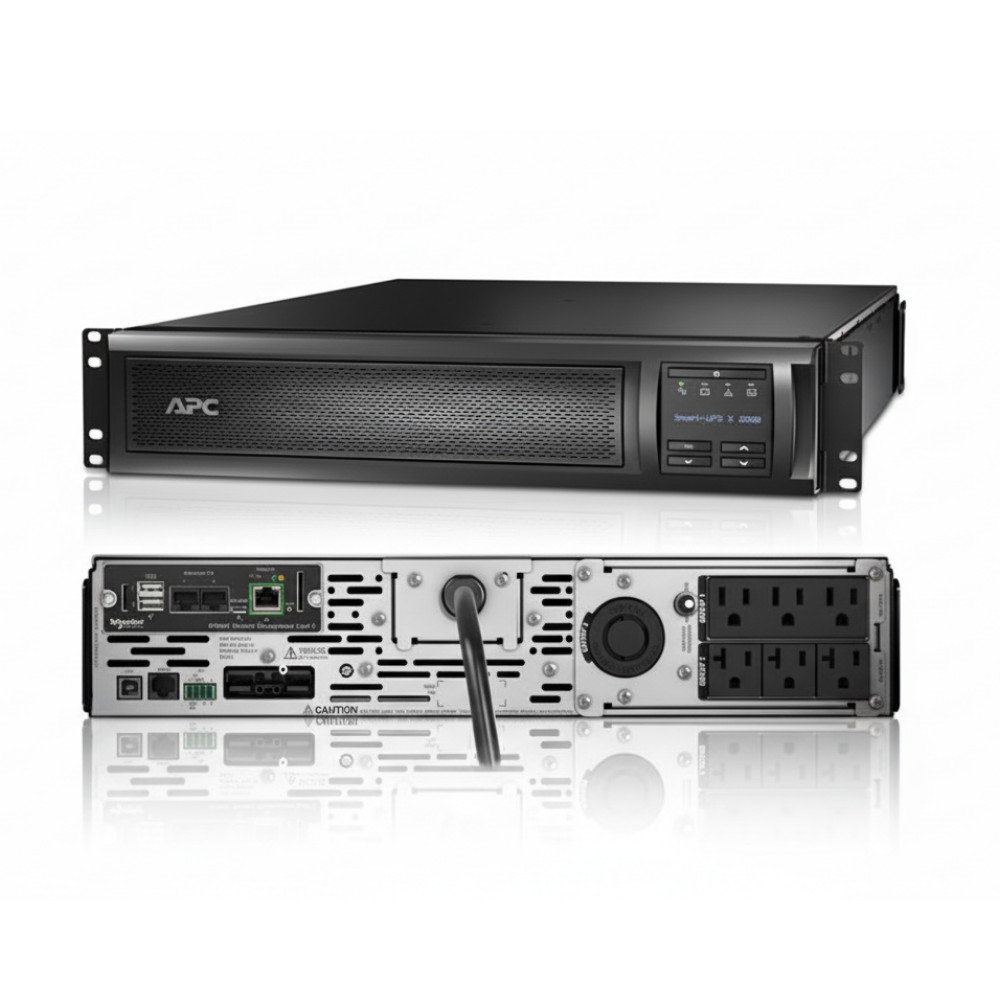

APC SMX2000RMLV2UNC - Smart-UPS X 2000VA 120V Rack UPS
Overview
APC SMX2000RMLV2UNC is a rack-mount line-interactive uninterruptible power supply designed to deliver battery-backed power protection for servers, network switches, and storage appliances installed in 19-inch rack cabinets. IT infrastructure teams deploy this UPS in server rooms and edge computing racks to maintain power continuity during utility failures and to stabilize voltage fluctuations affecting sensitive equipment.
The UPS provides 2000 VA / 1800 W output capacity and operates within the 120 V AC power ecosystem, delivering pure sine-wave output compatible with modern server-grade power supplies and active PFC loads. Its line-interactive topology incorporates automatic voltage regulation to correct low- and high-voltage conditions without switching to battery operation, extending battery life and preserving runtime during short disturbances.
The chassis occupies 2U of rack space and installs into standard 19-inch equipment racks. It is rack/tower convertible and includes rail hardware for cabinet installation. Power input is delivered through a NEMA 5-20P connector, while the rear panel provides seven protected outlets: three NEMA 5-15R, three NEMA 5-20R, and one NEMA L5-20R for connecting rack-mounted devices or downstream PDUs.
Integrated management interfaces include USB and serial communication ports, along with a SmartSlot expansion interface supporting network management cards. The SMX2000RMLV2UNC variant includes a pre-installed network management card, allowing administrators to monitor UPS status, configure alarms, and perform remote shutdown operations through network protocols such as SNMP or HTTPS.
The unit contains a maintenance-free sealed lead-acid battery module delivering approximately 10-11 minutes runtime at full load and up to about 27 minutes at half load. Batteries are user-replaceable and hot-swappable, and the system supports external battery packs (SMX120RMBP2U) for extended runtime in environments requiring longer outage protection.
This UPS is intended for racks supplied by 120 V circuits capable of supporting a 20-amp connection due to the NEMA 5-20P input plug. It is not appropriate for environments limited to standard 15-amp receptacles unless the electrical infrastructure is upgraded to meet the power requirements of the device.
Key Features
2000 VA / 1800 W line-interactive rack UPS
Pure sine-wave output for server power supplies
2U rack/tower convertible form factor
Seven protected outlets including L5-20R
Pre-installed network management card for remote monitoring
Specifications
| Specification | Detail |
|---|
| Brand | APC by Schneider Electric |
| Part Number | SMX2000RMLV2UNC |
| Product Type | Rack-Mount Line-Interactive UPS |
| UPS Topology | Line-Interactive |
| Output Power Capacity | 2000 VA / 1800 W |
| Nominal Input Voltage | 120 V AC |
| Nominal Output Voltage | 120 V AC |
| Output Waveform | Pure Sine Wave |
| Input Voltage Range | 75 - 154 V AC |
| Input Connector | NEMA 5-20P |
| Output Connections | 3× NEMA 5-15R, 3× NEMA 5-20R, 1× NEMA L5-20R |
| Transfer Time | 2-4 ms |
| Rack Height | 2U |
| Dimensions (H×W×D) | 85 × 432 × 667 mm |
| Net Weight | ~38.5 kg |
| Battery Type | Maintenance-free sealed lead-acid |
| Typical Recharge Time | ~3 hours |
| Runtime (Full Load) | ~10-11 minutes |
| Runtime (Half Load) | ~27 minutes |
| Surge Protection | 540 J |
| Communication Interfaces | USB, Serial (RJ-45) |
| Expansion Slot | 1 × SmartSlot |
| Operating Temperature | 0 °C - 40 °C |
| Operating Humidity | 0 - 95 % non-condensing |
