Eaton Tripp Lite OMNIVSINT800 - 800 VA Line-Interactive UPS
Overview
The Eaton Tripp Lite OMNIVSINT800 is a 230 V line-interactive uninterruptible power supply (UPS) designed to provide short-duration battery backup and voltage regulation for 230 V electrical environments. It is deployed by IT engineers, facilities teams, and branch office support staff to protect servers, networking gear, and sensitive electronics from brief outages, brownouts, and transient voltage anomalies. The unit's primary function is to bridge power interruptions and deliver clean mains to connected loads until orderly shutdown or auxiliary power is engaged.
This UPS delivers 800 VA / 475 W output capacity on a single-phase 230 VAC system, typical for EMEA/APAC branch and office deployments. It uses internal sealed lead-acid batteries with automatic voltage regulation (AVR) circuitry that corrects undervoltages without engaging battery power, conserving the internal battery for true outages.

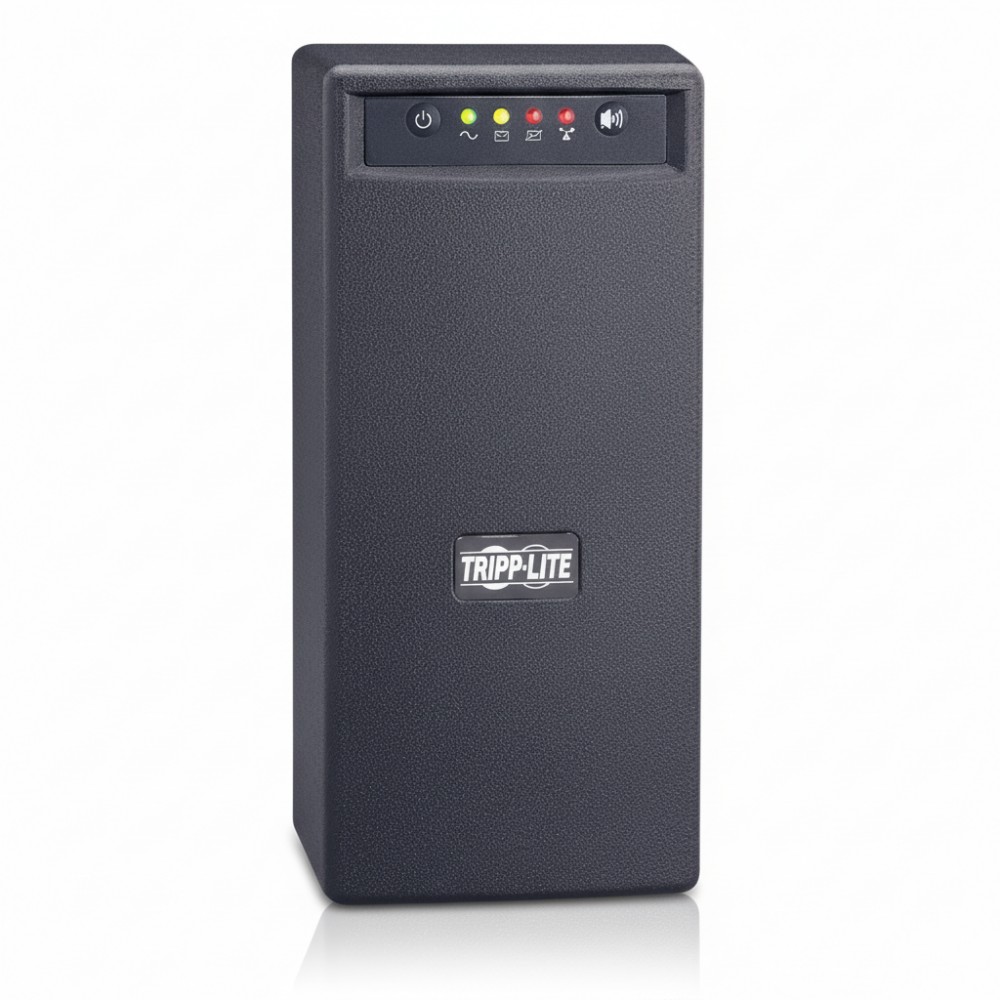

The OMNIVSINT800 is a tower form factor intended for floor-shelf placement in small IT rooms, classrooms, retail locations, or distributed edge racks where space is limited but short outage coverage and voltage conditioning remain important. It integrates four IEC C13 battery-supported outlets for load distribution.
Communications occur via a USB port that supports PowerAlert monitoring and controlled shutdown scripts from host systems when battery backup is active. The UPS also includes TEL/DSL transient protection and hot-swappable batteries accessible through a service door.
In practice, this UPS is deployed where brief hold-up time suffices to complete writes, initiate clean shutdowns, or allow transfer to generator power. Runtime is load dependent (~10.8 min at half load and ~4.3 min at full load) and should be validated during commissioning.
This unit should not be used as the primary backup for extended outages, high-availability clusters, or in scenarios requiring external battery expansion; higher-capacity line-interactive or online UPS families with external battery modules are appropriate for such requirements.
Key Features
- 800 VA / 475 W line-interactive UPS for 230 V systems
- AVR corrects brownouts without discharging battery
- (4) IEC C13 battery-supported outlets
- USB port for PowerAlert monitoring and shutdown
- Tower free-standing form factor with hot-swappable batteries
Specifications
| Specification | Detail |
|---|
| Brand | Eaton |
| Part Number | OMNIVSINT800 |
| Product Type | Line-Interactive UPS |
| VA Rating | 800 VA |
| Wattage Capacity | 475 W |
| Topology | Line-interactive |
| Nominal Input Voltage | 230 V AC |
| Output Nominal Voltage | 220/230/240 V AC |
| Output Waveform | PWM sine wave (battery mode) |
| Output Receptacles | (4) IEC C13 |
| Input Connection | IEC C14 inlet |
| Battery Type | Sealed lead-acid |
| Runtime (Half Load) | ~10.8 min |
| Runtime (Full Load) | ~4.3 min |
| AVR Range | Boosts undervoltage down to ~159 V |
| Communications | USB (PowerAlert) |
| Form Factor | Tower / free-standing |
| Height | 9.7 in |
| Width | 7.5 in |
| Depth | 13.7 in |
| Weight | 19.5 lb |
| Operating Temp | 0 °C to 40 °C |
| Humidity Range | 0-95% non-condensing |
| Surge/Noise Protection | Included |
| Transfer Time | ~2-4 ms |
| Certifications | UL 1778, CE, RoHS, FCC Compliant |
