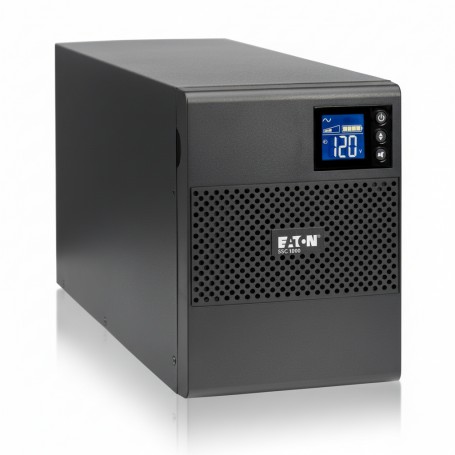

Eaton 5SC1000 - Tower UPS 1000 VA/700 W
Overview
The Eaton 5SC1000 is a line-interactive uninterruptible power supply (UPS) intended to protect small-to-medium IT loads and office equipment operating on 120 V AC mains from power interruptions, voltage sags, and transient disturbances. It is deployed by IT support personnel and facility engineers to maintain uptime for network appliances, servers, workstations, and storage devices where brief outages or power quality variations could disrupt operations or cause data corruption.
This model is rated at 1000 VA / 700 W using line-interactive topology with automatic voltage regulation (AVR) to correct most minor fluctuations without switching to battery. Output is provided through eight NEMA 5-15R outlets, with input via a NEMA 5-15P connection and a 6 ft (1.8 m) cord. Communications include USB (HID) and RS-232 (RJ45) ports, and bundled cables support onsite integration with host-side management software.
Physically configured in a compact tower form factor (~8.2″ H × 5.9″ W × 13.4″ D, ~25.6 lb), the 5SC1000 is suitable for placement in server rooms, office racks with shelf support, or edge closets where dedicated rack space isn't available. An LCD status display provides real-time load and battery condition information without requiring host software.
Battery management employs Eaton's ABM 3-stage charging technology, which extends battery service life and provides advanced replacement notification. The internal sealed lead-acid battery is user-replaceable but not hot-swappable and the unit does not support external battery modules; runtime is sufficient to bridge short outages or enable orderly shutdowns but is not designed for prolonged autonomous operation.
In deployment, this UPS is suited for protecting networking gear, small servers, NAS units, and edge devices where power interruptions are infrequent and short. It is not appropriate for core data center power protection or high-availability racks that require extended runtime, external battery expansion, or parallel UPS configurations.
Key Features
• 1000 VA / 700 W line-interactive UPS capacity
• Eight NEMA 5-15R output receptacles
• Automatic voltage regulation (AVR) for input fluctuations
• USB HID & RS-232 communications ports
• ABM battery management technology
Technical Specifications
| Specification | Detail |
|---|
| Brand | Eaton |
| Part Number | 5SC1000 |
| Product Type | Line-interactive UPS, tower |
| Rated Capacity | 1000 VA / 700 W |
| Topology | Line-interactive with AVR |
| Input Connection | NEMA 5-15P (6 ft cord) |
| Output Receptacles | 8 × NEMA 5-15R |
| Nominal Voltage | 120 V AC |
| Input Voltage Range | 96-144 V AC |
| Frequency Range | 45-55 Hz (50 Hz), 55-65 Hz (60 Hz) |
| Battery Type | Sealed lead-acid (VRLA), user-replaceable |
| Battery Management | ABM 3-stage charging |
| Communications | USB (HID), RS-232 (RJ45) |
| Display | LCD status display |
| Dimensions (H×W×D) | 8.2″ × 5.9″ × 13.4″ |
| Weight | 25.6 lb (11.6 kg) |
| Noise Level | <40 dB at 1 m |
| Efficiency at Full Load | ~94 % |
| Extended Battery | Not supported |
