Detailed Specifications

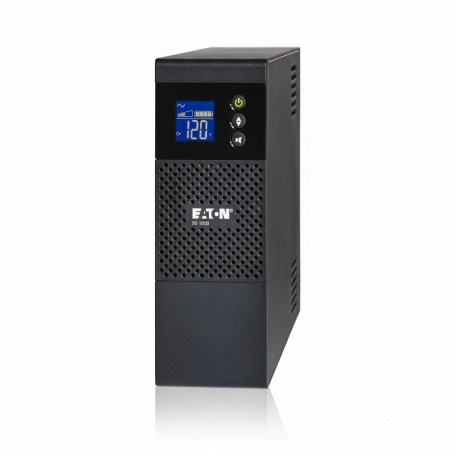

Eaton 5S1500G - Line-Interactive 230 V UPS
Overview :
The Eaton 5S1500G is a 230 V line-interactive uninterruptible power supply (UPS) designed for engineers working in small data centers, network closets or branch office environments where compact UPS form-factor and reliable backup matter. It provides a 1500 VA (900 W) capacity and eight IEC C13 outlets, enabling support for multiple network or server devices during power disturbances. The unit's 9.8″ height, 3.4″ width and 15″ depth footprint fits under or beside rack equipment or workstation consoles, and it features automatic voltage regulation (AVR) to handle brownouts and overvoltage without engaging the battery. USB HID communication is built-in for integration with operating systems and shutdown software, and the 3-year factory warranty covers both electronics and battery.
Key Features :
1500 VA / 900 W capacity at 230 V environment
IEC C14 input with eight C13 output receptacles
Line-interactive topology with AVR (booster/fader)
USB HID port for monitoring and graceful shutdown
Specifications
| Specification | Value |
|---|
| Brand | Eaton |
| Part Number | 5S1500G |
| Product Type | Line-Interactive UPS |
| VA Rating | 1500 VA |
| Wattage Rating | 900 W |
| Input Nominal Voltage | 230 V |
| Input Voltage Range | 175 V - 275 V |
| Input Frequency Range | 46 Hz - 70 Hz (50/60 Hz auto-sense) |
| Input Connection | IEC 60320 C14 |
| Output Nominal Voltage | 230 V |
| Output Receptacles | 8 × IEC 60320 C13 |
| Dimensions (H×W×D) | 9.8 in × 3.4 in × 15.0 in |
| Weight | 24.6 lbs |
| Efficiency at Max Load | >95% |
