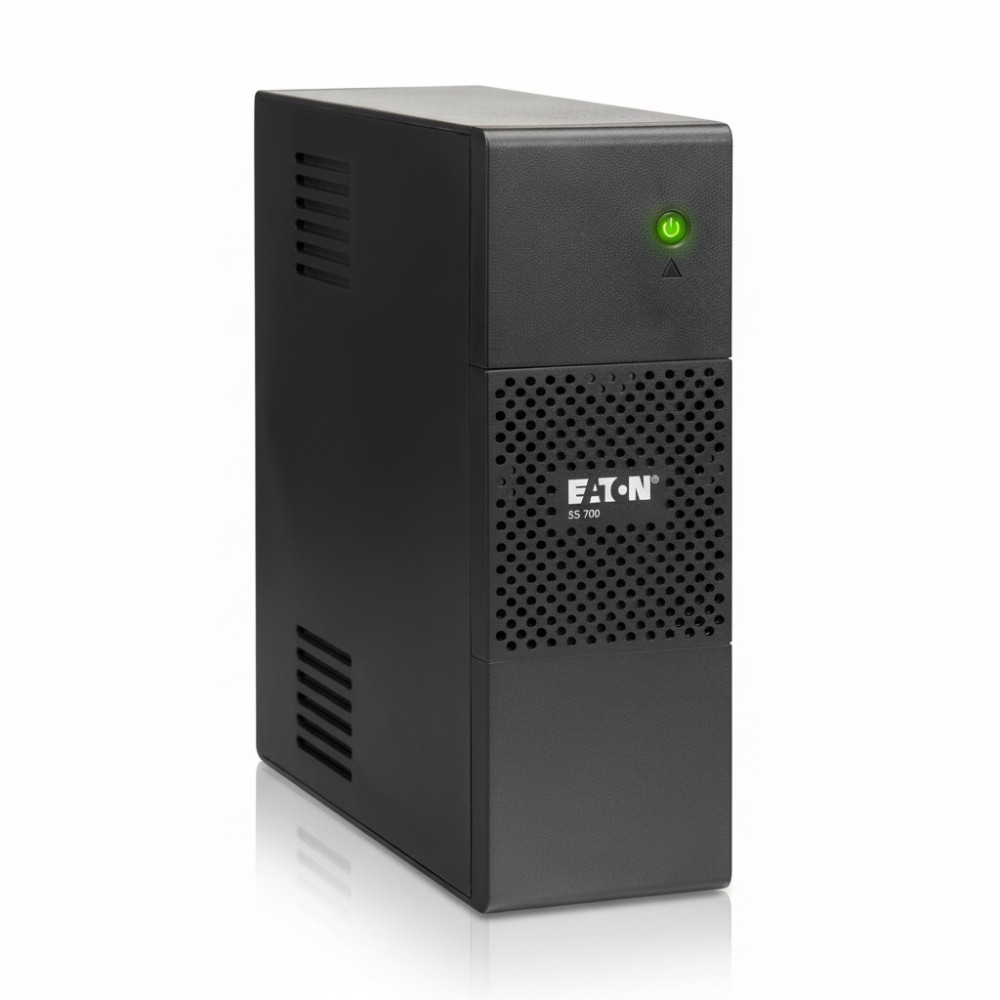

Eaton 5S700G - 230 V Line-Interactive UPS 700 VA
Overview
The Eaton 5S700G is a 230 V line-interactive uninterruptible power supply (UPS) designed for short-duration power backup and voltage conditioning in international power environments. It is deployed by IT infrastructure teams, telecom engineers, and facilities technicians where equipment protection and orderly shutdown on mains loss are required. This model addresses the common issue of voltage sags, swells, and brief outages in small IT closets, retail floors, or edge compute sites.
This UPS delivers 700 VA / 420 W (approx) capacity, supporting connected loads up to that level while providing internal sealed battery backup and automatic voltage regulation through line-interactive topology. It uses Eaton's ABM battery management to extend battery life and provide advance replacement alerts.
The 5S700G fits tower free-standing deployments in rack shelves, desktops, or under equipment racks where 230 V feed is standard (EMEA, APAC regions). With six IEC C13 output receptacles and a C14 inlet, it aligns with typical server and network equipment power interfaces in those markets.
Integration includes a standard USB HID communications port for connection to monitoring software (e.g., Eaton UPS Companion) to enable safe shutdown automation and event logging. It does not include a built-in LCD; status is provided via USB software or front LEDs.
In practice, this UPS is used to protect endpoints such as rack servers, network switches, storage nodes, and edge appliances requiring brief hold-up time to complete critical operations or initiate managed shutdowns. Runtime varies with load; engineering teams should test typical load profiles during commissioning.
This unit should not be used as the primary power source for high-availability server farms, large core network gear, or in locations expecting frequent extended outages. Its internal battery capacity and line-interactive design only sustain short outages or enable controlled shutdown.
Key Features
- 700 VA / ~420 W line-interactive UPS (230 V systems)
- (6) IEC C13 battery-supported outlets
- C14 inlet for 230 V mains input
- USB HID port for monitoring & safe shutdown
- Tower form factor for small rack or edge deployment
Specifications
| Specification | Detail |
|---|
| Brand | Eaton |
| Part Number | 5S700G |
| Product Type | Line-Interactive UPS |
| VA Rating | 700 VA |
| Wattage | ~420 W |
| Output Topology | Line-Interactive |
| Input Connection | IEC C14 |
| Output Receptacles | (6) IEC C13 |
| Nominal Voltage | 220/230/240 V |
| Input Voltage Range | 175-275 V |
| Input Frequency Range | 46-70 Hz (50 Hz); 57-70 Hz (60 Hz) |
| Battery Type | Sealed Lead-Acid |
| Communications | USB HID port (cable included) |
| Form Factor | Tower (free standing) |
| Height | 9.8 in |
| Width | 3.4 in |
| Depth | 10.2 in |
| Weight | ~13.1 lb |
| Operating Temp | 0 °C to 35 °C |
| Noise Level | <25 dB @ 1 m |
| Surge Protection | Yes |
