Detailed Specifications

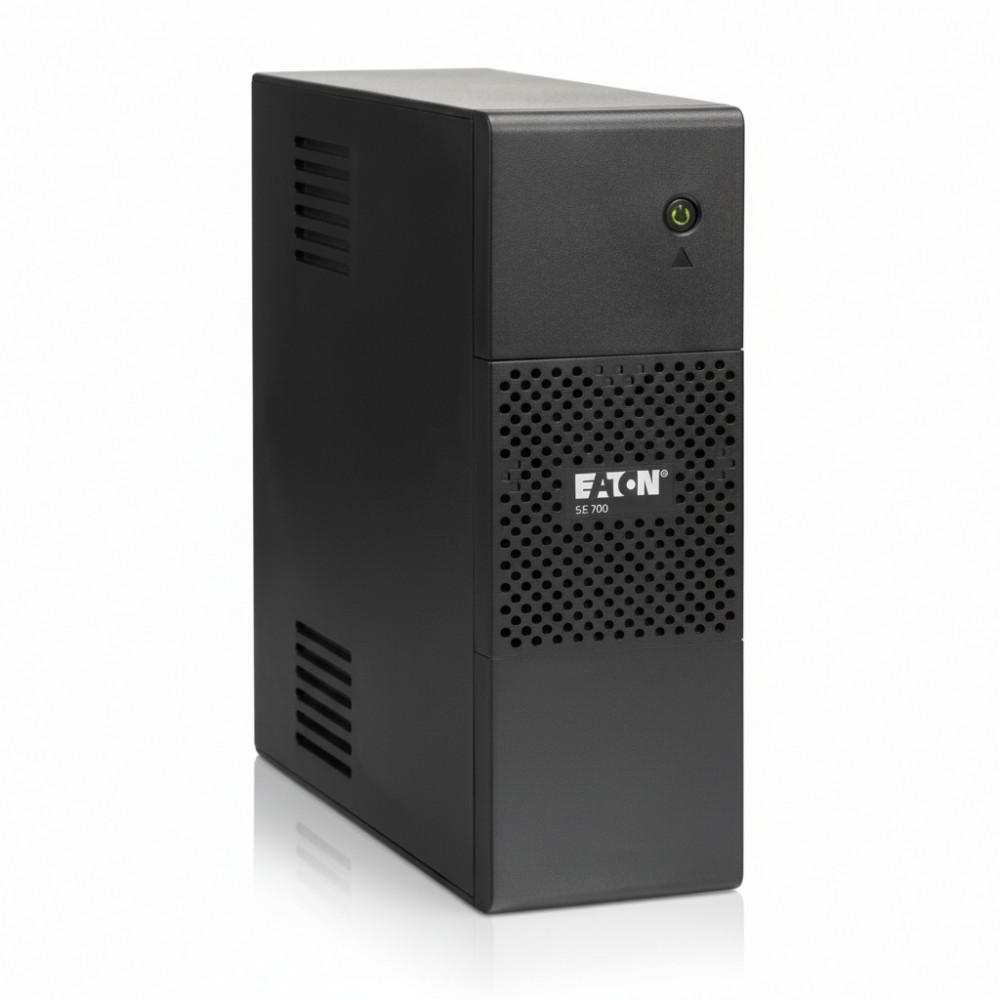

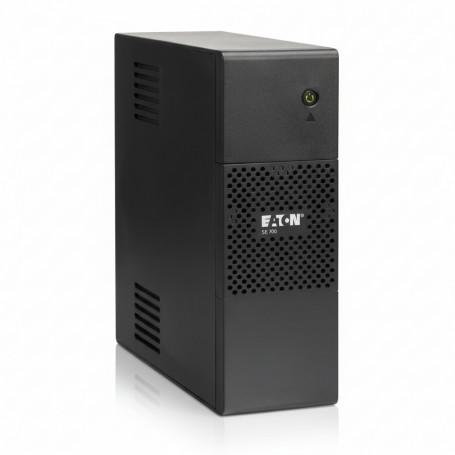

Eaton 5S700 - 700VA Line-Interactive UPS
Overview :
The Eaton 5S700 is a 700VA line-interactive uninterruptible power supply (UPS) designed to provide reliable backup power for desktop PCs, workstations, and small office equipment. With a 420W power rating, it offers 2 minutes of battery runtime at full load and 12 minutes at half load, ensuring protection during short power outages. The UPS features eight 5-15R outlets, including four with battery backup and surge protection, and four with surge protection only. It also includes surge protection for coaxial and data lines, safeguarding communication equipment. The compact tower form factor allows for flexible placement in various environments, such as home offices or small businesses. Additionally, the UPS comes with a 6-foot USB cable and is compatible with Eaton's UPS Companion software for monitoring and graceful shutdown during extended power failures.
Key Features :
700VA / 420W capacity with 2-minute full-load runtime
Eight 5-15R outlets: 4 battery backup, 4 surge only
Surge protection for coaxial and data lines
Includes 6-foot USB cable and Eaton UPS Companion software
Compact tower design for flexible placement
Specifications :
| Specification | Details |
|---|
| Brand | Eaton |
| Part Number | 5S700 |
| Product Type | Line-Interactive UPS |
| Topology | Line-interactive |
| VA Rating | 700 VA |
| Wattage | 420 W |
| Input Voltage | 120 V AC |
| Input Frequency | 46-70 Hz (50 Hz system); 57-70 Hz (60 Hz system) |
| Input Connection | 5-15P |
| Input Cord Length | 6 ft |
| Output Voltage | 120 V AC |
| Output Receptacles | (8) 5-15R |
| Battery Type | Sealed, lead-acid |
| Battery Runtime (Full Load) | 2 minutes |
| Battery Runtime (Half Load) | 12 minutes |
| Surge Protection | Yes |
| Noise Level | <25 dB at 1 meter |
| Operating Temperature | 0° to 35°C (32° to 95°F) |
| Storage Temperature | -25°C to 40°C (-13°F to 104°F) |
| Relative Humidity | 0-93% non-condensing |
| Altitude | Up to 6,500 ft (2000m) without de-rating |
| Dimensions (H x W x D) | 9.8 x 3.4 x 10.2 inches |
| Weight | 14.3 lbs |
| Warranty | 3 years |
| Included Accessories | UPS, USB cable, User manual, Important safety instructions, Limited warranty |
