Detailed Specifications

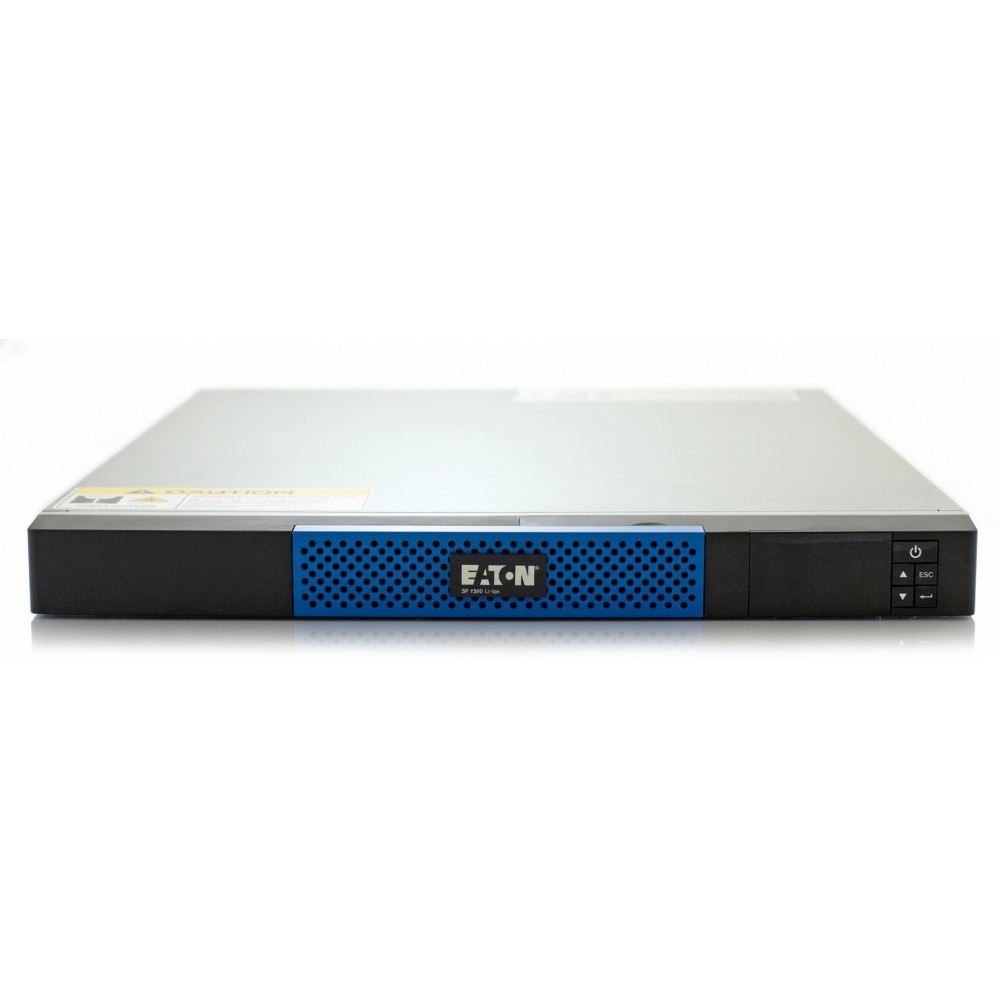

Eaton 5P1550GR-L 1 55 kVA 110 kW Line Interactive UPS
Overview
The Eaton 5P1550GR-L is a 1U rack-mount line-interactive UPS built for small server racks, network closets, telecom enclosures or distributed IT cabinets where space, efficiency and reliability matter. It delivers 1.55 kVA (1550 VA) / ~1.10 kW output in a 230 V single-phase configuration (operating range 200-240 V), with true sine-wave output and advanced battery management. Built with a lithium-ion battery pack×offering extended lifecycle and faster recharge compared to traditional lead-acid units×the 5P1550GR-L supports up to six IEC C13 outlets and an inlet C14 connection, making it ideal for compact rack applications. The 1U form-factor (1.7″ high) conserves valuable rack height, and the included rail/kit supports 4-post holding and optional 2-post or wall-mount setups. With full remote monitoring readiness, optional network card support and silent operation (<45 dB at 1 meter), this UPS fits scenarios where downtime must be avoided, service visibility is required, and rack-space is at a premium.
Key Features
1550 VA / 1100 W output supports real-load devices in compact rack layouts.
Lithium-ion battery pack provides comparable runtime to lead-acid but with longer lifespan, lighter weight and faster recharge.
True sine-wave output and line-interactive topology deliver clean AC to active-PFC servers, storage and network hardware across 200-240 V input.
1U rack-mount form-factor (≈ 1.7″ H) preserves rack space; includes 4-post rail kit and supports 2-post or wall mounting.
Optional network management card slot enables SNMP/WEBCARD interface, remote shutdown and alerting - suited for unmanned or distributed deployments.
Specifications
| Specification | Detail |
|---|
| Brand | Eaton |
| Part Number | 5P1550GR-L |
| Product Type | Line-Interactive UPS |
| Output Power Rating | 1550 VA / 1100 W |
| Input Voltage | 200-240 V AC single-phase nominal (230 V default) |
| Output Voltage | 230 V AC nominal (200/208/220/230/240 V supported) |
| Form Factor | Rack 1U (1.7″ H) × supports 19″ 4-post, 2-post or wall |
| Battery Technology | Lithium-ion user-replaceable pack |
| Outlets | (6) IEC C13 |
| Input Connection | IEC C14 inlet |
| Efficiency | Up to ~97 % at full load |
| Dimensions & Weight | 1.7″ H × 17.2″ W × 21.8″ D; ~36 lb (~16.3 kg) |
| Warranty | 5-year limited warranty (with registration) |
