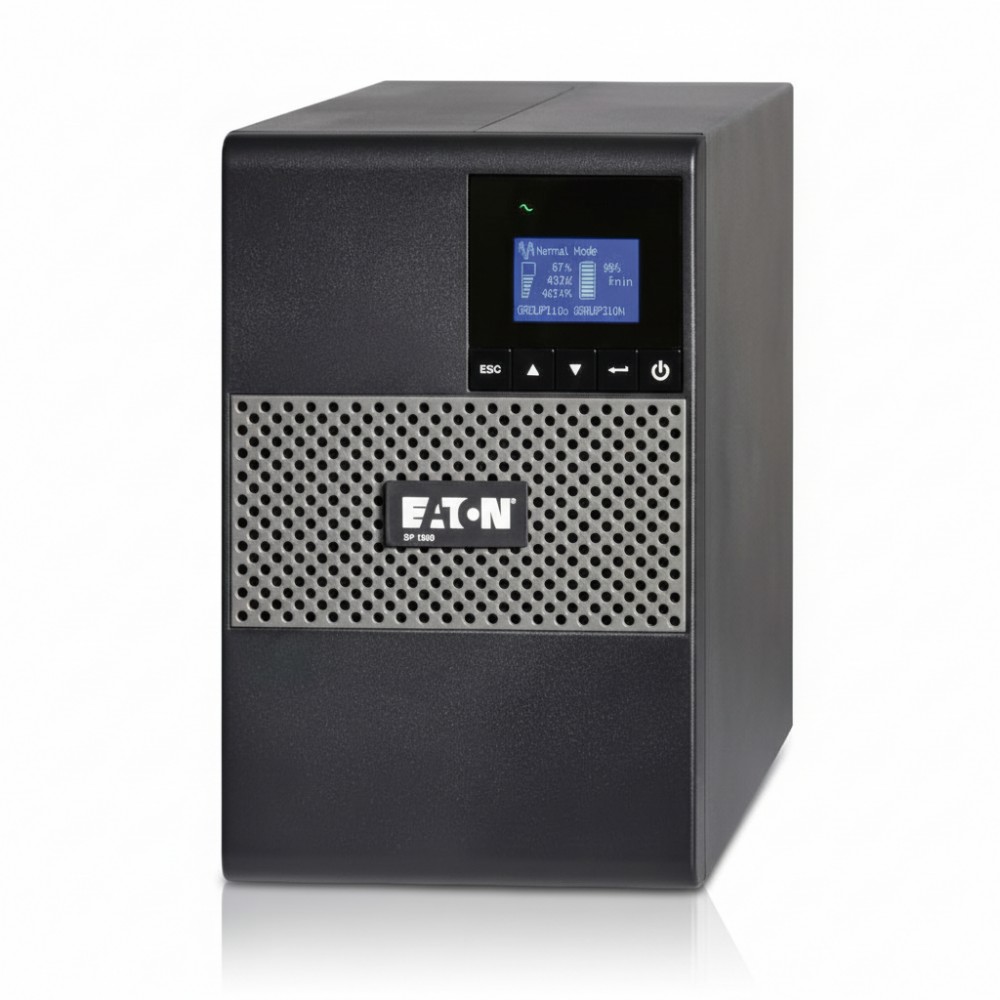

Eaton 5P1000 - Tower UPS 1000 VA / 770 W
Overview
The Eaton 5P1000 is a line-interactive uninterruptible power supply (UPS) intended to protect IT and network equipment from utility power disturbances including brownouts, surges, and short outages. It is typically specified by systems engineers and IT infrastructure teams to ensure controlled power continuity and orderly shutdowns for servers, storage, communications, and networking gear in environments where intermittent power events impact uptime.
This UPS is rated for 1000 VA / 770 W output with line-interactive topology and true sine-wave output, making it suitable for mixed electronic loads. Electrical connections consist of a NEMA 5-15P input with ~6 ft (1.8 m) power cord and eight NEMA 5-15R output receptacles arranged into two load banks, enabling selective shedding of non-critical circuits to extend runtime.
Physically the unit is a tower form factor (approx. 9.1″ H × 5.9″ W × 13.6″ D, ~25.3 lb), engineered for installation in network closets, server rooms, or edge racks with shelf support where floor or compact rack placement is necessary. Its graphical LCD presents real-time metrics including load, battery status, and event logging without host software.
Standard communications include USB (HID) and RS-232 (RJ45) interfaces with one expansion slot for an optional Gigabit network management card enabling remote monitoring and alerts. Eaton's Intelligent Power Manager software integrates UPS status and scripted shutdown across virtualized or physical environments.
In practice, the 5P1000 is deployed to protect mid-range servers, PoE switches, storage arrays, and clustered compute nodes where short runtime is acceptable. It is not intended for core data center protection where extended uptime and battery module expansion are required, as it lacks external battery pack support. Runtime performance varies with load but is roughly ~5 min at full load and ~12 min at half load, sufficient for orderly shutdown or bridging brief utility interruptions.
Key Features
• 1000 VA / 770 W line-interactive UPS capacity
• Eight NEMA 5-15R outlets in two load banks
• True sine-wave output for sensitive loads
• Graphical LCD with load and battery status
• USB HID & RS-232 communications with optional network card
Technical Specifications
| Specification | Detail |
|---|
| Brand | Eaton |
| Part Number | 5P1000 |
| Product Type | Line-interactive UPS, tower |
| Rated Capacity | 1000 VA / 770 W |
| Topology | Line-interactive |
| Input Connection | NEMA 5-15P, ~6 ft cord |
| Output Receptacles | 8 × NEMA 5-15R |
| Output Waveform | True sine wave |
| Nominal Voltage | 120 V AC |
| Output Voltage Range | 102-132 V AC |
| Frequency | 50/60 Hz auto-sensing |
| Runtime (Full Load) | ~5 min |
| Runtime (Half Load) | ~12 min |
| Battery Type | Sealed lead-acid (VRLA), user-replaceable |
| Communications | USB (HID), RS-232 (RJ45) |
| Expansion Slot | Optional Gigabit network card |
| Dimensions (H×W×D) | ~9.1″ × 5.9″ × 13.6″ |
| Weight | ~25.3 lb |
| Display | Graphical LCD |
