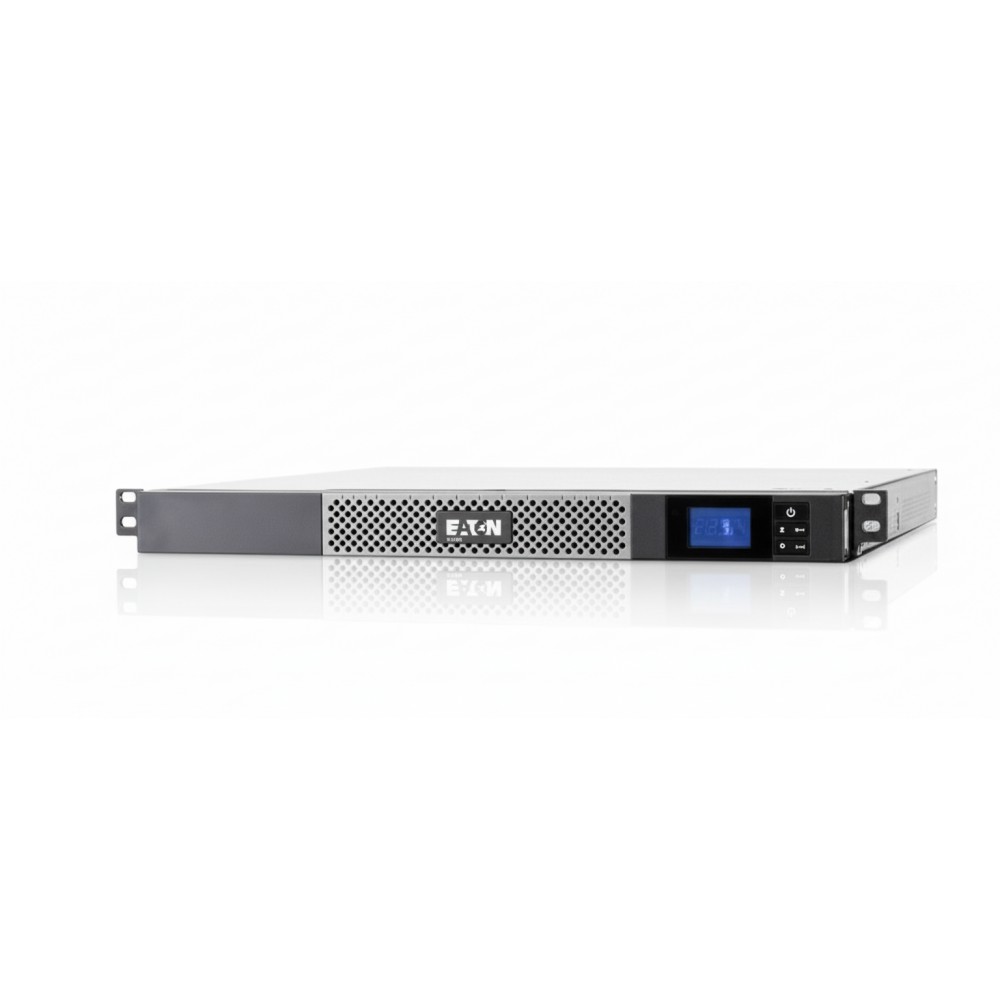

Eaton 5P750R - Rack-Mount UPS 750 VA / 600 W
Overview
The Eaton 5P750R is a rack-mount, line-interactive uninterruptible power supply (UPS) engineered to provide short-duration battery backup and voltage regulation for IT infrastructure in rack environments. Deployment is typical in network closets, intermediate distribution frames (IDFs), branch offices, and small data centers where maintaining AC power integrity for critical servers, switches, firewalls, and storage during brief utility interruptions is essential. The solution mitigates brownouts, overvoltage, and power loss events while giving IT teams time to execute orderly shutdowns or failovers.
This model supports a 750 VA / 600 W capacity at 120 V nominal voltage with a true sine-wave output and line-interactive topology. It is designed with five NEMA 5-15R output receptacles and a NEMA 5-15P input plug on a ~6 ft cord, ensuring compatibility with standard 120 V US power infrastructure. Communications include USB (HID) and RS-232 ports, plus an expansion slot for an optional network management card for remote monitoring and alerting.
The 5P750R fits in a standard 19-inch rack (1U) using the included four-post rail kit, making it suitable for dense equipment racks where space optimization is required. Its electrical characteristics and form factor align with typical rack PDUs, branch distribution panels, and 120 V AC circuits in enterprise and SMB environments.
Integration with Eaton monitoring and management tools (such as Intelligent Power Manager) enables centralized UPS control across distributed deployments and supports orderly shutdown scripts, SNMP traps, and system event logging. Optional network connectivity further enables secure remote management.
In practice, this UPS is appropriate for edge compute racks or small rack segments powering a handful of low-density loads (switches, routers, firewall appliances, single server). It is not suitable for high-density server racks, 208/230 V mains environments without step-down transformers, or workloads requiring extended runtime beyond the intrinsic battery capacity, as there is no external battery expansion support on this model.
Key Features
- 750 VA / 600 W line-interactive UPS for rack-mount use
- True sine-wave output on five NEMA 5-15R receptacles
- Rack-mountable 1U design with included rail kit
- USB (HID) + RS-232 comms; optional network card slot
- NEMA 5-15P input, 120 V ecosystem compatibility
Specifications
| Spec | Detail |
|---|
| Brand | Eaton |
| Part Number | 5P750R |
| Product Type | Rack-mount line-interactive UPS |
| Power Rating | 750 VA / 600 W |
| Topology | Line-interactive |
| Input Connection | NEMA 5-15P, ~6 ft cord |
| Input Nominal Voltage | 120 V default (configurable 100/120/125 V) |
| Output Nominal Voltage | 120 V (default, adjustable) |
| Output Voltage Range | 102-132 Vac |
| Output Frequency | 50/60 Hz |
| Output Receptacles | 5 × NEMA 5-15R |
| Communication Ports | USB (HID), RS-232 |
| Expansion Slot | Gigabit Network Card optional |
| Dimensions (HxWxD) | 1.7 × 17.2 × 20.0 in (43 × 437 × 508 mm) |
| Weight | 31.1 lb (14.1 kg) |
| Form Factor | 1U rackmount with 4-post rail kit |
| Battery Type | Sealed lead-acid (VRLA) |
| Environmental (Temp / Humidity) | 0-35 °C; 0-90 % non-condensing; up to 10,000 ft |
| Certifications | UL 1778, UL 497A, cULus, IEC 62040-2 C1-C2, FCC B |
