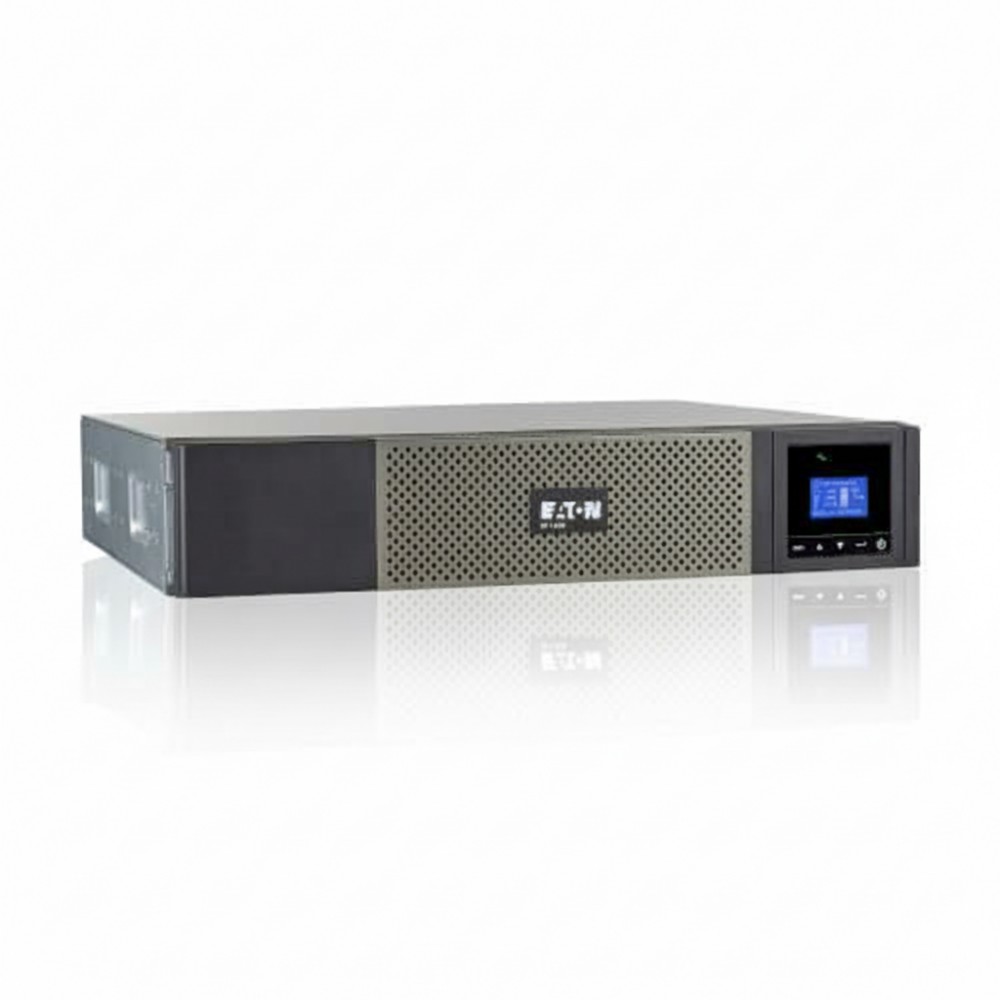

Eaton 5P750RC - 2U Rackmount UPS 750 VA/600 W
Overview
The Eaton 5P750RC is a line-interactive uninterruptible power supply (UPS) engineered to provide regulated backup power to distributed IT infrastructure and network equipment. It is typically deployed by systems engineers and data center or network operations staff to maintain uptime for servers, switches, storage, and other critical loads during utility power interruptions or voltage variability. It addresses brownouts, surges, and short outages that can otherwise lead to service disruption or hardware faults.
Rated at 750 VA (600 W), this UPS uses a line-interactive topology with automatic voltage regulation (AVR) and true sine-wave output to support sensitive electronic loads. Output is provided through ten NEMA 5-15R receptacles, and input is through a NEMA 5-15P plug with ~6 ft cord. Internal battery management uses Eaton's ABM technology to extend battery life via staged charging and advance replacement notification.
The unit occupies 2U of rack space and has a 16″ depth, making it suitable for installation in standard 19″ two-post or four-post racks, wall frames, or cabinets in branch offices, IDF closets, and edge compute locations with constrained depth. The multi-line graphical LCD provides real-time status of load, battery, and events without requiring host software.
Communications include USB (HID) and RS-232 (RJ45) interfaces as standard, with an optional Gigabit network management card slot for remote monitoring and alerts. Eaton's Intelligent Power Manager software can integrate UPS status and automated shutdown control into existing management infrastructures.
In deployment, the 5P750RC is practical for protecting consolidated server pairs, SAN/NAS storage, and networking arrays in environments prone to voltage fluctuations. It should not be used as the sole UPS for core data center power protection where extended runtime or external battery modules are required, as there is no extended battery pack option for this compact rack series.
Key Features
• 750 VA / 600 W line-interactive UPS with AVR
• True sine-wave output for sensitive IT loads
• Ten NEMA 5-15R outlets for distributed connections
• Multi-line LCD for real-time load and battery metrics
• USB HID & RS-232 communications with optional network card
Technical Specifications
| Specification | Detail |
|---|
| Brand | Eaton |
| Part Number | 5P750RC |
| Product Type | Line-interactive UPS, rackmount 2U |
| Rated Capacity | 750 VA / 600 W |
| Topology | Line-interactive (AVR) |
| Output Nominal Voltage | 120 V AC (100/120/125 V selectable) |
| Output Voltage Range | 102-132 V AC |
| Output Frequency | 50/60 Hz |
| Output Waveform | True sine wave |
| Output Receptacles | 10 × NEMA 5-15R |
| Input Connection | NEMA 5-15P (~6 ft / 1.8 m cord) |
| Battery Type | Sealed lead-acid (ABM managed) |
| Communications | USB (HID), RS-232 (RJ45) |
| Optional Expansion | Gigabit Network Card slot |
| Dimensions (H×W×D) | 3.4″ × 17.4″ × 16″ |
| Weight | ~31 lb (14.1 kg) |
| Operating Temp | 0-40 °C |
| Humidity | 0-90% non-condensing |
| Noise Level | <45 dB |
