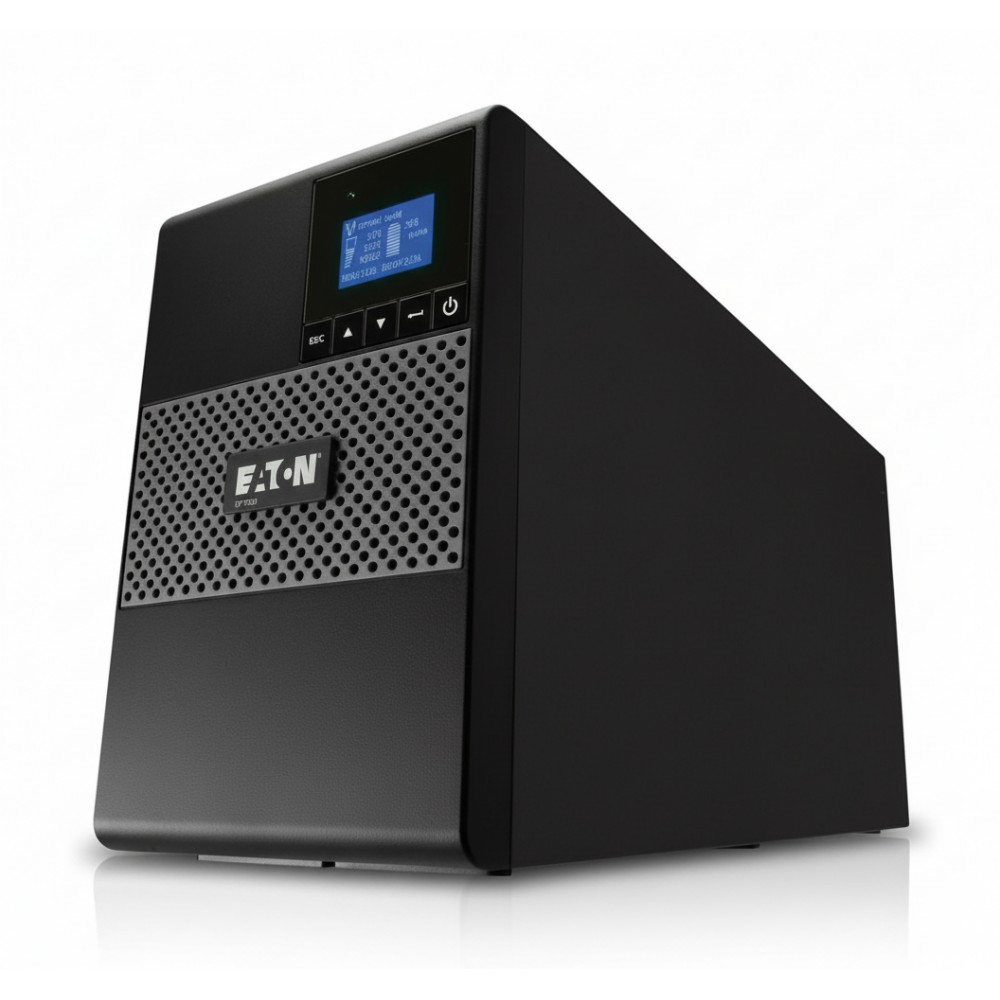

Eaton 5P750 - Line-Interactive UPS 750 VA 600 W (Tower)
Overview
The Eaton 5P750 is a line-interactive uninterruptible power supply (UPS) designed for provisioning short-term battery backup and voltage conditioning for IT and networking equipment. It is commonly deployed by infrastructure engineers to support branch offices, server closets, small data centers, and edge network cabinets that require clean AC power during utility disturbances. This model addresses power loss, brownouts, and overvoltage events for critical loads that must remain online long enough for orderly shutdown or failover.
As a 750 VA/600 W class unit, the 5P750 delivers true sine-wave output and supports eight NEMA 5-15R receptacles with a single 5-15P input connection. Measured output voltage range, frequency support, and line-interactive topology enable continuous operation under varying mains conditions without switching immediately to battery. The UPS includes USB and RS-232 communications and one expansion slot for an optional network management card for remote control and alerting integration.
This UPS is suitable for small rack or tower deployments in intermediate distribution frames (IDFs), branch data closets, VoIP/PBX systems, and edge network core devices where 600 W†/750 VA† of protected load is adequate. It fits standard 120 V ecosystems and supports typical office power distributions, making it compatible with 5-15P circuits and pre-configured receptacle infrastructure. It does not require specialized 208/230 V power feeds at the device level.
Integration with Eaton's Intelligent Power Manager (IPM) and optional gigabit network management card allows central monitoring across distributed environments. The UPS can also integrate into rack systems using appropriate shelves or rails if placed in cabinets, though rack conversion kits are typically aftermarket.
For example, a network closet with a 48-port switch, a small server, and a firewall/router cluster can use the 5P750 to ensure clean power and provide runtime for orderly failover to secondary power or safe shutdown during outages. In contrast, it is not suitable for high-density server racks, full rack PDUs feeding 208 V loads, or environments requiring extended runtime beyond a few minutes under full load. Extended battery modules are not supported on this model.
Key Features
- 750 VA / 600 W rated UPS for distributed IT power protection
- True sine-wave output across eight NEMA 5-15R receptacles
- Line-interactive topology for brownout and overvoltage support
- USB + RS-232 ports; optional network card slot
- Input: NEMA 5-15P; output: 8× 5-15R, 120 V nominal
Specifications
| Spec | Detail |
|---|
| Brand | Eaton |
| Part Number | 5P750 |
| Product Type | Line-Interactive UPS |
| Power Rating | 750 VA / 600 W |
| Topology | Line-interactive |
| Input Connection | NEMA 5-15P |
| Input Nominal Voltage | 120 V (adjustable 100/110/120/127 V) |
| Input Voltage Range | 89-151 Vac (configurable) |
| Output Voltage Nominal | 120 V (configurable 100/120/125 V) |
| Output Voltage Range | 102-132 Vac |
| Output Frequency | 50/60 Hz |
| Receptacles | 8 × NEMA 5-15R |
| Communication Ports | USB (HID), RS-232 |
| Expansion Slot | 1 slot for Gigabit Network Card (optional) |
| Dimensions (HxWxD) | 9.1 × 5.9 × 13.6 in (231 × 150 × 345 mm) |
| Weight | 23.6 lb (10.7 kg) |
| Environment | 0-35 °C; 0-90% RH non-condensing; up to 10,000 ft altitude |
| Certifications | UL 1778, cULus, IEC 62040-2, FCC Class B |
