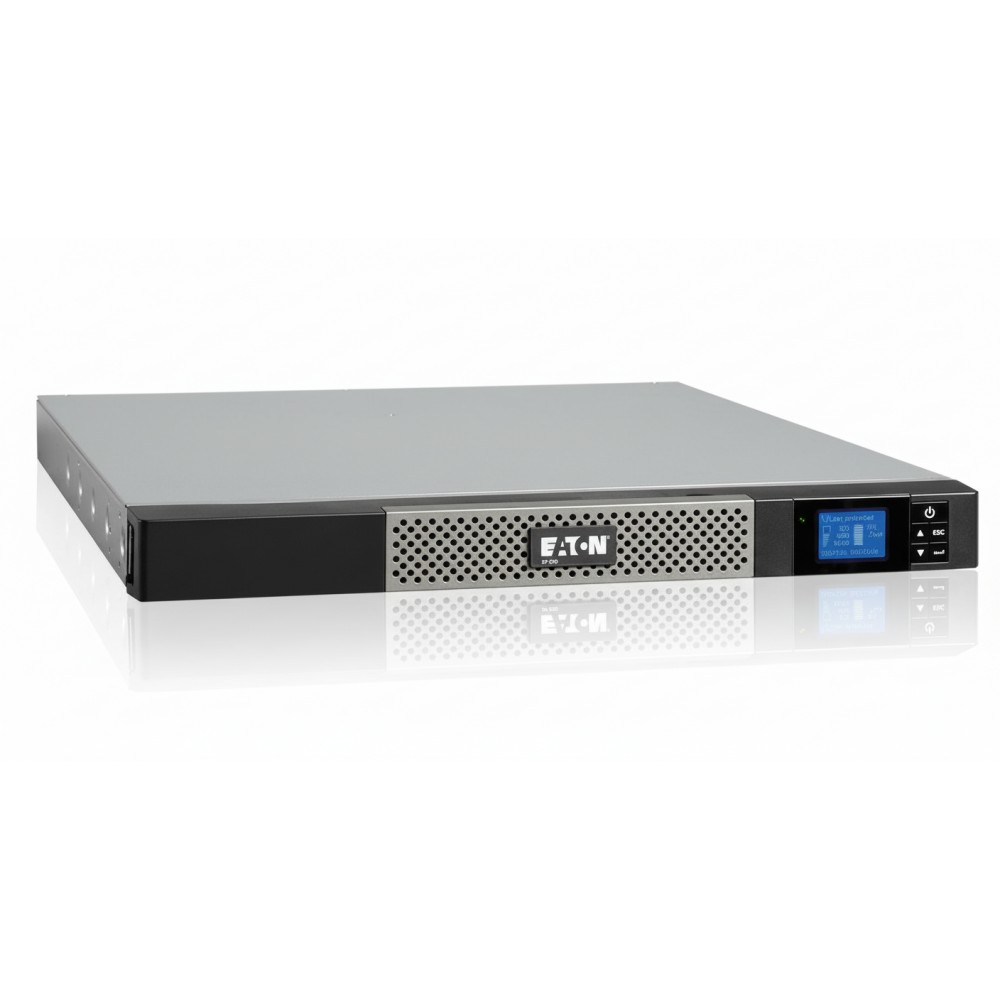

Eaton 5P550R - 1U Rackmount UPS 550 VA/420 W
Overview
The Eaton 5P550R is a line-interactive uninterruptible power supply (UPS) designed to provide short-duration backup power and voltage regulation for critical IT equipment. It is deployed by system administrators, network engineers, or data center technicians to protect servers, networking gear, and storage from power disturbances, outages, and sags. The unit addresses unexpected utility power loss and voltage fluctuations that can cause downtime or hardware damage.
The UPS supports a 550 VA (420 W) power rating on a 120 V AC nominal bus, delivering utility voltage regulation and battery backup through five NEMA 5-15R outlets. Input is via a NEMA 5-15P plug with a 6 ft cord. Line-interactive topology provides automatic voltage regulation (AVR) for minor sags and surges without switching to battery, while true sine-wave output supports sensitive loads. Communications include USB (HID) and RS-232 (RJ45) ports, with an optional network-management card slot for remote monitoring.
Physically, the 5P550R is engineered for 1U rack environments (1.7″ H × 17.2″ W × 14.3″ D), enabling installation in standard 19″ cabinets typically found in IDF/EDFs, branch closets, or small data center racks. Its shallow depth makes it practical for constrained rack spaces and network edge deployments where space is at a premium.
The unit integrates with Eaton's Intelligent Power Software Suite for automated orderly shutdowns, event logging, and scripting during extended outages. The LCD graphical display provides real-time metrics (load, battery status, alarms) without requiring host-side software. This UPS accepts standard rackmount ears and accommodates common rack rails without modification.
A practical deployment example is protecting a small branch office server and associated PoE switch stack where brief brownouts and intermittent outages are common. The device supports automated notifications and shutdown scripting to ensure graceful service termination in the event of prolonged utility failure. Conversely, it should not be used as the sole UPS in high-availability data center core racks, multi-rack PDUs, or where runtime beyond a few minutes is required without external battery packs, as it lacks extended battery module support.
Key Features
• 550 VA / 420 W line-interactive UPS capacity
• True sine-wave output for sensitive mixed loads
• Five switched NEMA 5-15R outlets
• Integrated LCD status with event logging
• USB HID & RS-232 communication ports
Technical Specifications
| Specification | Detail |
|---|
| Brand | Eaton |
| Part Number | 5P550R |
| Product Type | Line-interactive UPS, rackmount |
| Power Rating (VA) | 550 VA |
| Power Rating (W) | 420 W |
| Input Connection | NEMA 5-15P, 6 ft cord |
| Output Receptacles | 5 × NEMA 5-15R |
| Nominal Voltage | 120 V AC |
| Voltage Regulation | 102-132 V (utility) |
| Frequency | 50/60 Hz auto-sensing |
| Runtime (Full Load) | ~3 min at 420 W |
| Runtime (Half Load) | ~8 min at 210 W |
| Dimensions (H×W×D) | 1.7″ × 17.2″ × 14.3″ |
| Weight | ~19.7 lb (8.95 kg) |
| Battery Type | Sealed lead-acid, hot-swappable |
| Communications | USB (HID), RS-232 (RJ45) |
| Display | LCD graphical display |
