Detailed Specifications
Eaton OMNIVS1500 1500VA Line-Interactive UPS Compatible Tripp Lite
Overview :

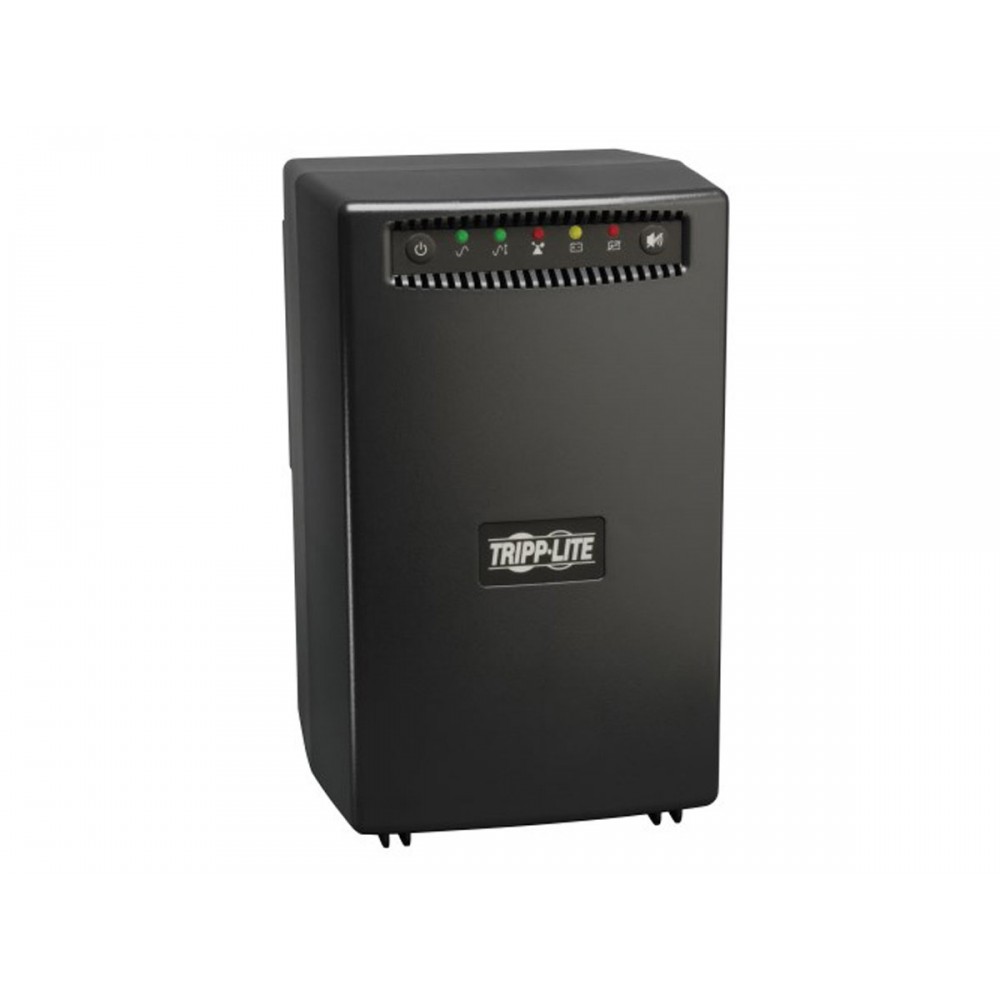

The Eaton OMNIVS1500 is a Tripp Lite OmniVS series 1500VA / 940W line-interactive UPS designed to provide battery backup, automatic voltage regulation and surge protection for computers, workstations, small networks, point-of-sale systems and other electronic equipment. It features 8 NEMA 5-15R outlets, including 5 battery-backup outlets and 3 surge-only outlets.
The UPS uses Automatic Voltage Regulation (AVR) to correct brownouts and overvoltages from 75V to 147V without switching to battery power. It also provides USB connectivity, TEL/DSL/Ethernet protection, EMI/RFI noise suppression and a 15A resettable input circuit breaker.
Key Features :
- 1500VA / 940W capacity
- Line-interactive UPS topology
- 8 NEMA 5-15R outlets
- 5 battery-backup and surge-protected outlets
- 3 surge-only outlets
- Automatic Voltage Regulation (AVR)
- Corrects input voltage from 75V to 147V
- USB communication interface
- TEL/DSL/Ethernet surge protection
- 510-joule AC surge suppression
- 15A resettable input circuit breaker
- Cold-start capability
- Hot-swappable, user-replaceable battery
- LED status indicators
- Tower form factor
- ENERGY STAR certified
- 3-year limited warranty
Specifications :
| Specification | Details |
|---|
| Manufacturer | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | OMNIVS1500 |
| Product Type | Uninterruptible Power Supply (UPS) |
| UPS Series | OmniVS |
| Topology | Line-Interactive |
| Form Factor | Tower |
| VA Rating | 1500 VA |
| Output Capacity | 940 W |
| Input Voltage | 120 VAC |
| Output Voltage | 110 / 115 / 120 VAC |
| Input Plug | NEMA 5-15P |
| Output Receptacles | 8 × NEMA 5-15R |
| Battery Backup Outlets | 5 |
| Surge-Only Outlets | 3 |
| Maximum Input Current | 12A |
| Frequency | 60 Hz |
| Input Cord Length | 6 ft. (1.8 m) |
| Battery Type | Valve Regulated Lead Acid (VRLA) |
| Battery Replacement | RBC24-SLT |
| Battery Replacement Type | Hot-swappable, user replaceable |
| Runtime at Full Load | 4.5 min. |
| Runtime at Half Load | 11.5 min. |
| Transfer Time | 2–4 ms |
| AVR Range | 75–147V |
| Output Regulation – Line Mode | -18%, +8% |
| Output Regulation – Battery Mode | ±5% |
| AC Surge Suppression | 510 Joules |
| Communication Interface | USB HID |
| Telephone Protection | TEL/DSL, 1 line |
