Detailed Specifications

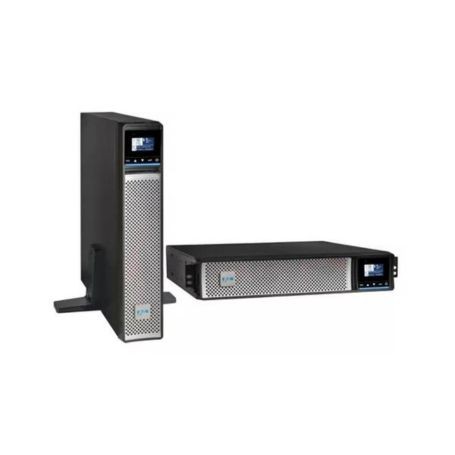

Eaton 5P1500RTNG2 5P G2 1440VA/1440W Rack/Tower UPS
Overview
The Eaton 5P1500RTNG2 is a 5P G2 line-interactive UPS rated at 1440VA/1440W, designed for protecting IT equipment, network infrastructure and other critical loads from power disturbances. It operates at 120V and provides eight NEMA 5-15R output receptacles. Eaton identifies this specific model as the rack/tower version with a pre-installed NETWORK-M3 Gigabit network card.
The UPS uses automatic voltage regulation (AVR) and provides a pure sine-wave output. It delivers approximately 5 minutes of runtime at full load and 15 minutes at half load, with Eaton's ABM battery-management technology designed to extend battery service life.
Designed for data-center, network and distributed-IT deployments, the 5P1500RTNG2 occupies 2U of rack space and can also be deployed in a tower configuration. Its pre-installed network management capability supports remote monitoring and management through Eaton's infrastructure-management ecosystem.
Key Features
- Provides 1440VA/1440W capacity with unity power factor
- 120V line-interactive UPS with pure sine-wave output
- Eight NEMA 5-15R output receptacles and NEMA 5-15P input
- Includes pre-installed NETWORK-M3 Gigabit network card
- 2U rack/tower design with approximately 5-minute full-load and 15-minute half-load runtime
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Series | 5P G2 |
| Model | 5P1500RTNG2 |
| Product Type | Line-Interactive UPS |
| UPS Capacity | 1440 VA / 1440 W |
| Topology | Line-Interactive |
| Nominal Input Voltage | 120V |
| Input Connection | NEMA 5-15P |
| Input Cord Length | 10 ft |
| Output Receptacles | 8 × NEMA 5-15R |
| Output Power Factor | 1.0 |
| Output Waveform | Pure Sine Wave |
| Rack Size | 2U |
| Full-Load Runtime | 5 min. |
| Half-Load Runtime | 15 min. |
| Battery Type | Valve Regulated Lead Acid (VRLA) |
| Battery Management | ABM Technology |
| Network Management | NETWORK-M3 pre-installed |
| Communication | USB (HID enabled), RS-232 |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Storage Temperature | 5° to 122°F (-15° to 50°C) |
| Relative Humidity | 20-90% non-condensing |
| Recommended Electrical Service | 15A, 120V |
| Minimum Rack Depth | 21 in |
| Dimensions (H × W × D) | 3.4 × 17.2 × 17.6 in |
| Weight | 50.7 lb |
| Certifications | CAN/CSA C22.2, ICES, IEC/EN 62040-1, UL 1778 |
| Compliance | ENERGY STAR, FCC Part 15 Class A, RoHS |
| UPC | 786687110910 |
