Detailed Specifications

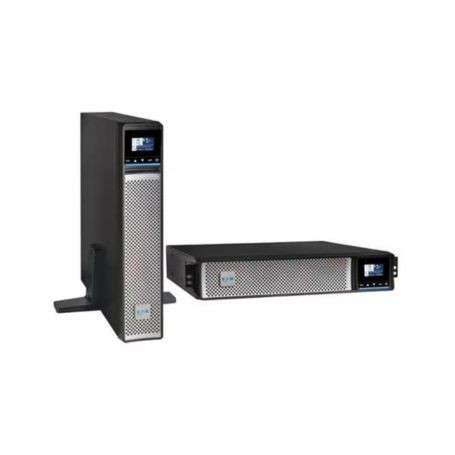

Eaton 5P2200RTNG2 5P G2 1950VA Rack/Tower UPS
Overview
The Eaton 5P2200RTNG2 is a 1950VA/1950W, 120V line-interactive UPS designed to provide battery backup and power conditioning for servers, networking equipment, storage systems, and other critical IT loads.
The UPS uses automatic voltage regulation (AVR) and provides pure sine wave output in battery mode. Its 1.0 output power factor allows the full 1950W capacity to support modern IT equipment, while Eaton's ABM battery management technology helps extend battery service life.
The 5P2200RTNG2 includes a pre-installed NETWORK-M3 Gigabit network management card for remote monitoring and control. Its 2U rack/tower form factor supports both rack and tower deployment, with six 5-15/20R outlets and one L5-20R outlet.
Key Features
- 1950VA/1950W capacity with 1.0 power factor provides full rated power for modern IT loads.
- 120V line-interactive topology with AVR regulates input voltage while reducing unnecessary battery transfers.
- Pure sine wave output in battery mode supports sensitive servers, networking equipment, and other critical loads.
- Pre-installed NETWORK-M3 Gigabit network card enables remote UPS monitoring and management.
- 2U rack/tower design with 7 output receptacles supports flexible deployment in data centers, network rooms, and edge environments.
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Model | 5P2200RTNG2 |
| Product Type | Line-Interactive UPS |
| Series | 5P G2 |
| UPS Topology | Line-Interactive |
| VA Rating | 1950 VA |
| Power Rating | 1950 W |
| Nominal Input Voltage | 120V |
| Nominal Output Voltage | 120V |
| Input Plug | NEMA 5-20P |
| Output Receptacles | 1 × L5-20R, 6 × 5-15/20R |
| Output Power Factor | 1.0 |
| Output Waveform | Pure Sine Wave |
| Input Frequency | 50/60 Hz |
| Battery Type | VRLA |
| Battery Management | ABM Technology |
| Full-Load Runtime | 4 min. |
| Half-Load Runtime | 12 min. |
| Network Management | NETWORK-M3 Pre-Installed |
| Communication | USB HID, RS-232, Network |
| Rack Size | 2U |
| Dimensions | 3.4 × 17.2 × 23.7 in |
| Weight | 65.3 lb |
| Input Cord Length | 10 ft |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Warranty | Eaton Limited Warranty |
