Eaton SMART1500RXLTAA Line-Interactive Uninterruptible Power Supply UPS

Eaton SMART1500RXLTAA Line-Interactive Uninterruptible Power Supply UPS

Overview

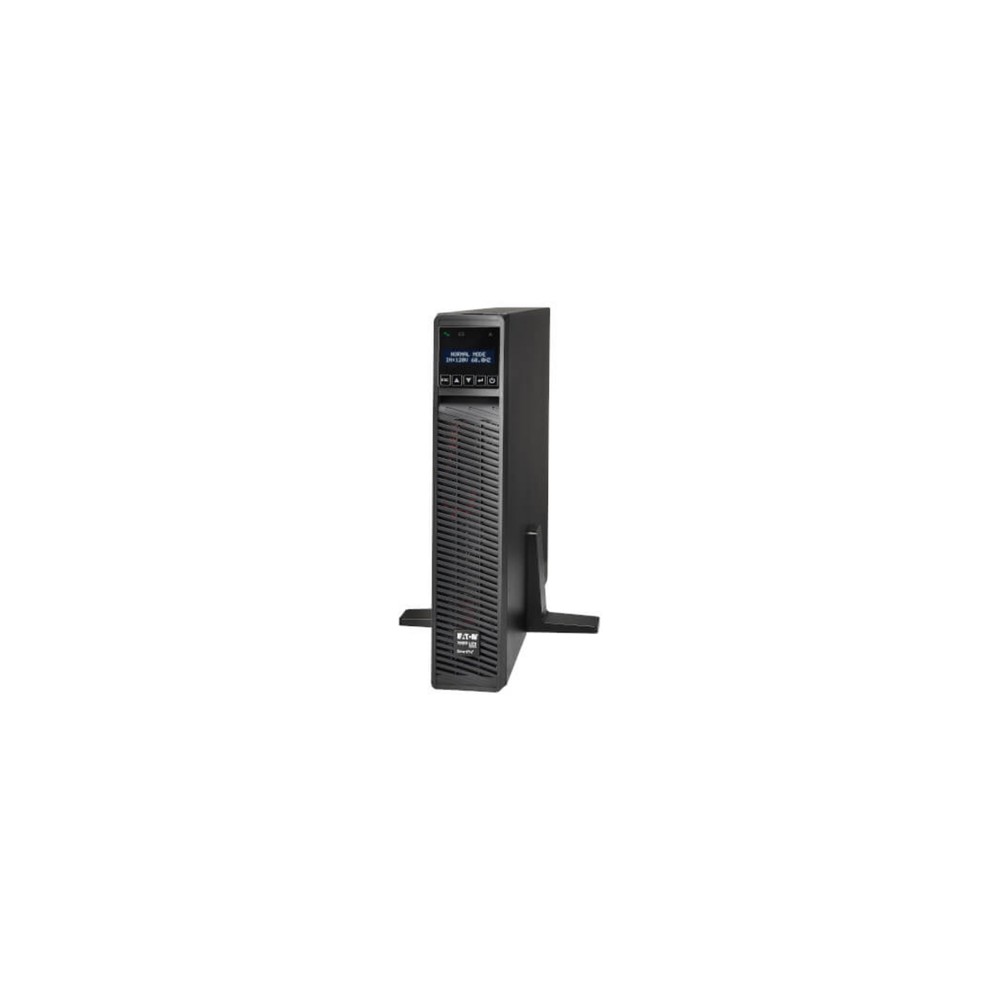

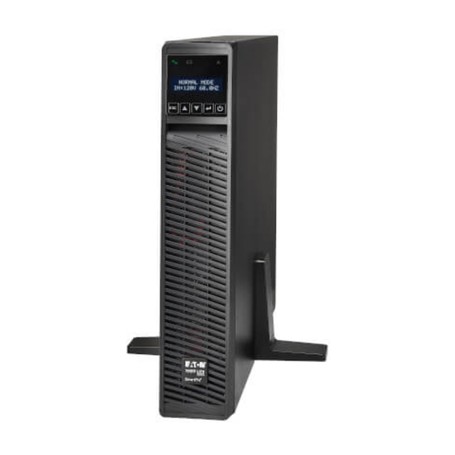

The Eaton Tripp Lite Series SMART1500RXLTAA is a 2U rackmount/tower line-interactive uninterruptible power supply (UPS) providing a full 1440VA / 1440W power capacity with unity power factor ($PF = 1.0$). Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchasing, this heavy-duty power protection system is built for critical IT environments, including enterprise server rooms, telecommunications hubs, networks, distributed IT setups, and mission-critical edge structures.

Featuring automatic voltage regulation (AVR), the SMART1500RXLTAA consistently dynamically corrects low-voltage brownouts down to 80V and high-voltage overvoltages up to 151V back to regulated nominal 120V output without draining the internal batteries. This battery preservation mechanism reduces runtime strain on its high-capacity internal valve-regulated lead-acid (VRLA) modules, ensuring optimal performance when utility power falls out entirely. The unit outputs a pure sine wave waveform under both line and battery operation to ensure complete compatibility with demanding active-PFC enterprise power supplies and sensitive technical equipment.

The structural engineering of this platform provides scalable protection. It supports the integration of up to four optional external battery modules (BP48VRXLTAA) via a dedicated rear-panel connector to dramatically boost runtime configurations for uninterrupted performance over prolonged blackout situations. Network visibility is manageable through integrated USB and DB9 serial monitoring interfaces, alongside an open expansion port compatible exclusively with the WEBCARDLXE network management card (sold separately) for secure, browser-based IP remote reboots, automatic configuration profiles, and detailed power health reporting.

Key Features

• Unity power factor supplies a full 1440W output to maximize density per rack unit.

• Broad line-interactive AVR tracking conditions power across an 80V to 151V window.

• Pure sine wave tracking delivers steady, premium power for active-PFC hardware.

• External battery module expansion support bridges prolonged power drop periods.

• Full TAA compliance matches municipal procurement requirements for GSA scheduling.

Specifications
