Detailed Specifications

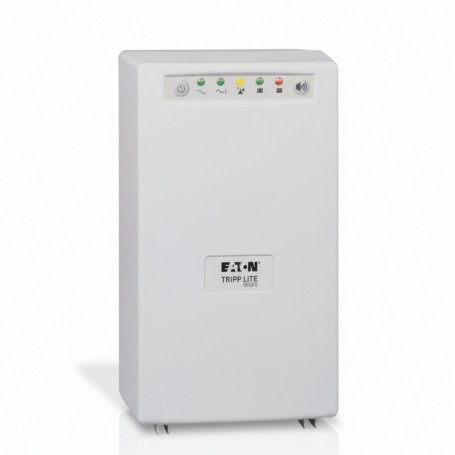

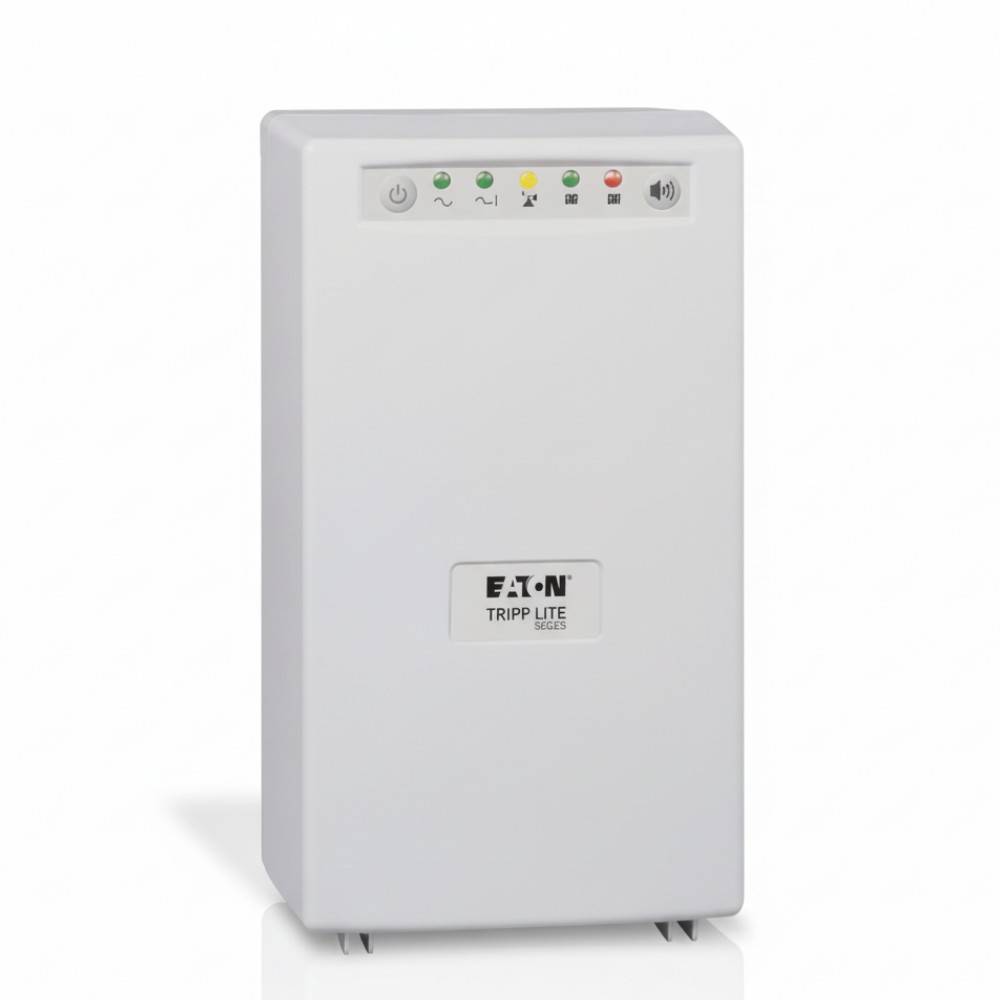

Eaton SMX1200XLHGL 1 kVA 750W Medical Grade Line Interactive UPS
Overview
The Eaton SMX1200XLHGL is a tower-form uninterruptible power supply engineered for healthcare, laboratory and patient-care-vicinity applications where compliance, isolation and reliability matter. Rated at 1 kVA (approx. 750 W real output) with 230 V nominal output, it supports critical medical and lab equipment through short mains interruptions and brownoutsIt uses a line-interactive topology, includes an internal lithium-iron-phosphate (LiFePO₄) battery rated for ~10,000 cycles (many times the lifespan of traditional lead-acid batteries), and corrects undervoltage and overvoltage without consuming battery life. A key differentiator is its full isolation transformer with Faraday shield - this provides full galvanic isolation of the output, suppresses common-mode noise, and limits leakage current to under 100 µA, making it suitable for patient-care environments. Six hospital-grade IEC C13 outlets provide both battery backup and surge protection, while the unit meets UL 60601-1 and EN 60601-1-2:2015 (4th Edition) standards when plugged into hospital-grade outlets×allowing placement in patient-care zonesIn real-world deployment this UPS is ideal for small medical carts, monitoring stations, imaging accessories, or lab instruments where you need clean, isolated 230 V backing and you cannot tolerate high leakage currents or common-mode noise. The LiFePO₄ battery offers long life and reduced maintenance compared with older UPS systems, making it also suitable for environments where battery-service interventions are disruptive.
Key Features
1 kVA / 750 W output capacity at 230 V - supports essential medical/lab equipment during mains outages.
Full-isolation transformer with Faraday shield and cumulative leakage current < 100 µA, enabling use in patient-care vicinities.
LiFePO₄ battery technology rated for ~10,000 cycles, extending lifetime and reducing maintenance overhead.
Compliant with UL 60601-1 and EN 60601-1-2:2015 (4th Edition) when used with hospital-grade outlet; six hospital-grade IEC C13 outlets included.
Technical Specifications
| Specification | Detail |
|---|
| Brand | Eaton |
| Part Number | SMX1200XLHGL |
| Product Type | Medical-Grade Line-Interactive UPS (230 V) |
| Key Specification | Output: 1 kVA / 750 W |
| Key Specification | LiFePO₄ internal battery, ~10,000 cycles |
| Key Specification | Full isolation transformer with < 100 µA leakage |
| Output Voltage | 230 V nominal |
| Number of Outlets | 6 × IEC C13 (hospital-grade) |
| Runtime Approx. | ≈11 minutes at full load (750 W |
