Detailed Specifications

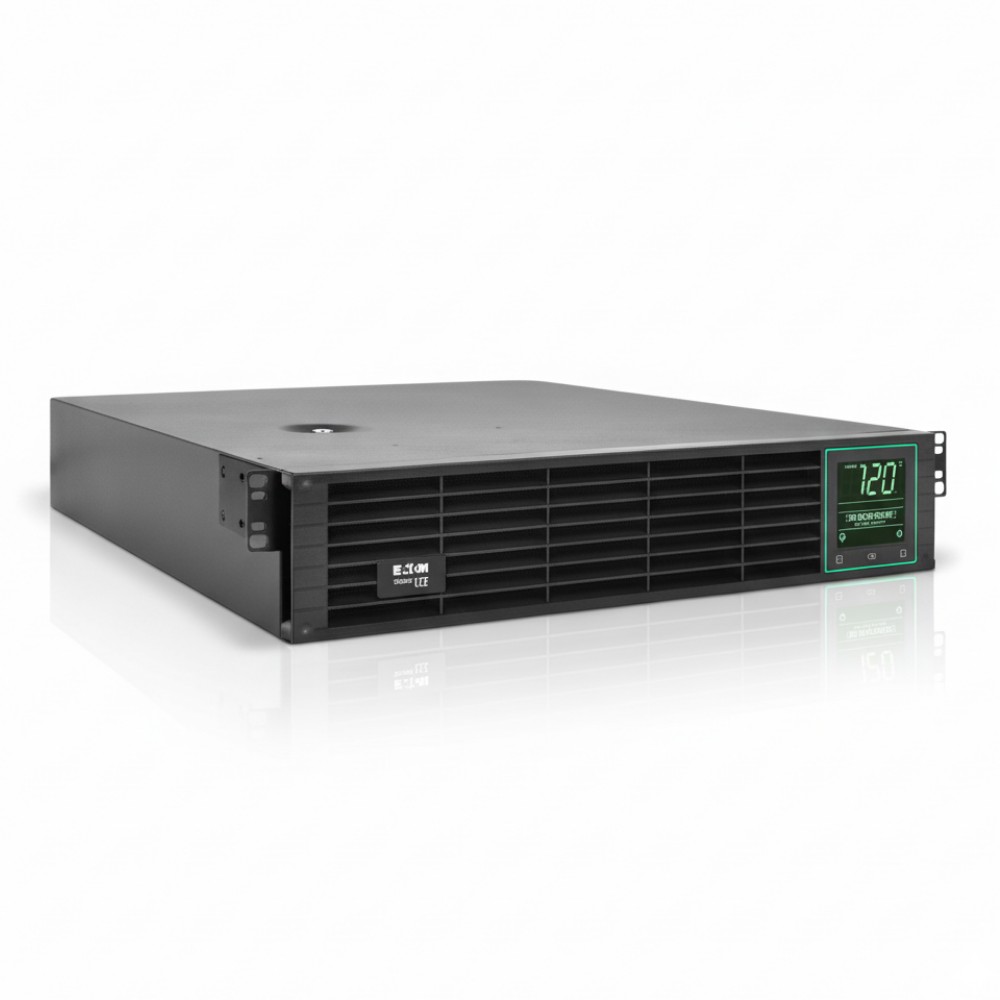

Eaton SMART1500RM2UL Tripp Lite 1 5 kVA 1 44 kW Line Interactive UPS
Overview
The Eaton SMART1500RM2UL is a 1.5 kVA (1500 VA) / 1.44 kW line-interactive uninterruptible power supply (UPS), designed for rack-mount or tower deployment in technical environments where space is limited but protecting critical gear matters. It delivers pure-sine output×important when powering servers, storage or network switches×and includes automatic voltage regulation (AVR) to correct brownouts/over-voltages without shifting to battery prematurely. In practical terms, you'd install the SMART1500RM2UL in a 2U space of a 19″ rack (or use the included tower configuration) in a branch office, small data-closet or equipment rack. It features a LiFePO₄ battery chemistry that offers longer lifecycle and faster recharge compared with typical lead-acid batteries×reducing maintenance and improving longevity. On the output side, eight NEMA 5-15R outlets provide standard power receptacles, with two of those configurable as "switched outlets" to allow remote reboot or selective load shedding. A high efficiency rating (~97% line-mode) reduces heat and lowers operating costs.Overall, this UPS fits engineers who need a reliable, compact backup solution for supporting a small equipment stack of servers, network gear and attached devices×especially where space is constrained and you want future-proof battery life and remote monitoring capability.
Key Features
1.44 kW output with pure-sine waveform gives full wattage support for rack equipment in a compact 2U unit.
LiFePO₄ (lithium) battery offers extended lifecycle (more charge/discharge cycles) and faster recharge compared to lead-acid.
Two switched outlets allow remote reboot or selective power control of less-critical loads, preserving battery for key devices.
Rack/tower convertible 2U form factor with LCD interface, USB/DB9 ports and optional network card slot for monitoring and management.
Technical Specifications
| Specification | Detail |
|---|
| Brand | Eaton |
| Part Number | SMART1500RM2UL |
| Product Type | Line-Interactive UPS (Rack/Tower) |
| Key Specification | 1500 VA / 1440 W output capacity |
| Key Specification | LiFePO₄ battery chemistry |
| Key Specification | Pure sine wave output, AVR support |
| Management | LCD front panel, USB & DB9 ports, optional network card slot |
| Power Requirements | 120 V nominal input (single-phase) |
| Rack Form Factor | 2U rack/tower convertible |
| Lifetime / Warranty | 5-year limited warranty |
