ECO1500LCD - Line-Interactive UPS 1440 VA 120 V
Overview

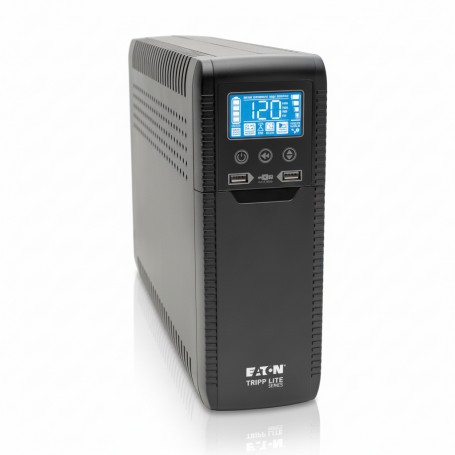

The Eaton ECO1500LCD is a line-interactive uninterruptible power supply (UPS) intended for 120 V AC single-phase protection of small IT and electronics equipment. It is deployed by IT engineers, facilities teams, and infrastructure technicians to maintain continuity of operation for servers, workstations, networking gear, and peripheral devices during utility power disturbances. The ECO1500LCD mitigates blackouts, brownouts, surges, and line noise, helping prevent data loss and hardware faults by supplying battery-derived power during outages.
This UPS supports 1440 VA / 900 W output capacity, delivering typical runtime of approximately 12 minutes at half load and around 3 minutes at full load, sufficient for controlled shutdown or bridging to standby generators. It includes automatic voltage regulation (AVR) to stabilize undervoltage conditions without immediately engaging the battery, extending battery life and reducing unnecessary switchover operations.
Placement is tower-oriented, suitable for standalone use in network closets, branch office server racks (on shelves), and distributed IT equipment closets where 120 V service is standard and rack height is limited. The form factor supports flexible positioning but is not designed for direct 19-inch rack mounting without accessory hardware.
The UPS includes a front-panel LCD display that reports operating state, load level, battery charge, frequency, and estimated runtime, enabling on-site status verification. Connectivity is provided via a USB-B port for local monitoring and integration with Eaton's PowerAlert software for safe unattended shutdowns under extended outages.
A practical deployment example is protecting a small server, edge router, and NAS in a branch office closet. During a brief mains interruption, the ECO1500LCD sustains critical IT loads long enough to initiate controlled shutdown scripts or maintain operations until backup generation comes online.
This unit is not recommended for high-availability core data center racks requiring managed PDUs, extended runtime, or network-based UPS management. It also lacks hot-swappable external battery options and per-outlet control, limiting use in environments with stringent redundancy or remote management requirements.
Key Features
- Line-interactive UPS with AVR for brownout correction
- 1440 VA / 900 W output capacity at 120 V AC
- (5) battery-backed + (5) surge-only NEMA 5-15R outlets
- Front LCD shows voltage, load, battery, runtime
- USB-B port for local monitoring and shutdown alerts
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Part Number | ECO1500LCD |
| Product Type | Line-Interactive UPS |
| Output Capacity | 1440 VA / 900 W |
| Topology | Line-Interactive with AVR |
| Input Voltage | 120 V AC |
| Input Frequency | 50/60 Hz |
| Output Voltage Regulation (Line) | +18% / -13% |
| Output Voltage Regulation (Battery) | ±10% |
| Output Waveform | Sine (AC mode), PWM sine (battery) |
| Output Receptacles | (10) NEMA 5-15R (5 battery & surge, 5 surge-only) |
| Transfer Time | ~6 ms |
| Battery Type | VRLA sealed lead-acid |
| Runtime (Half Load) | ~12 min |
| Runtime (Full Load) | ~3 min |
| Battery Recharge Time | ~7 hours |
| Communications | USB-B port |
| Display | Front LCD |
| Surge Suppression | 316 Joules |
| Dimensions (H×W×D) | 11" × 3.9" × 16.1" |
| Weight | ~26.4 lb |
| Certifications | ENERGY STAR, UL Listed, RoHS |
| Warranty | 3-year limited |
