Detailed Specifications

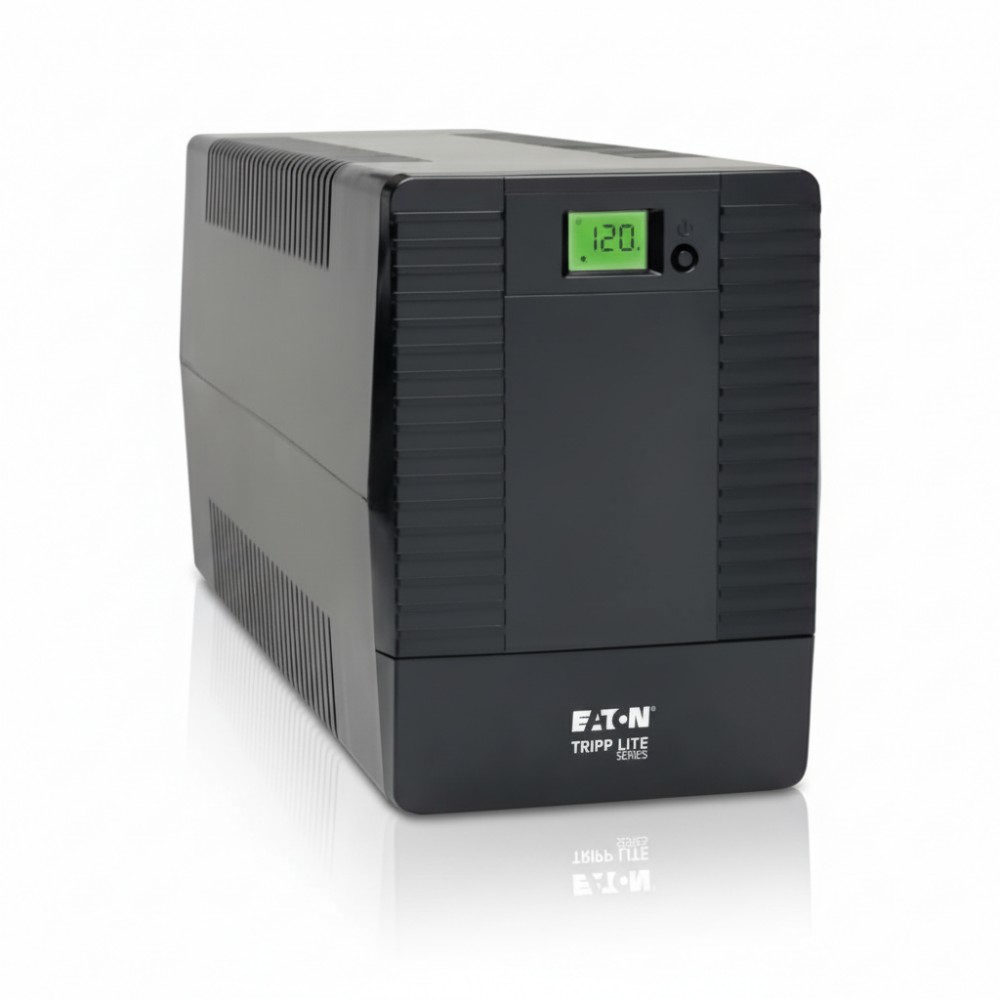

Eaton SMART750TSU - Line-Interactive UPS
Overview :
The Eaton SMART750TSU is a 750 VA (600 W) line-interactive uninterruptible power supply (UPS) designed for small networks, wiring closets, signage systems and desktop infrastructure. It features automatic voltage regulation (AVR) capable of correcting input voltages as low as 89 V and as high as 145 V back to nominal 120 V without switching to battery mode. It provides eight NEMA 5-15R outlets (six with battery backup plus two surge-only) and supports safe unattended shutdown via USB and RS-232 monitoring. Its compact tower form factor makes it suitable for office floor, edge or small-data-room installations where space is limited and full rack infrastructure is not required.
Key Features
Supports 750 VA / 600 W output capacity
AVR corrects brownouts & over-voltages (89 V-145 V)
LCD touchscreen displays voltage, load, battery status
95 % energy-efficiency reduces wasted heat
Specifications :
| Spec | Value |
|---|
| Brand | Eaton |
| Part Number | SMART750TSU |
| Product Type | Line-interactive UPS |
| Output Capacity (VA) | 750 VA |
| Output Capacity (Watts) | 600 W |
| Output Voltage | 120 V AC |
| Power Factor | 0.8 |
| Runtime at Full Load | 4 minutes (approx) |
| Runtime at Half Load | 13 minutes (approx) |
| Input Voltage Range | 120 V nominal (supports brownout/overvoltage correction) |
| Voltage Regulation (Battery Mode) | ±10 % |
| Transfer Time (Line-to-Battery) | 6 ms typical |
| Number of Outlets | 8 × NEMA 5-15R (6 battery-&-surge + 2 surge-only) |
| Form Factor (HxWxD) | 7.5 in × 5.5 in × 15 in |
| Weight | 23.1 lbs |
| Efficiency | >95 % at full load |
| Operating Temperature | 32 °F to 104 °F (0 °C to 40 °C) |
