Detailed Specifications

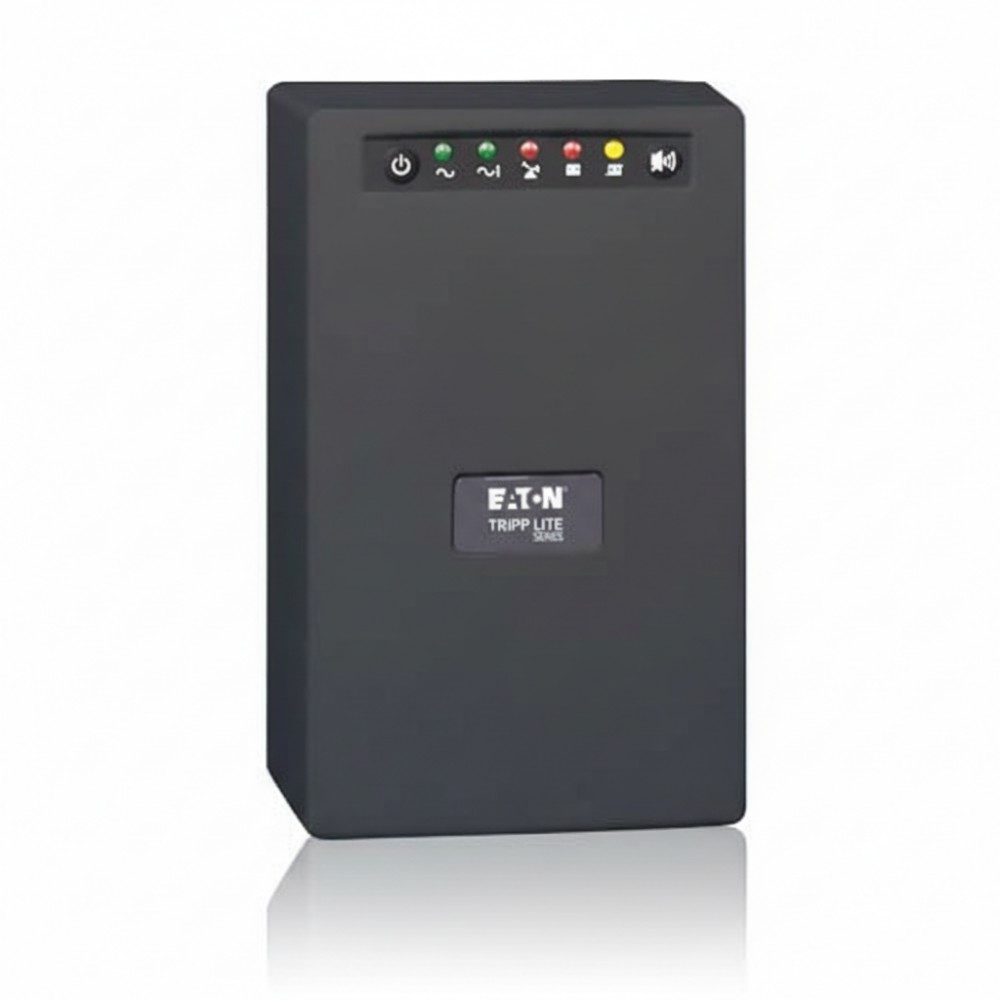

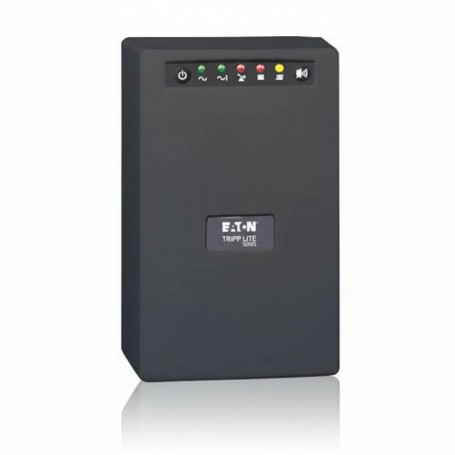

Eaton OMNIVSINT1500XL - Line-Interactive UPS, 230 V
Overview :
The Eaton OMNIVSINT1500XL is a 1.5 kVA (940 W) line-interactive UPS designed for engineers deploying critical infrastructure protection in regional offices, small data closets, or edge computing nodes. It delivers regulated 230 V output while correcting input brownouts down to 151 V and overvoltages up to 282 V without drawing battery power, and supports hot-swappable battery cartridges for minimal downtime. With eight IEC C13 outlets and integrated USB communication, it fits just as well in a branch-office tower-style form factor as in a compact equipment rack using the optional wall-mount kit. The unit integrates with Eaton/Tripp Lite PowerAlert monitoring software for unattended shutdown and runtime extension via compatible external battery packs.
Key Features :
1.5 kVA (940 W) output capacity at 230 V
Automatic voltage regulation (151 V to 282 V input range)
Eight IEC C13 outlets with surge suppression and AVR support
Hot-swappable VRLA battery cartridges with runtime expandability
USB interface for monitoring and safe shutdown
Specifications :
| Specification | Value |
|---|
| Brand | Eaton |
| Part Number | OMNIVSINT1500XL |
| Product Type | Line-Interactive UPS |
| Output Capacity | 1500 VA / 940 W |
| Nominal Input Voltage | 230 V AC |
| Input Current (Maximum Load) | 5 A |
| Output Voltage Regulation (Line Mode) | -18% / +8% |
| Output Voltage Regulation (Battery) | ±5% |
| Runtime at Full Load | 4.5 min (940 W) |
| Runtime at Half Load | 13 min (≈470 W) |
| DC System Voltage | 24 V |
| Typical Efficiency @ 100% Load | 97% |
| Physical Dimensions (H × W × D) | 15.6 in × 10.4 in × 10.8 in (shipping container) |
| Unit Weight | 32 lb |
| Transfer Time | 2-4 ms |
| Operating Temperature Range | 32 °F to 104 °F (0 °C to 40 °C) |
