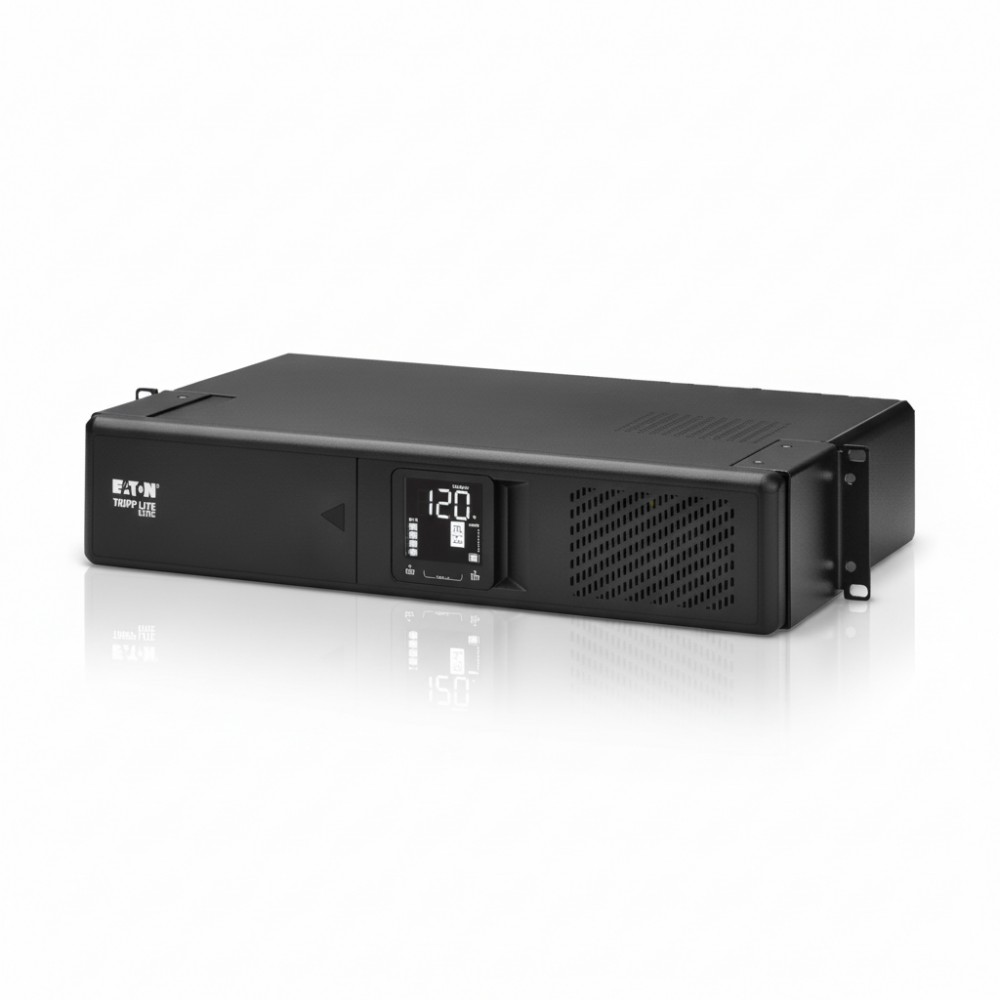

Eaton SMART1000LCDNC - 1000VA/750W Line-Interactive UPS
Overview
The Eaton SMART1000LCDNC is a line-interactive UPS with integrated cloud monitoring, designed for protecting IT, networking, and edge equipment in 120 V single-phase environments. It is deployed by IT administrators and facilities teams who require both local power protection and remote visibility into UPS status and site power conditions without deploying separate network management cards or software platforms.
The unit provides 1000 VA / 750 W output capacity with automatic voltage regulation (AVR), stabilizing voltage during brownouts and overvoltage conditions without switching to battery. This preserves battery capacity for true outages while maintaining continuous operation of connected devices such as switches, routers, POS systems, and small servers.
The SMART1000LCDNC is built in a 2U rackmount/tower convertible chassis, supporting deployment in standard 19″ racks or standalone configurations in branch offices, retail environments, and IDF closets. The compact depth and moderate weight allow installation in shallow racks or wall-mount enclosures where space constraints limit larger UPS systems.
A key integration element is the embedded cloud monitoring platform, accessible via browser or mobile app, enabling 24/7 remote monitoring without on-prem SNMP infrastructure. The system supports NFC-based setup, load bank control, and remote reboot capability, making it suitable for distributed edge deployments where on-site IT presence is limited.
In deployment, this UPS provides short runtime (~7 min at half load, ~2 min at full load) to bridge short outages or enable controlled shutdown. It does not support external battery modules, making it unsuitable for applications requiring extended runtime or generator-independent backup duration.
Key Features
- 1000 VA / 750 W line-interactive UPS with AVR
- Integrated cloud monitoring with mobile/web access
- 2U rack/tower chassis for flexible deployment
- Ten NEMA 5-15R outlets for load distribution
- NFC setup with remote load bank control capability
Specifications
| Specification | Detail |
|---|
| Brand | Eaton |
| Part Number | SMART1000LCDNC |
| Product Type | Line-Interactive UPS |
| VA Rating | 1000 VA |
| Wattage Capacity | 750 W |
| Output Topology | Line-interactive with AVR |
| Output Voltage | 120 V AC |
| Output Receptacles | (10) NEMA 5-15R |
| Output Current | Up to 8.4 A |
| Input Connection | NEMA 5-15P |
| Input Voltage | 120 V AC |
| Input Frequency | 50/60 Hz |
| Input Cord Length | 5 ft |
| Battery Type | Sealed lead-acid (VRLA) |
| Recharge Time | ~8 hours (10%-90%) |
| Runtime (Full Load) | ~2 minutes (750 W) |
| Runtime (Half Load) | ~7 minutes |
| Communications | Cloud monitoring interface |
| Network Access | Ethernet/cloud (app + browser) |
| Load Management | Switchable load banks |
| Form Factor | Rackmount / Tower |
| Rack Height | 2U |
| Dimensions (H×W×D) | 3.43″ × 17.2″ × 11″ |
| Weight | 23.6 lb |
| Operating Temperature | 0 °C to 40 °C |
| Humidity | 0-90% non-condensing |
| Circuit Breaker | 10 A |
| Certifications | UL 1778, CSA, FCC Class B, NOM, RoHS |
