Detailed Specifications

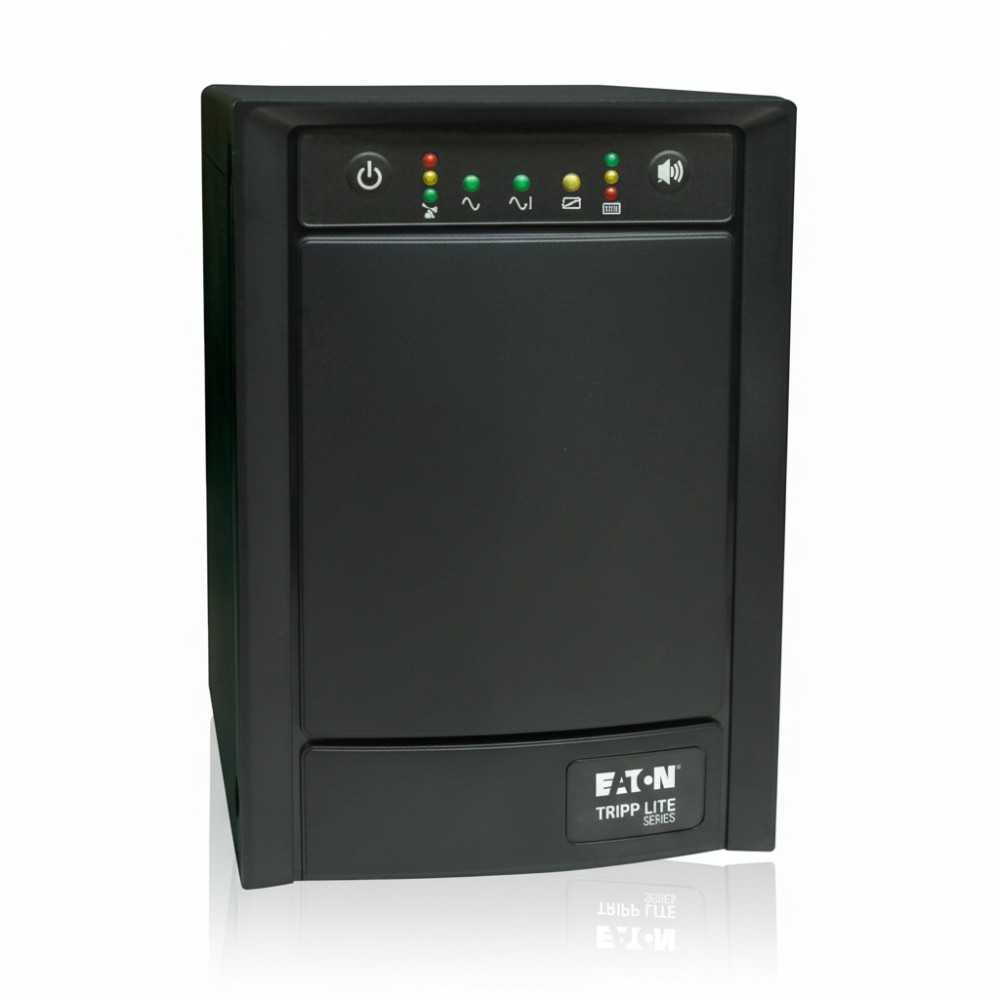

Eaton SMART1050SLT - Line-Interactive UPS 1.05 kVA
Overview :
The Eaton SMART1050SLT is a line-interactive uninterruptible power supply (UPS) rated at 1.05 kVA (650 W) designed for IT engineers supporting branch, retail, VoIP or small data-network environments. It solves the problem of abrupt power loss, brownouts, surges and line-noise by instantly switching into battery mode and regulating voltage while providing sine-wave output. The unit features internal hot-swappable VRLA batteries that deliver approximately 19 minutes at half-load (≈325 W) and 7 minutes at full-load, permitting orderly shutdown of connected equipment. It supports automatic voltage regulation (AVR) across an input range of 83-145 V and eight NEMA 5-15R load-outlets, making it suitable for deployment in branch-office racks or slender tower footprints. Integration with Eaton's PowerAlert software and optional SNMP/web-cards provides remote monitoring, alerting and controlled shutdown in environments requiring unattended operation.
Key Features :
1.05 kVA (650 W) capacity with pure sine-wave battery output
Automatic Voltage Regulation (AVR) corrects 83 V to 145 V input range
Eight NEMA 5-15R output receptacles with surge (690 J) and noise filtering
USB + DB9 communications plus optional SNMP/Web card support
Hot-swappable internal VRLA battery cartridge (RBC24-SLT)
Specifications :
| Specification | Value |
|---|
| Brand | Eaton |
| Part Number | SMART1050SLT |
| Product Type | Line-Interactive UPS |
| Output Capacity (VA) | 1050 VA |
| Output Capacity (Watts) | 650 W |
| Input Voltage(s) Supported | 100 V / 110 V / 120 V |
| Input Cord Length | 6 ft (1.83 m) |
| Output Receptacles | 8 × NEMA 5-15R |
| Runtime at Full Load | ~7 minutes (@650 W) |
| Runtime at Half Load | ~19 minutes (@~325 W) |
| Joule Rating (Surge Suppression) | 690 J |
| Dimensions (H × W × D) | 10.20 in × 6.80 in × 13.20 in (259.1 mm × 172.7 mm × 335.3 mm) |
| Weight | 36 lbs (16.3 kg) |
| Operating Temperature Range | 32 °F to 104 °F (0 °C to 40 °C) |
