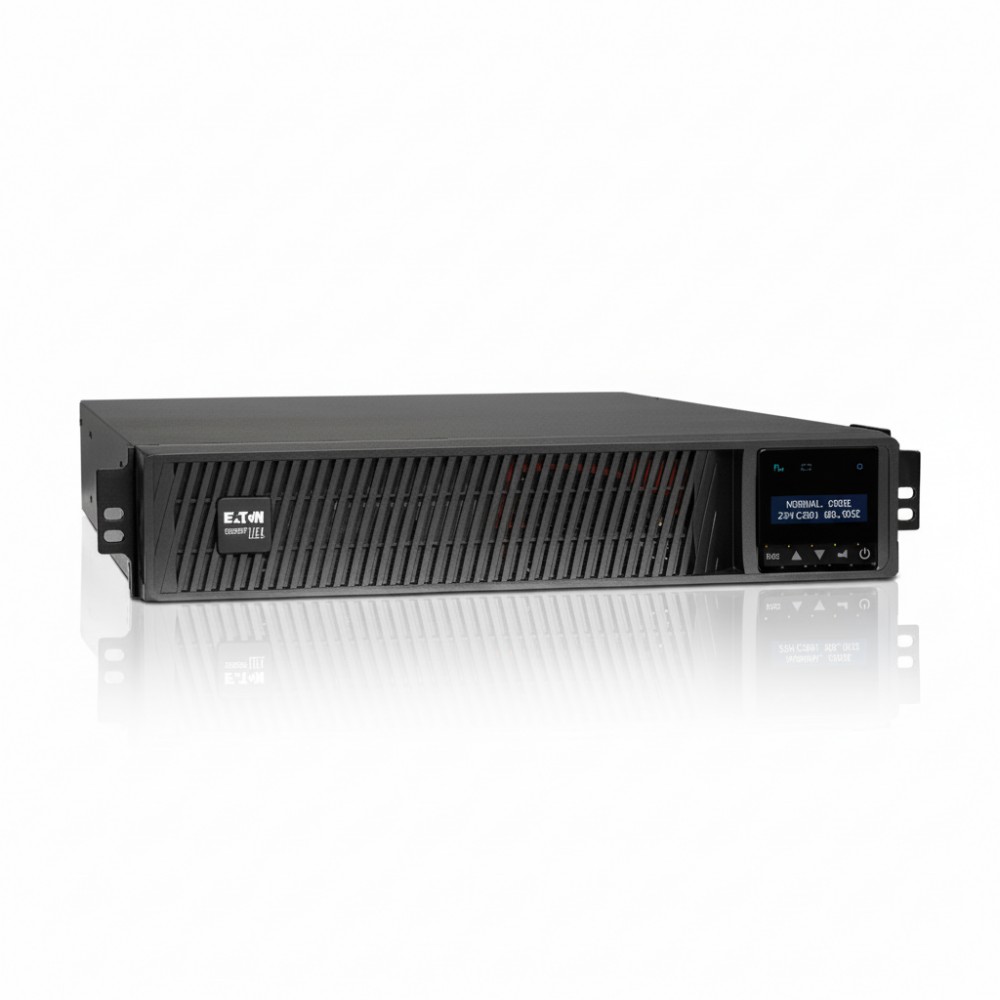

Eaton SMART1000RMXL2U - 1000VA/900W Line-Interactive UPS
Overview
The Eaton SMART1000RMXL2U is a line-interactive UPS designed for rack-mounted IT, networking, and telecom equipment operating in 120 V single-phase environments. It is deployed by infrastructure engineers to protect servers, switches, and storage systems from short outages, voltage sags, and overvoltage conditions. The unit uses automatic voltage regulation (AVR) to stabilize input power without unnecessary battery usage, preserving runtime capacity for actual outages.
This model provides 1000 VA / 900 W output capacity with pure sine-wave output, supporting modern IT loads that require stable waveform characteristics. AVR maintains usable output across a wide input range, while fast transfer to battery (~4 ms) ensures continuity during power loss events.
The UPS is built in a 2U rackmount/tower convertible chassis, designed for standard 19″ racks in IDF, MDF, and edge environments. It includes eight NEMA 5-15R outlets, supporting distributed device connections within a rack. The front LCD interface provides detailed operational data including load levels, voltage conditions, and battery status, assisting with commissioning and diagnostics.
Integration includes USB and DB9 serial interfaces, an EPO port, and an optional SNMP/Web network management card slot for remote monitoring and automated shutdown. The UPS also supports load segmentation, allowing selective reboot or load shedding of non-critical equipment to preserve runtime for priority systems.
In deployment, the SMART1000RMXL2U provides short-duration runtime (~6 minutes at full load, ~18 minutes at half load) for controlled shutdown or generator transfer. It supports external battery modules for extended runtime where required. It is not intended as a long-duration standalone backup solution without additional battery expansion.
Key Features
- 1000 VA / 900 W line-interactive UPS with AVR
- Pure sine-wave output for server and network loads
- 2U rack/tower chassis for 19″ rack deployment
- Eight NEMA 5-15R outlets with load segmentation
- USB, DB9, EPO and SNMP/Web card expansion slot
Specifications
| Specification | Detail |
|---|
| Brand | Eaton |
| Part Number | SMART1000RMXL2U |
| Product Type | Line-Interactive UPS |
| VA Rating | 1000 VA |
| Wattage Capacity | 900 W |
| Output Topology | Line-interactive with AVR |
| Output Waveform | Pure sine wave |
| Output Voltage | 110 / 115 / 120 V AC |
| Output Receptacles | (8) NEMA 5-15R |
| Load Segmentation | Yes (switchable load banks) |
| Input Connection | NEMA 5-15P |
| Input Voltage | 120 V AC |
| Input Cord Length | 10 ft |
| Transfer Time | ~4 ms |
| Surge Suppression | ~380 J |
| Battery Type | VRLA (sealed lead-acid) |
| Battery System Voltage | 48 V DC |
| Runtime (Full Load) | ~6.3 minutes |
| Runtime (Half Load) | ~18 minutes |
| Recharge Time | ~4.5 hours |
| External Battery Support | Yes (48 V EBM compatible) |
| Communications | USB, DB9 serial, EPO |
| Network Management | Optional SNMP/Web card |
| Form Factor | Rackmount / Tower |
| Rack Height | 2U |
| Dimensions (H×W×D) | 3.4″ × 17.2″ × 17.6″ |
| Weight | ~44.5 lb |
| Operating Temperature | 0 °C to 40 °C |
| Certifications | UL 1778, CSA, FCC, NOM |
