Eaton SMX700HG - 700 VA Line-Interactive UPS
Overview
The Eaton SMX700HG is a 230 V line-interactive uninterruptible power supply (UPS) designed to provide calibrated backup power and voltage regulation in environments where leakage current and electrical noise must be minimized, such as network closets, labs, and healthcare equipment areas. It is deployed by systems architects, infrastructure engineers, and IT facilities personnel to maintain continuity of connected equipment during short utility interruptions and to mitigate brownouts and overvoltage events.
This UPS delivers 700 VA / 450 W output capacity with built-in line-interactive voltage regulation, maintaining nominal 230 V output over an input range while conserving battery for extended outages. Its isolation transformer with Faraday shield reduces common-mode noise and leakage current to less than 100 μA, supporting sensitive electronics and medical devices when connected via hospital-grade outlets.

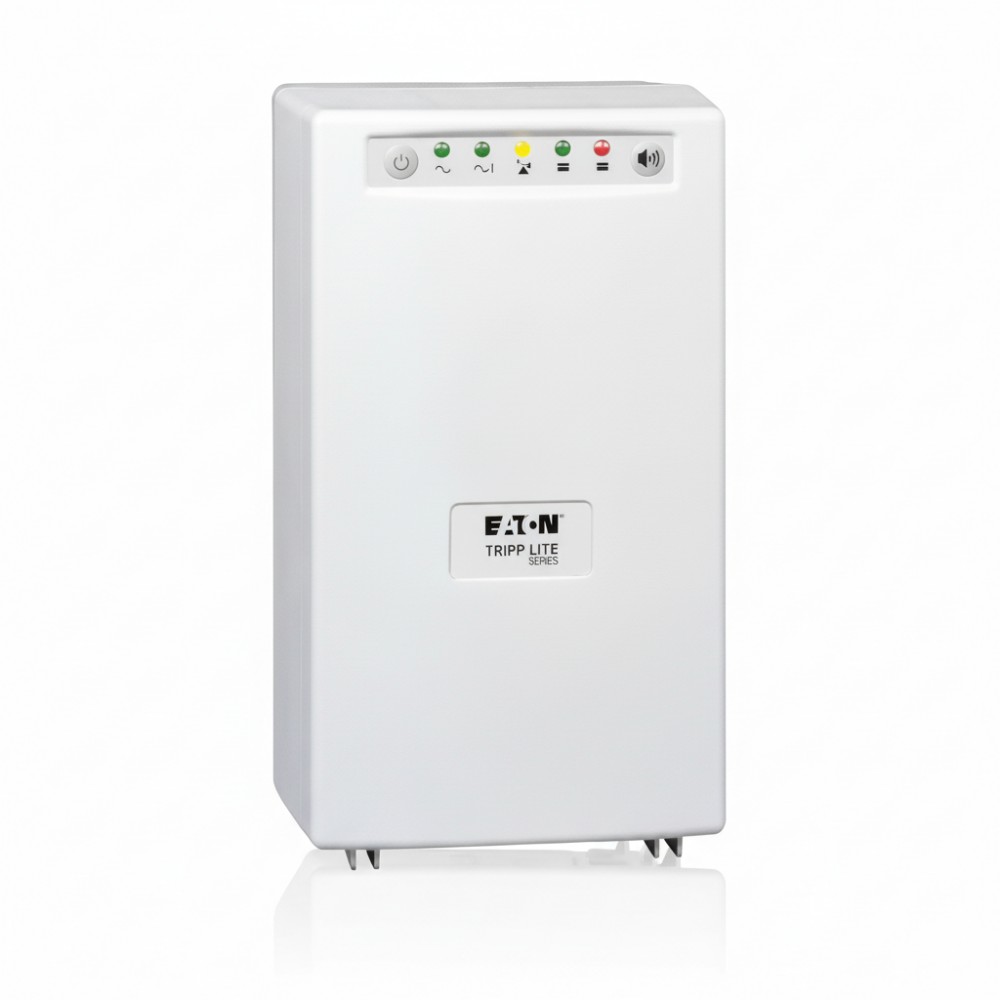

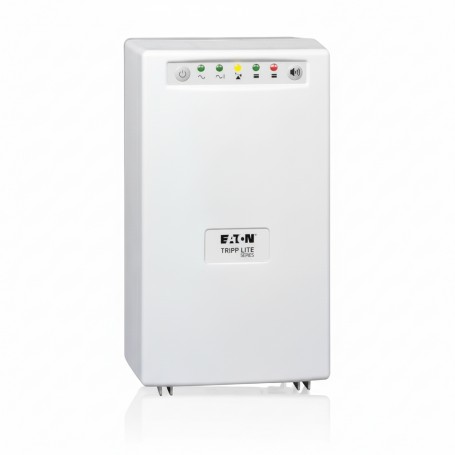

The SMX700HG is configured in a tower form factor, suitable for desktop, under-desk, or equipment cabinet deployments. It features six IEC320 C13 hospital-grade outlets and an IEC320 C14 inlet for input connection. Local status is visible via front-panel LEDs, and communications are supported over USB and DB9 serial ports for integration with power management software and automated shutdown scripts.
Runtime performance is balanced for targeted load levels: approximately 36 minutes at half load and 14.5 minutes at full rated load, allowing orderly shutdowns or transition to auxiliary power during extended outages. Recharging of the sealed lead-acid battery is achieved in under approximately 3.6 hours.
This model is not designed for continuous heavy cyclic battery use such as frequent mobile cart deployments where the UPS is repeatedly disconnected from AC mains. Use in such conditions can void the battery warranty.
Key Features
• 700 VA / 450 W line-interactive UPS topology
• Six hospital-grade IEC320 C13 outlets (230 V)
• Built-in isolation transformer with noise suppression
• USB + DB9 serial ports for monitoring/auto shutdown
• Typical runtime ~36 min (half) / ~14.5 min (full)
Technical Specifications
| Specification | Detail |
|---|
| Brand | Eaton |
| Part Number | SMX700HG |
| Product Type | Line-Interactive UPS |
| Output Capacity | 700 VA / 450 W |
| Nominal Output Voltage | 230 V AC |
| Output Outlets | 6 × IEC320 C13 (hospital-grade) |
| Input Connection | IEC320 C14 inlet |
| Runtime (Half Load) | ~36 min (≈225 W) |
| Runtime (Full Load) | ~14.5 min (≈450 W) |
| Surge Suppression | 340 joules (all modes) |
| Voltage Regulation | Line-interactive AVR 155-274 V range |
| Battery Type | Sealed lead-acid |
| Recharge Time | ~3.6 hours (10 % → 90 %) |
| Communication Ports | USB, DB9 serial |
| Isolation Transformer | Yes, Faraday shield |
| Leakage Current | <100 μA |
