Detailed Specifications

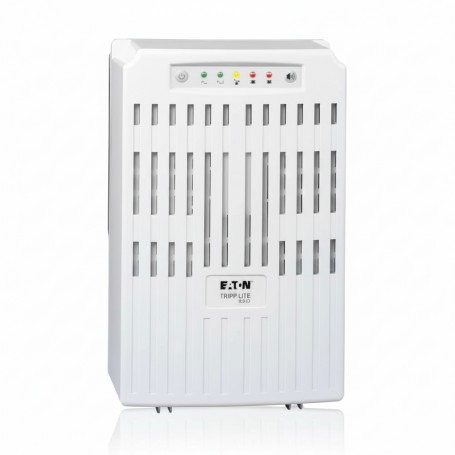

Eaton Tripp Lite SMART2200VS - Line-Interactive UPS 2.2 kVA / 1.6 kW
Overview :
The Eaton Tripp Lite SMART2200VS is a 2.2 kVA (1.6 kW) single-phase, line-interactive tower UPS designed for server, networking and telecommunications equipment used in branch office, edge or small data-centre environments. It delivers regulated 120 V output even when input voltage sags to 79 V or rises to 147 V, thus protecting connected hardware from brownout and over-voltage conditions. With hot-swappable VRLA batteries installed and a runtime of approximately 7 minutes at full load (1.6 kW) and about 19 minutes at half load, it supports orderly shutdown or continuity for moderate loads. The unit occupies a compact tower form-factor and features USB and serial communication ports plus a slot for optional network management cards, making it suitable for integration into remote monitoring platforms and managed IT infrastructures.
Key Features :
2.2 kVA / 1.6 kW output capacity in tower format
Automatic Voltage Regulation corrects 79 V-147 V input to 120 V output
Nine output receptacles including three individually controllable load banks
USB, DB9 serial ports and network-card slot for remote monitoring
Specifications
| Specification | Value |
|---|
| Brand | Eaton |
| Part Number | SMART2200VS |
| Product Type | Line-Interactive UPS |
| Output Capacity (VA) | 2200 VA |
| Output Capacity (Watts) | 1600 W |
| Nominal Input Voltage | 120 V AC |
| Input Voltage Range (AVR handling) | 79 V to 147 V |
| Runtime at Full Load | ~7 minutes (1.6 kW) |
| Runtime at Half Load | ~19 minutes (0.8 kW) |
| Output Receptacles | 7 × NEMA 5-15R, 2 × NEMA 5-20R |
| Communications Ports | 2 × USB, 2 × DB9 |
| Height | 14.20 in (≈361 mm) |
| Width | 9.20 in (≈234 mm) |
| Depth | 12.00 in (≈305 mm) |
| Unit Weight | 52.4 lb (≈23.8 kg) |
| Operating Temperature Range | 32 °F to 104 °F (0 °C to 40 °C) |
