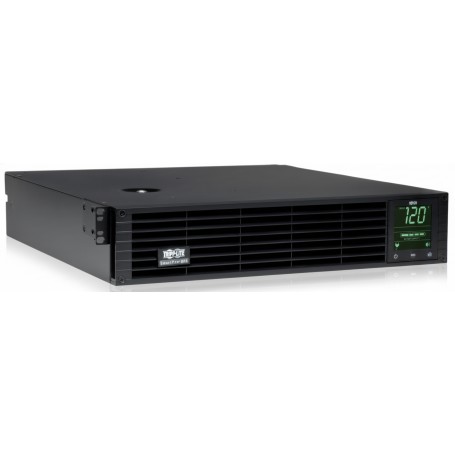

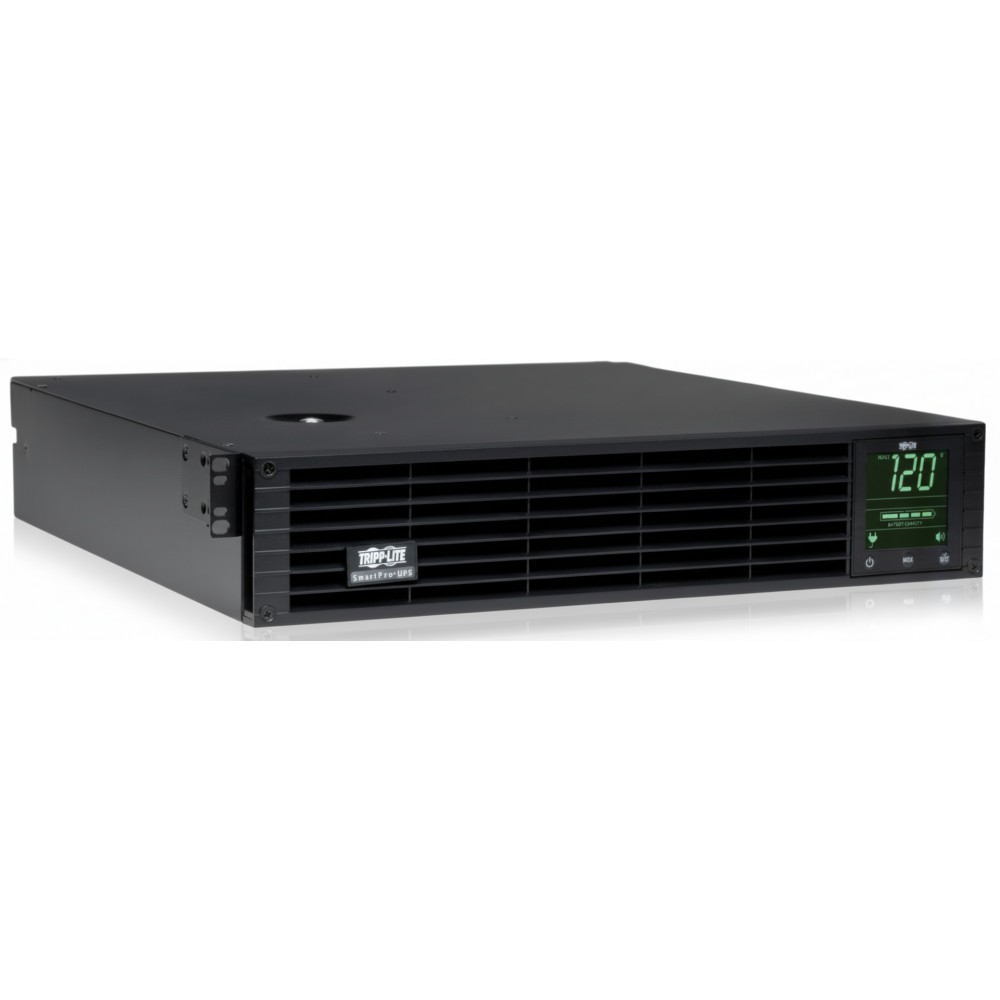

Eaton SM2200RMXL2UTAA - 2200 VA/1920 W Line-Interactive UPS
Overview
The SM2200RMXL2UTAA is a line-interactive uninterruptible power supply (UPS) built to deliver conditioned AC power and emergency battery backup for critical rack-mount IT, networking, and communications equipment operating on 120 V single-phase mains. It is compliant with the Federal Trade Agreements Act (TAA), making it suitable for U.S. government and GSA Schedule deployments where TAA adherence is mandatory. The UPS addresses short outages, voltage sags, swells, and transient noise, protecting loads until orderly shutdown or standby sources engage.
Rated for 2200 VA / 1920 W with sine-wave output and automatic voltage regulation (AVR), this unit corrects brownouts and overvoltage events without immediately discharging the batteries, preserving battery life for real outages. Its interactive LCD interface provides detailed power and health information, aiding operational visibility for commissioning and ongoing monitoring.
The SM2200RMXL2UTAA is designed in a 2U rackmount / convertible chassis for standard 19″ EIA rack installation or free-standing on equipment shelves in server rooms, IDFs, or distributed branch offices. Multiple receptacles and load banks allow flexible distribution to connected servers and network gear. Optional external battery packs (EBMs) extend runtime where longer backup is needed.
Connectivity includes USB HID, DB9 serial, EPO interface, and a slot for an optional network management card to enable SNMP/Web monitoring and automated shutdown scripting across enterprise management systems. This facilitates integration with centralized UPS monitoring platforms and event notifications.
In deployment practice, this UPS is used to bridge controlled shutdowns, finish data writes, or hand over to backup generators during utility interruptions. It should not be relied on as a long-duration power source without external battery expansion; extended runtime requirements should be met with optional battery packs or alternate UPS families.
Key Features
- TAA-compliant 2200 VA / 1920 W line-interactive UPS
- Unity power factor with sine-wave output
- Interactive LCD with detailed site & UPS status
- USB, DB9, EPO interfaces & network card slot
- Rack-mount/tower convertible 2U form factor
Specifications
| Specification | Detail |
|---|
| Brand | Eaton (Tripp Lite) |
| Part Number | SM2200RMXL2UTAA |
| Product Type | Line-Interactive UPS |
| VA Rating | 2200 VA |
| Wattage Capacity | 1920 W |
| Output Topology | Line-interactive with AVR |
| Output Waveform | True sine wave |
| Output Power Factor | 1.0 |
| Output Nominal Voltage | 120 V AC |
| Output Receptacles | (4) NEMA 5-15R, (4) NEMA 5-15/20R |
| Input Connection | NEMA 5-20P |
| Input Nominal Voltage | 120 V AC |
| Communications | USB HID, DB9 serial, EPO |
| Network Management | Optional card slot (WEBCARDLXE) |
| LCD | Interactive front display |
| Form Factor | Rackmount / Tower convertible (2U) |
| Rack Mount Kit | Included |
| Batteries | Internal VRLA (hot-swappable) |
| External Battery Support | Yes (BP48V24-2U / BP48V60RT3U options) |
| Runtime (50 % Load) | ~12 min (960 W) |
| Runtime (Full Load) | ~4.5 min (1920 W) |
| Internal Efficiency | ~96 % line mode |
| Transfer Time | Milliseconds (typical) |
| Operating Temp | 0 °C to 40 °C |
| Humidity | 20-95 % non-condensing |
| Certifications | UL 1778, FCC, RoHS, TAA compliant |
