Eaton SM2200RMXL2UP - 2200 VA/1920 W Line-Interactive UPS
Overview
The Eaton SM2200RMXL2UP is a line-interactive uninterruptible power supply (UPS) designed to protect servers, networking equipment, storage arrays, and communications infrastructure in 120 V AC installations where brief outages, voltage sags, and overvoltages must be managed. It's typically specified by IT infrastructure engineers, facilities managers, and network architects to enable controlled shutdown or bridge mains failures until standby power engages. Its topology corrects voltage anomalies and provides battery backup without the cost or overhead of an online double-conversion system.
Rated at 2200 VA / 1920 W with a pure sine-wave output, this UPS supports moderate to heavy IT loads and integrates automatic voltage regulation (AVR) to correct undervoltages and overvoltages without engaging battery discharge. Its interactive LCD interface offers detailed visibility into load, battery status, and mains conditions during normal and outage operations.

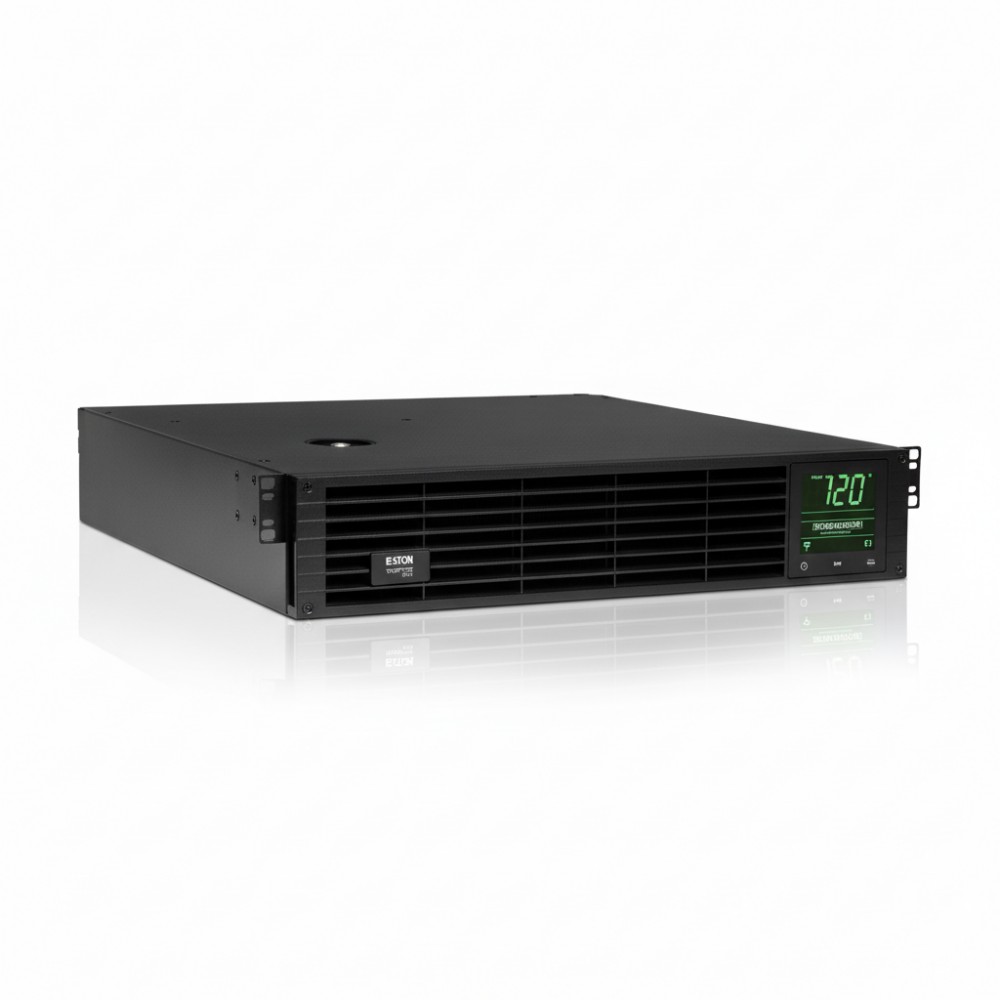

The SM2200RMXL2UP is architected in a 2U rack/tower convertible chassis, suitable for installation in standard 19″ EIA racks or as a free-standing unit on shelves or equipment racks in data centers, server closets, and branch office IT environments. The included rack mounting hardware facilitates deployment close to protected loads.
Integration includes USB and DB9 serial communications, support for an EPO (Emergency Power Off) interface, and a slot for optional SNMP/Web network management cards. These interfaces enable remote monitoring, automated scripts for orderly shutdowns, and centralized alerting via Eaton's management software or third-party platforms.
In practical deployments, the SM2200RMXL2UP protects critical IT gear where a short duration of backup is required to complete writes, hand over to standby power sources, or initiate clean system shutdown routines. It is not designed as a primary power source for extended outages without external battery expansion options. Careful load profiling during commissioning will inform runtime expectations and scalability planning.
Key Features
- 2200 VA / 1920 W line-interactive UPS with pure sine-wave output
- (4) NEMA 5-15R + (4) NEMA 5-15/20R battery-supported outlets
- Interactive LCD for real-time UPS and power status
- USB, DB9, EPO and optional SNMP/Web management slot
- 2U rack/tower convertible with hot-swappable batteries
Specifications
| Specification | Detail |
|---|
| Brand | Eaton |
| Part Number | SM2200RMXL2UP |
| Product Type | Line-Interactive UPS |
| VA Rating | 2200 VA |
| Wattage Capacity | 1920 W |
| Output Topology | Line-interactive with AVR |
| Output Waveform | Pure sine wave |
| Output Nominal Voltage | 110/120 V AC |
| Output Power Factor | ~0.87 |
| Output Receptacles | 4 × NEMA 5-15R, 4 × NEMA 5-15/20R |
| Input Connection | NEMA 5-20P |
| Input Nominal Voltage | 120 V AC |
| Communications | USB, DB9 serial, EPO |
| Network Management | Optional SNMP/Web card slot |
| Form Factor | 2U Rack/Tower |
| Rack Mount Kit | Included |
| Battery Type | Sealed lead-acid (VRLA) |
| Replaceable Battery | RBC94-2U |
| Weight | ~64 lb |
| Dimensions (H×W×D) | ~8.8″ × 21.7″ × 24″ |
| Efficiency (Line Mode) | ~96 % |
| Runtime (Approx) | ~13 min @ half load, ~4.5 min @ full load |
| Transfer Time | Typical (~5 ms) |
| Environmental | 0-95 % RH non-condensing |
| Noise Level | ≤45 dBA @ 1 m |
| Certifications | UL 1778, FCC Class A, RoHS, |
| Hot-Swappable Batteries | Yes |
