Detailed Specifications

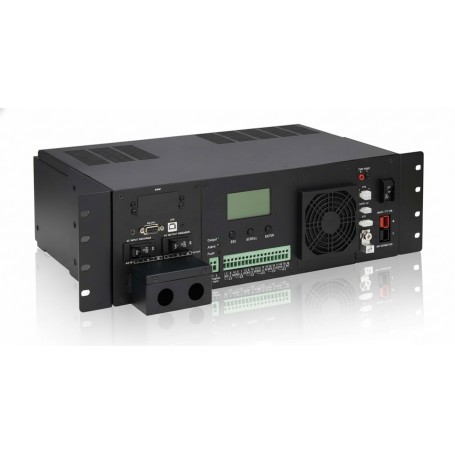

Eaton SMART1524ET - Extreme Temperature Line-Interactive UPS
Overview :
The Eaton SMART1524ET is a rack-mount line-interactive UPS designed for industrial, traffic, edge and outdoor deployments where ambient temperatures range from -40 °C to +80 °C. It provides a 120 V AC hard-wired input and output and supports battery backup via a 24 V DC battery bank for connected loads up to approximately 1200 W (with higher loads achievable at lower ambient temperatures). Ideal for network closets, base stations, remote surveillance sites or transportation infrastructure, the SMART1524ET fits into a standard 19-inch rack (3 U height) and a shallow depth of ~9.4 in to ease installation in compact enclosures. Its management options include RS-232, USB, and optional network interface (SNMP/SSH/Telnet) for remote monitoring and safe shutdown planning.
Key Features :
Supports hard-wired 120 V input/output with line, neutral and ground terminals
Designed for extreme ambient range from -40 °C to +80 °C maintaining specified output
Automatic voltage regulation (AVR) corrects brownouts as low as 88 V and overvoltages up to 152 V
Rack-mountable (3 U) shallow-depth enclosure (~9.45 in) for compact equipment racks
Specifications
| Specification | Value |
|---|
| Brand | Eaton |
| Part Number | SMART1524ET |
| Product Type | Line-interactive UPS |
| Rated Input Voltage | 120 V AC |
| Rated Input Current | 22 A maximum load |
| Output Capacity | 1500 VA / 1200 W (note higher output 1600 W at -40 °C to +55 °C) |
| Output Voltage Regulation | 120 V AC nominal, ±4 % on battery mode; -14%/+8% in line mode (factory) |
| Output Waveform | Pure sine wave |
| DC System Voltage | 24 V DC battery bank system |
| Operating Temperature Range | -40 °C to +80 °C |
| Depth (W × H × D) | 15.75 in (W) × 5.24 in (H) × 9.45 in (D) |
| Weight | 32.41 lbs |
| Rack Height | 3 U |
| Surge Energy Rating | 474 J |
