Detailed Specifications

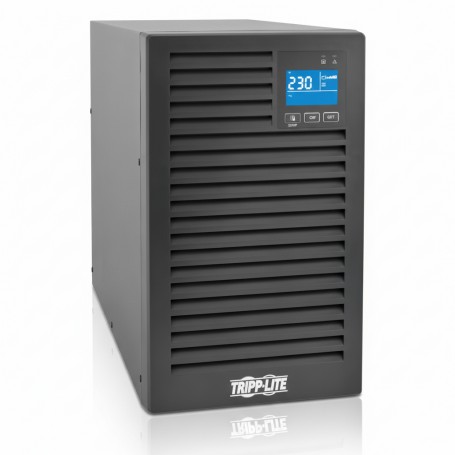

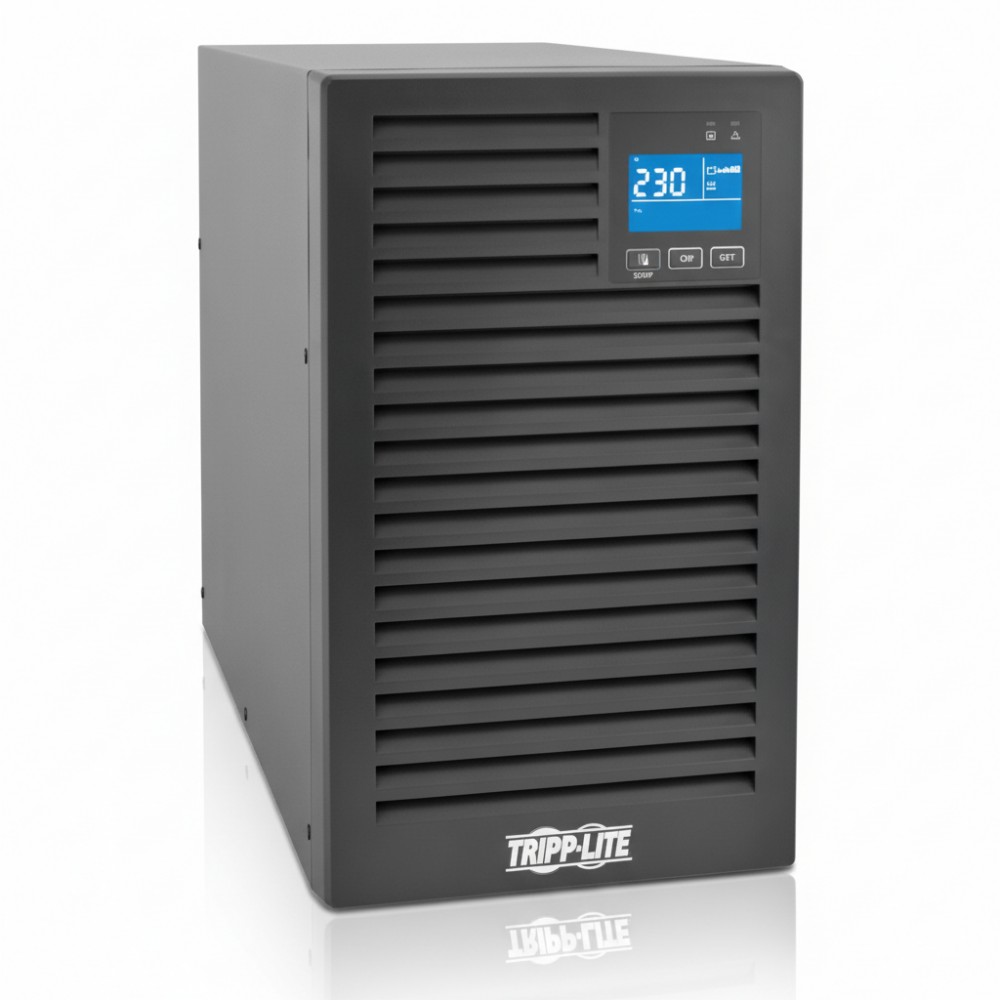

Eaton SUINT3000XLCD - Online Double-Conversion UPS
Overview :
The Eaton SUINT3000XLCD is a 3 kVA (2700 W) online, double-conversion UPS designed for IT infrastructure environments where continuous, regulated power output is required. It is intended for use by network engineers, system administrators and data-centre technicians to protect servers, storage arrays and telecom gear from blackouts, brownouts and line noise. The UPS provides fully regulated sine-wave AC output with ±2% voltage regulation in online mode and supports 230 V nominal systems (also 220 V/240 V) with a 0.9 power factor. Internally equipped with VRLA batteries, it delivers approximately 11.2 minutes runtime at half-load (1350 W) and 4.4 minutes at full load (2700 W), with support for external battery modules to extend runtime. It is a tower form factor unit suited to branch, server-room or small data-centre deployments and offers a front-panel LCD, USB/RS-232 ports and optional network-management cards for integration into monitoring or remote-management systems.
Key Features :
True on-line double-conversion with zero transfer time
High power factor (0.9) supports 2700 W output at rated 3000 VA
Built-in LCD display plus USB/RS-232 communications ports
Expandable runtime via external battery packs (72 V system)
±2% output voltage regulation in double-conversion mode
Specifications :
| Specification | Value |
|---|
| Brand | Eaton |
| Part Number | SUINT3000XLCD |
| Product Type | Online Double-Conversion UPS |
| Output Capacity (VA/W) | 3000 VA / 2700 W |
| Output Voltage Regulation (Line Mode) | ±2% |
| Power Factor | 0.9 |
| Input Voltage(s) | 220 V / 230 V / 240 V (factory default 230 V) |
| Rated Input Current | 14.6 A at 220 V; 14.0 A at 230 V; 13.4 A at 240 V |
| Runtime (Half Load) | 11.2 minutes (at ~1350 W) |
| Runtime (Full Load) | 4.4 minutes (at 2700 W) |
| Dimensions (H × W × D) | 12.8 in × 7.5 in × 14.2 in |
| Weight | 54.8 lbs |
| Output Receptacles | (6) C13 & (1) C19 |
| Input Connection | C20 inlet |
| Operating Temperature | 32 °F to 104 °F (0 °C to 40 °C) |
