Detailed Specifications

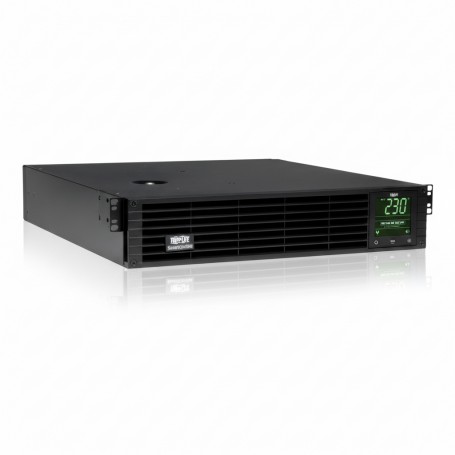

Eaton SMX2200XLRT2UN - Line-Interactive UPS 230 V 1920 W
Overview :
The Eaton SMX2200XLRT2UN is a 2U rack-mount line-interactive uninterruptible power supply (UPS) designed for enterprise IT, network, and telecom infrastructure. It delivers 2.2 kVA (2200 VA) / 1.92 kW output at 230 V nominal, supporting protection against blackouts, brownouts, overvoltages and line noise. The unit features automatic voltage regulation (AVR) which maintains output voltage within specification even when input drops as low as 158 V or rises to 278 V. It includes a hot-swappable VRLA battery set giving approximately 5 minutes run time at full load or about 11.9 minutes at half load. This model is especially suited for 19-inch 4-post rack installations in data centres, wiring closets, branch offices or edge sites. It also includes a built-in network management card (WEBCARDLX) and USB/DB9 communications ports, enabling remote monitoring, configuration and shutdown via management software.
Key Features :
2200 VA / 1920 W output rating at 230 V nominal
Automatic Voltage Regulation (AVR) corrects input down to 158 V and up to 278 V
Eight C13 outlets plus two switchable load banks for controlled rebooting
Built-in WEBCARDLX network interface with remote monitoring capability
Hot-swappable internal battery cartridge and external battery pack support
Specifications
| Specification | Value |
|---|
| Brand | Eaton |
| Part Number | SMX2200XLRT2UN |
| Product Type | Line-interactive UPS (230 V) |
| Output Capacity (VA) | 2200 VA |
| Output Capacity (Watts) | 1920 W |
| Input Voltage (Nominal) | 230 V AC |
| Output Voltage Regulation (Line Mode) | -15 % / +6 % |
| Output Voltage Regulation (Battery Mode) | ±5 % |
| Runtime (Full Load) | 5 minutes @ 1920 W |
| Runtime (Half Load) | 11.9 minutes @ 960 W |
| Unit Weight | 68.75 lbs |
| Dimensions (W × D × H) | 17.50 in × 19.50 in × 3.50 in |
| AC Noise / Surge Protection (Joules) | 350 J |
| Efficiency (100 % Load) | 98 % |
| Operating Temperature Range | 32 °F to 104 °F (0 °C to 40 °C) |
