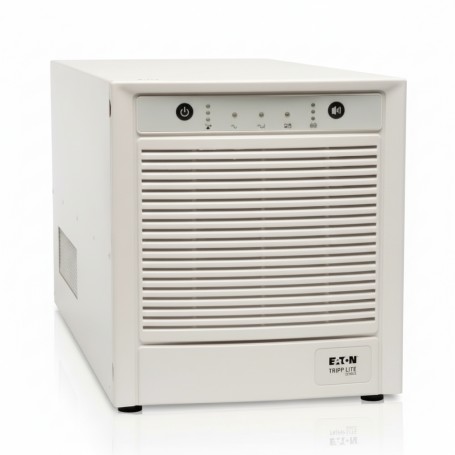

Eaton SMART2500XLHG – Medical-Grade Line-Interactive UPS

Overview :

The Eaton SMART2500XLHG is a tower-type, medical-grade line-interactive UPS unit designed for engineers procuring reliable backup power for sensitive equipment in patient-care zones. It supports a full load of 1920 W (2200 VA) and meets the UL 60601-1 3rd edition standard for use in clinical and diagnostic environments. The unit includes full line isolation (via an internal low-impedance isolation transformer with Faraday shielding) to reduce cumulative leakage current below 100 µA, making it suitable for hospital or medical-vicinity installations. With automatic voltage regulation (AVR) correcting input voltage from 83 V to 143 V back to usable 120 V without switching to battery, it addresses brown-outs and over-voltages while preserving runtime. Installed typically in medical diagnostic labs, imaging suites or critical care equipment racks, this UPS integrates via USB, DB9 serial and optional SNMP/Web-card interfaces for monitoring and orderly shutdown of connected loads.

Key Features :

• Line-interactive topology with AVR correcting 83 V–143 V input

• Full isolation transformer with Faraday shield limiting leakage < 100 µA

• 2200 VA / 1920 W load capacity for medical-grade equipment

• USB + DB9 communication ports plus optional SNMP/Web module
