Detailed Specifications

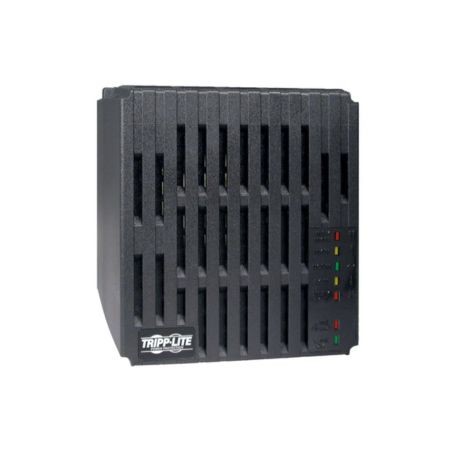

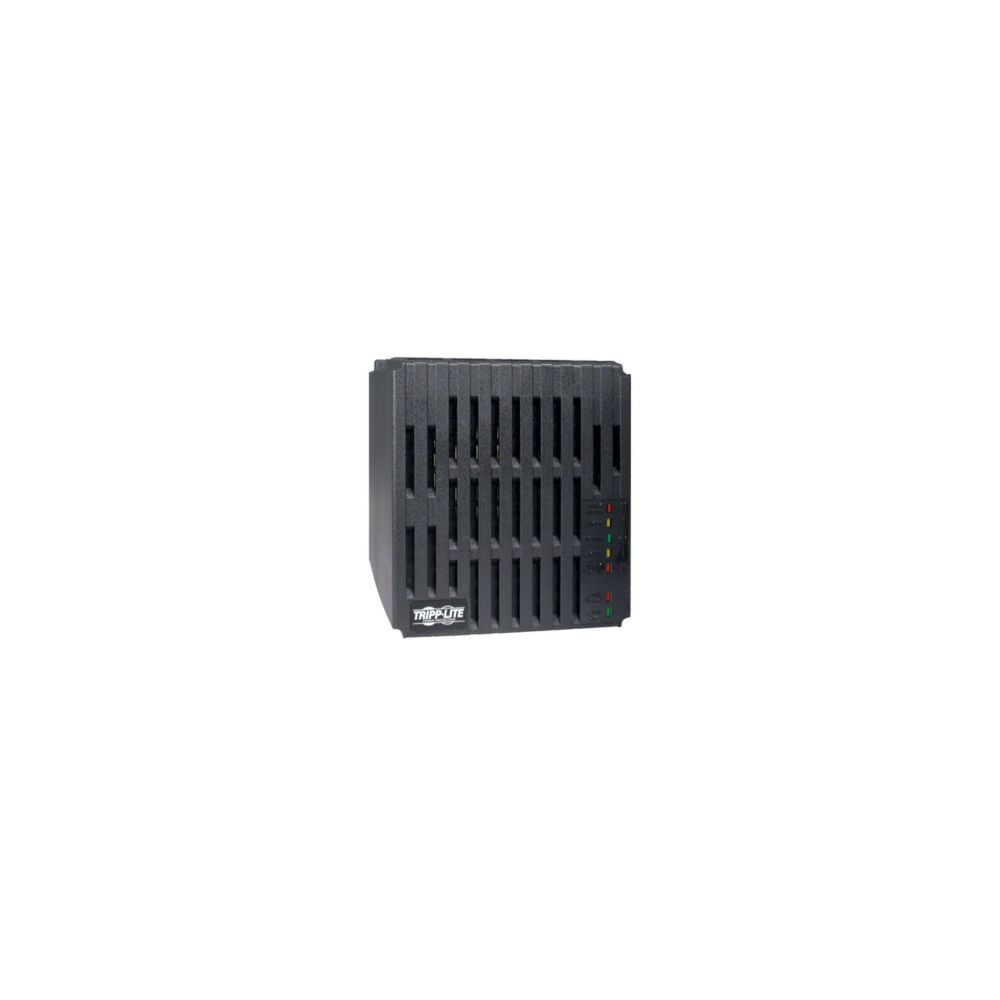

Eaton LC2400 2400W 120V Power Line Conditioner Regulator
Overview:
The Eaton Tripp Lite Series LC2400 is a heavy-duty 2400-watt automatic voltage regulator (AVR) line conditioner engineered to protect high-draw network equipment, servers, and lab instruments from brownouts and overvoltage conditions. Designed for data center facility engineers, IT infrastructure teams, and industrial operators, it continuously corrects unstable AC voltage levels without switching to battery power, extending connected device lifespans.
Featuring automatic transformer step-up and step-down boost/buck circuitry, the LC2400 maintains a steady nominal 120V AC output across wide utility input fluctuations from 89V to 147V. Built-in 1440-joule surge suppression paired with ISOBAR-grade EMI/RFI noise filtering eliminates electrical line noise, transients, and high-frequency interference before reaching sensitive equipment components.
Deployable in server rooms, industrial control cabinets, audiovisual racks, and medical diagnostic bays. Connects directly to high-capacity 20A branch circuits using its heavy-duty NEMA 5-20P input plug. Do NOT connect to standard 15A NEMA 5-15R outlets or use with DC power sources.
Key Features :
2400W / 20A continuous power output handles demanding server loads.
Automatic voltage regulation corrects brownouts and high voltage automatically.
1440-joule AC surge suppression shields against high-energy transients.
6 NEMA receptacles (2x 5-20R and 4x 5-15R) support diverse gear plugs.
Diagnostic LEDs continuously monitor incoming line voltage status.
Specifications :
| Parameter | Specification |
| Brand | Eaton |
| Part Number | LC2400 |
| Product Type | Line Conditioner |
| Output Capacity | 2400 Watts / 20 Amps |
| Nominal Output | 120 VAC (60 Hz) |
| Input Voltage Correction Range | 89 VAC to 147 VAC |
| AC Suppression Joule Rating | 1440 Joules |
| Output Receptacles | 6 (2x NEMA 5-20R, 4x NEMA 5-15R) |
| Input Plug Type | NEMA 5-20P |
| Input Cord Length | 6 ft. (1.83 m) |
| Front Panel Status Indicators | 7 LEDs (Very Low, Low, Normal, High, Very High, Line OK, Fault) |
| Housing Material | Heavy-duty high-impact polymeric chassis |
| Standards Compliance | UL1012, cUL, TAA Compliant, RoHS |
