Detailed Specifications

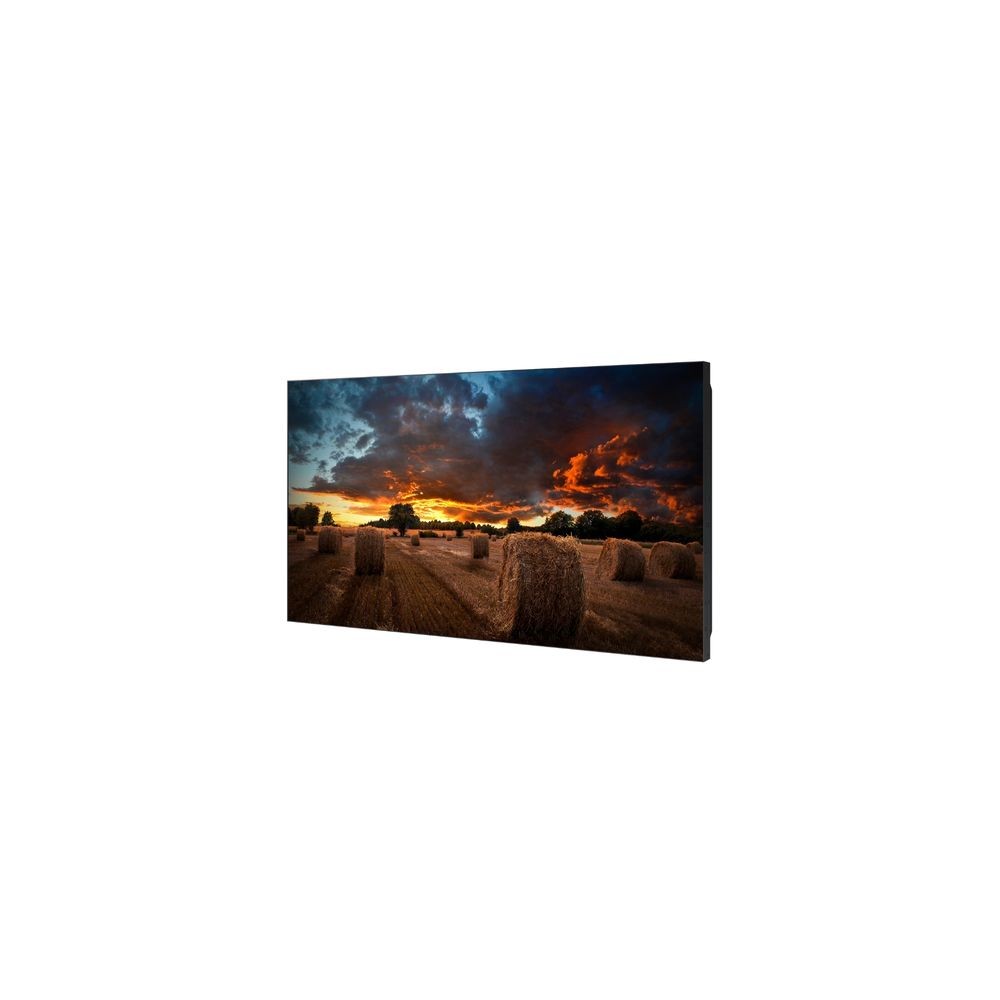

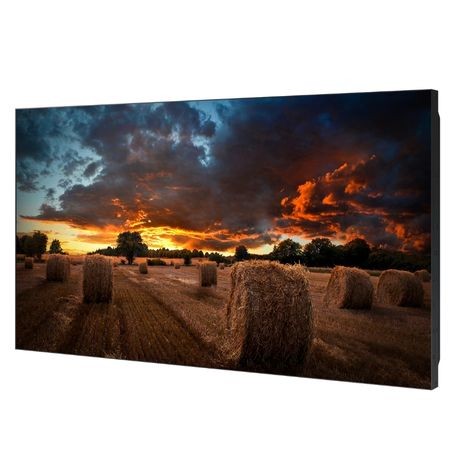

Samsung VM46B-U 46 Video Wall Display with 500 nits Brightness
Overview :
The Samsung VM46B-U is a 46-inch professional video wall display engineered for continuous 24/7 operation in control rooms, retail signage, corporate lobbies, and command centers. It features a Full HD (1920 × 1080) panel with Direct LED backlight and 500 cd/m² brightness for uniform visibility in indoor environments.
Ultra-narrow bezels (≈3.5 mm B-to-B) minimize gaps between adjacent modules, enabling nearly seamless multi-screen video wall installations. Integrated daisy-chain support simplifies signal distribution across up to 5×5 arrays without external splitters.
This display is designed for professional AV deployments; it is not a consumer TV and lacks integrated TV tuners. Pair with commercial signage players and mounting systems suited to continuous operation.
Key Features :
• 46" Full HD panel for detailed signage content
• 500 cd/m² brightness for indoor viewing environments
• Ultra-narrow bezel for seamless tiled video walls
• 24/7 rated continuous professional operation
• Integrated daisy-chain signal pass-through
Specifications :
| Specification | Details |
|---|
| Brand | Samsung |
| Part Number | VM46B-U |
| Product Type | Ultra-Narrow Bezel Video Wall Display |
| Display Size | 46 Inch |
| Resolution | 1920 × 1080 (Full HD) |
| Panel Type | IPS / Direct LED |
| Brightness (Typ) | 500 cd/m² |
| Contrast Ratio | ~1200:1 |
| Viewing Angle | 178° / 178° |
| Bezel Width | ~3.5 mm (B-to-B) |
| Operating Time | 24/7 continuous |
| Connectivity | HDMI, DisplayPort, DVI, Audio, RS232C, Ethernet |
| Daisy Chain | Supported up to 5×5 |
| Pixel Pitch | ~0.53 × 0.53 mm |
