Detailed Specifications

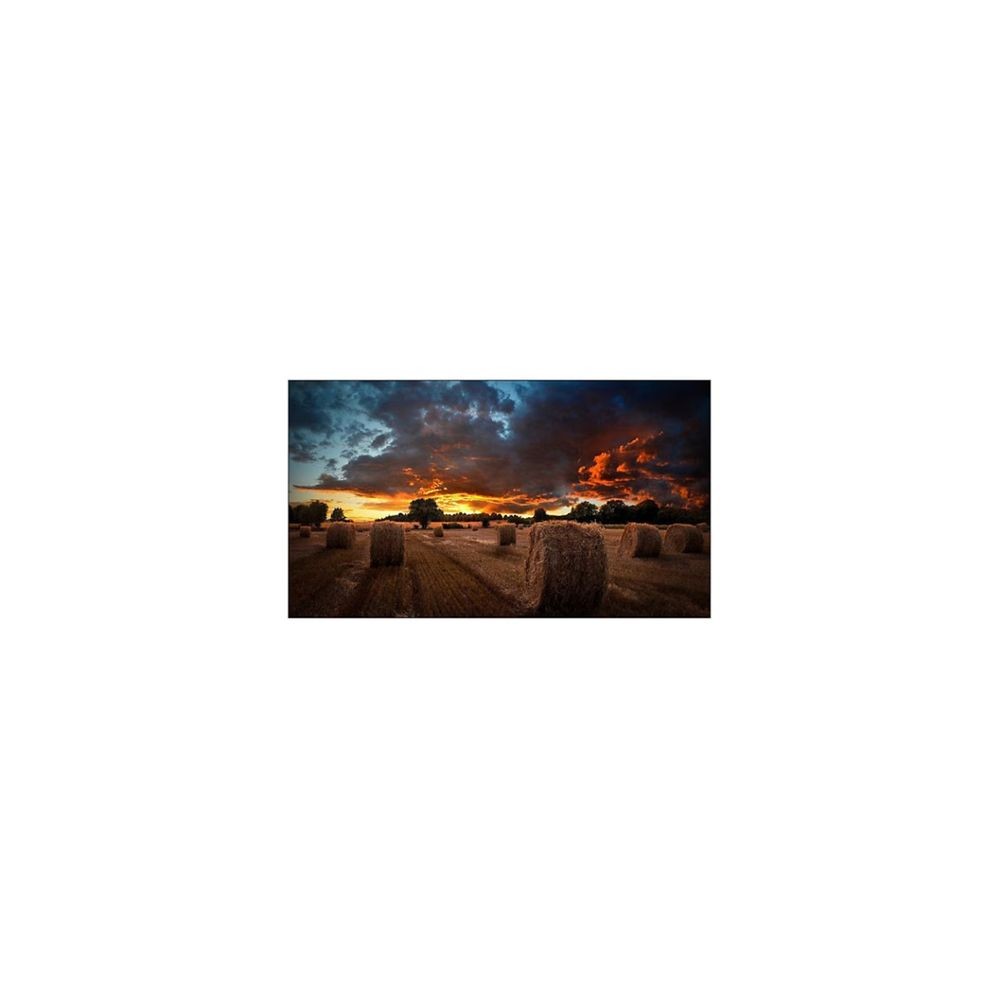

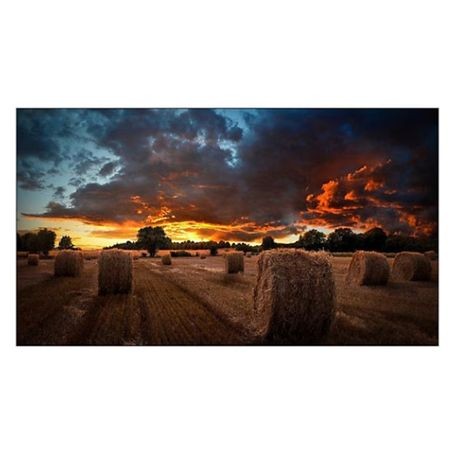

Samsung VM55B-U 55 Ultra-Narrow Bezel Video Wall Display
Overview
The Samsung VM55B-U is a 55-inch commercial video wall panel engineered for seamless multi-screen video wall installations in control rooms, retail environments, corporate lobbies, and command centers. It features ultra-narrow 3.5 mm (B-to-B) bezels that minimize gaps between adjacent panels, creating a nearly continuous large-format display surface.
Built with an IPS LCD panel and Full HD (1920 × 1080) resolution, the VM55B-U delivers consistent color and wide 178° viewing angles across each module. Typical brightness is ~500 nits with a 1,200:1 contrast ratio, making it suitable for indoor commercial signage and video wall applications where sustained visibility and uniformity are required.
This display supports 24/7 operation and is designed for professional AV environments; it is not intended as a consumer TV or desktop monitor. The ultra-narrow bezel design enables scalable video wall configurations (e.g., 2×2, 3×3) with minimal visual interruption.
Key Features :
• 55" Full HD video wall panel for scalable walls
• Ultra-narrow 3.5 mm bezel for seamless tiling
• IPS panel with wide 178° viewing angles
• 500 nits brightness for indoor visibility
• 24/7 commercial operation rating
Specifications :
| Specification | Details |
|---|
| Brand | Samsung |
| Part Number | VM55B-U |
| Product Type | Ultra-Narrow Bezel Video Wall Display |
| Display Size | 55 Inch |
| Resolution | 1920 × 1080 (Full HD) |
| Panel Type | IPS LCD |
| Brightness (Typ) | 500 nits |
| Contrast Ratio | 1,200:1 |
| Viewing Angle | 178° / 178° |
| Response Time | 8 ms |
| Bezel Width | 3.5 mm (B-to-B) |
| Pixel Pitch | 0.63 × 0.63 mm |
| Operation | 24/7 |
| Mounting | VESA compatible |
