Detailed Specifications

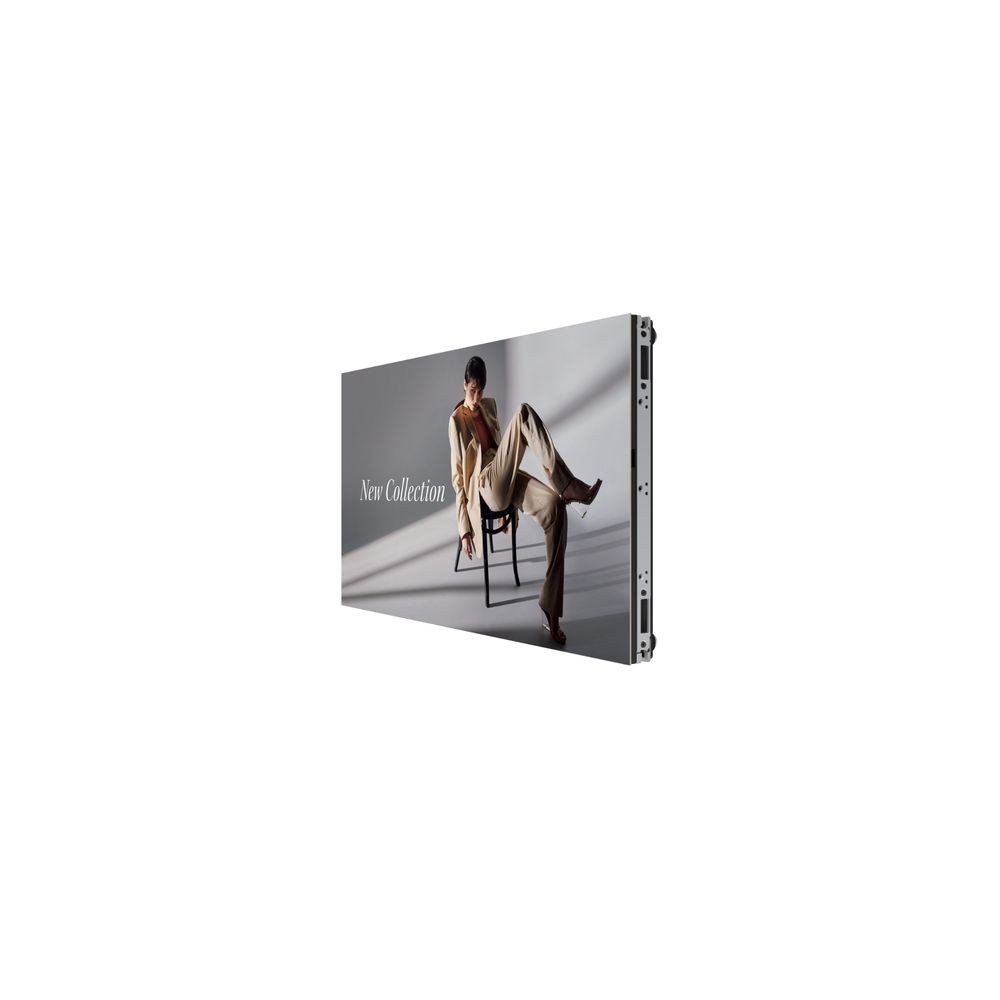

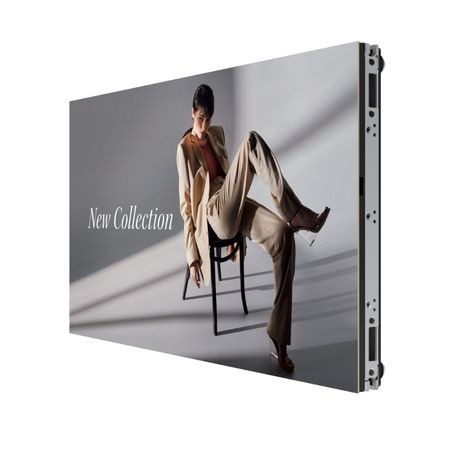

Samsung MM012F LED Video Wall Panel
Overview :
The Samsung MM012F is an indoor The Wall mainstream LED video wall module with a 1.25 mm pixel pitch, engineered for high-resolution digital signage applications in commercial environments. It's used in corporate lobbies, control rooms, retail spaces, and broadcast walls where modular LED panels deliver scalable, high-contrast imagery.
This display panel delivers fine pixel density with a 1.25 mm pitch, enabling detailed visuals at close viewing distances. The LED module supports a brightness level suitable for indoor spaces and includes Samsung's picture enhancement technology for consistent color and contrast across large tiled installations.
Deployment is typical in modular video wall systems where multiple panels assemble into large-format displays. It is not suitable as a standalone signage or kiosk display without proper video wall controller and frame infrastructure, and is not designed for outdoor sunlight-exposed environments.
Key Features :
- 1.25 mm pixel pitch for high-density imaging
- Designed for indoor modular video walls
- Bright LED panel with wide viewing angles
- True Black & AI picture enhancement tech
- Low power design for continuous operation
Specifications :
| Specification | Details |
|---|
| Brand | Samsung |
| Part Number | MM012F |
| Product Type | LED Video Wall Panel |
| Pixel Pitch | 1.25 mm |
| Module Resolution | 480 × 270 (per panel) |
| Brightness | ~600 cd/m² |
| Viewing Angle | ~160° |
| Technology | LED with True Black & AI Picture |
| Power Consumption | ~458 W/m² max |
| Usage | Indoor video wall installations |
| Compliance | EMC Class A, Safety 60950-1/62368-1 |
| Weight | ~11.24 lbs (module) |
| Category | Samsung The Wall LED |
