Overview

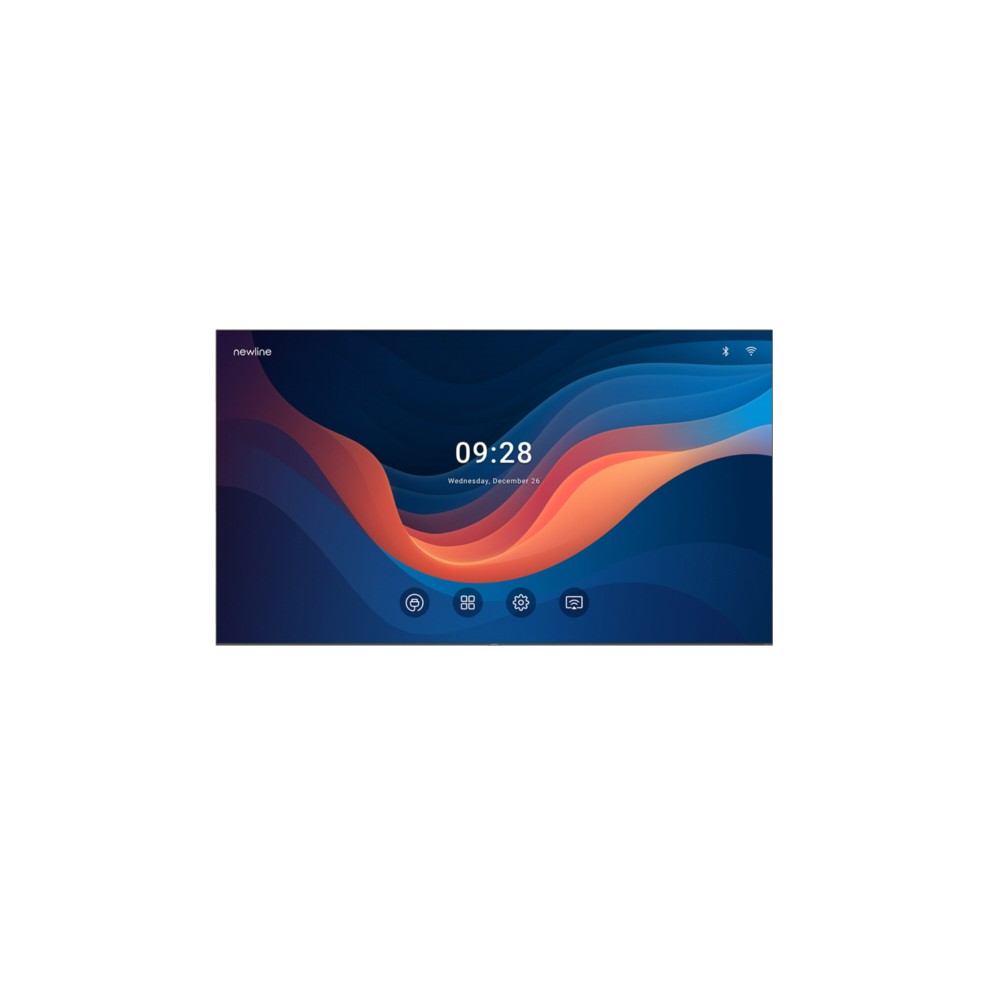

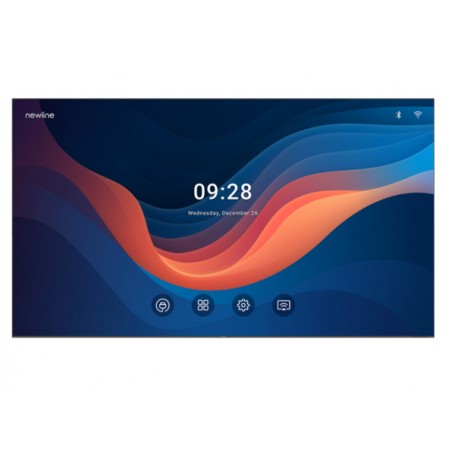

The Newline DV One+ DV-13524-PLUS is a 135-inch all-in-one direct-view LED display designed for large-format visual communication in corporate, educational, public, and commercial environments. It combines a Full HD display panel, an integrated Android 13 computing platform, and connectivity for external video sources and network-based management.
Its large 16:9 display surface supports presentations, digital signage, announcements, training sessions, and shared visual content in spaces where a conventional television or smaller commercial monitor may not provide sufficient viewing area.
Display Technology and Image Quality
The display uses direct-view LED technology with a 1.56 mm pixel pitch and a native resolution of 1920 × 1080. Its 550 cd/m² brightness and 6000:1 contrast ratio support clear presentation of text, graphics, and video in appropriately configured indoor environments.
A 3840 Hz refresh rate, 160-degree viewing angle, and support for 16.7 million colours contribute to smooth visual presentation and viewing from different positions within a room. The panel uses Glue-on-Board (GOB) LED protection technology.
Integrated Android Platform
The built-in Android 13 system uses an Amlogic A311D2 chipset with an eight-core CPU configuration and 4GB RAM. Its 32GB internal storage provides space for supported applications and system data. This integrated platform allows the display to run compatible applications without requiring a separate computer for every use case.
Connectivity and Remote Management
The DV One+ provides HDMI inputs for external video equipment, an HDMI output for supported display distribution, USB connections for compatible peripherals, and network interfaces for management and integration.
- HDMI inputs for compatible computers and audiovisual equipment.
- HDMI output supporting up to 4K at 60Hz according to the product specification.
- USB Type-A and USB Type-B connections for supported peripherals and functions.
- USB-C with 65W Power Delivery on the side connection for compatible devices.
- RJ45 Ethernet, Wi-Fi 6, and RS-232 connectivity.
- Wake-on-LAN and Wake-on-Wi-Fi capabilities for supported remote power-on workflows.
Newline Display Management support enables compatible network-based monitoring and management. IP control and RS-232 provide additional integration options for supported control systems.
Key Features
- 135-inch direct-view LED panel: Large-format display for presentations, signage, and shared visual content.
- Full HD resolution: Native 1920 × 1080 resolution with a 1.56 mm pixel pitch.
- Integrated Android 13: Embedded computing platform with 4GB RAM and 32GB internal storage.
- Remote control and management: RS-232, IP control, Wake-on-LAN, and Wake-on-Wi-Fi support.
- GOB LED protection: Glue-on-Board technology incorporated into the display panel construction.
Applications
- Corporate meeting spaces and presentation environments.
- Lecture halls, training facilities, and educational institutions.
- Retail, reception, and commercial digital signage installations.
- Media centres and shared information displays.
- Large venues requiring centrally managed visual communication.
Installation and Deployment
This is a large-format commercial LED system rather than a conventional lightweight television. Installation planning should account for the display's physical dimensions, structural support, service access, power requirements, and the location of connected audiovisual equipment.
The product specification identifies a mounting frame or mobile stand as installation options for the 135-inch model. Confirm the mounting solution, structural suitability, and accessory contents for the exact order before installation.
DC Supplies Product Note
For projects involving remote operation, confirm that the site's Ethernet or Wi-Fi infrastructure, control software, and automation system support the intended management functions. Also verify the installation method before ordering: the 135-inch display is a substantial fixed installation unless a suitable compatible mobile stand is selected separately or confirmed as included.
Specifications
| Brand | Newline Interactive |
|---|---|
| Part Number / MPN | DV-13524-PLUS |
| Product Type | All-in-one direct-view LED display |
| Product Series | DV One+ |
| Screen Size | 135 inches |
| Display Technology | Direct LED |
| LED Protection Technology | Glue-on-Board (GOB) |
| Display Resolution | 1920 × 1080 Full HD |
| Aspect Ratio | 16:9 |
| Pixel Pitch | 1.56 mm |
| Brightness | 550 cd/m² |
| Contrast Ratio | 6000:1 |
| Viewing Angle | 160° |
| Refresh Rate | 3840 Hz |
| Colour Support | 16.7 million colours |
| Display Area | 3000 × 1687.5 mm |
| Operating System | Android 13 |
| Chipset | Amlogic A311D2 |
| CPU | 8-core configuration: 4 × Cortex-A73 and 4 × Cortex-A53, up to 2.2GHz |
| Graphics Processor | ARM Mali-G52 |
| System Memory | 4GB RAM |
| Internal Storage | 32GB |
| Wireless Connectivity | Wi-Fi 6 |
| Video Inputs | HDMI inputs, including a side HDMI input supporting up to 4K at 30Hz |
| Video Output | HDMI output supporting up to 4K at 60Hz |
| USB Connectivity | USB Type-A 3.0, USB Type-B, USB-C with 65W Power Delivery |
| Network Interface | RJ45 Ethernet |
| Control Interface | RS-232 and IP control |
| Remote Management | Newline Display Management support |
| Remote Wake Functions | Wake-on-LAN and Wake-on-Wi-Fi |
| Audio Output | Audio line-out and SPDIF |
| Integrated Speaker | Front-mounted, 1 × 5W maximum output according to the manufacturer specification |
| Typical Power Consumption | 580W in standard mode |
| Standby Power Consumption | 0.5W |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 10% to 90%, non-condensing |
| Product Dimensions (W × H × D) | 3009 × 1704 × 71 mm |
| Net Product Weight | 148 kg |
Frequently Asked Questions
Can the display operate without an external computer?
Yes. The integrated Android 13 platform supports compatible applications and provides an embedded computing environment. An external computer may still be needed for workflows requiring specific desktop operating systems or specialist software.
Can the display be managed remotely?
Yes. The supported management and control features include Newline Display Management, IP control, RS-232, Wake-on-LAN, and Wake-on-Wi-Fi. Availability depends on the network configuration and compatible control software.
What should be considered before installation?
Plan the mounting structure, access for maintenance, power supply, signal routing, and service clearances. Verify that the selected frame or mobile stand is compatible with this 135-inch model and suitable for the installation environment.
Can external audiovisual equipment be connected?
Yes. HDMI inputs support compatible video sources, while USB, Ethernet, RS-232, and audio outputs support suitable peripheral and system integrations. Confirm interface requirements and supported signal formats for the devices being connected.
Does the display support 4K input?
The product specification lists a side HDMI input supporting up to 4K at 30Hz and an HDMI output supporting up to 4K at 60Hz. The display's native panel resolution remains Full HD at 1920 × 1080.
Is a mounting stand included?
Mounting frame and mobile stand options are identified for the 135-inch model. The actual included accessories depend on the supplied package and purchase configuration, so confirm the order contents before installation.
